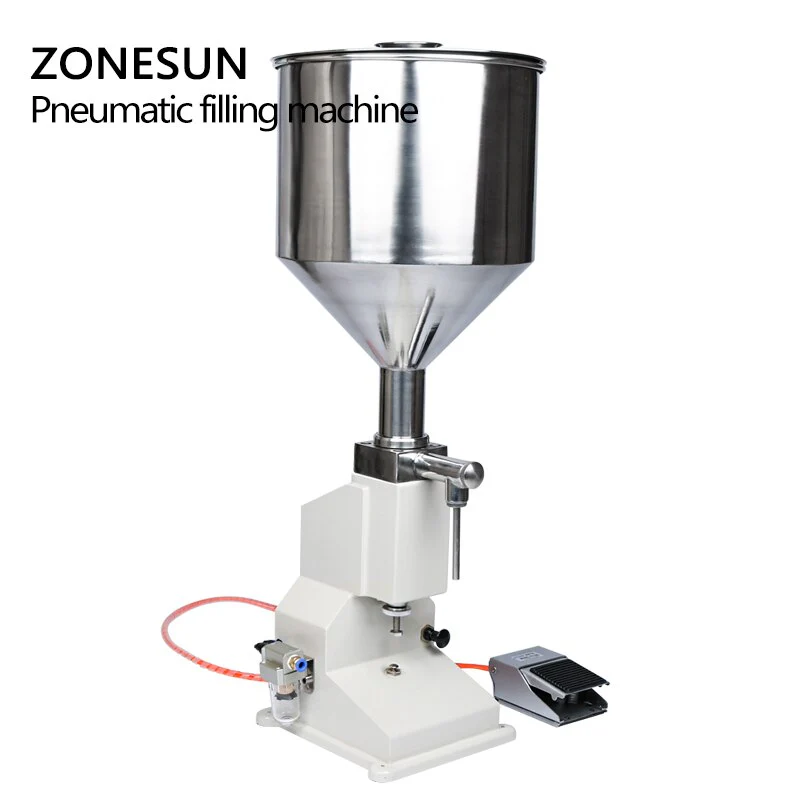

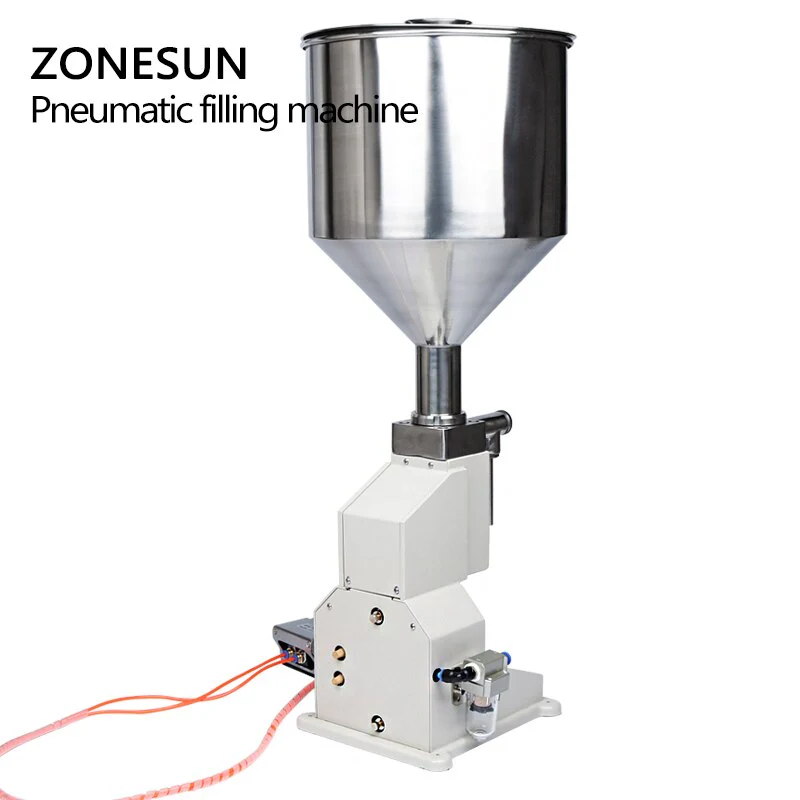

ZONESUN ZS-A02 Manual Pneumatic Paste & Liquid Filling Machine

(Upgprade based on A03)
A02 stainless steel Manual paste liquid filling machine,
small bottle handle operate filling machine.
5-50ml,tank capacity 10kg

Description

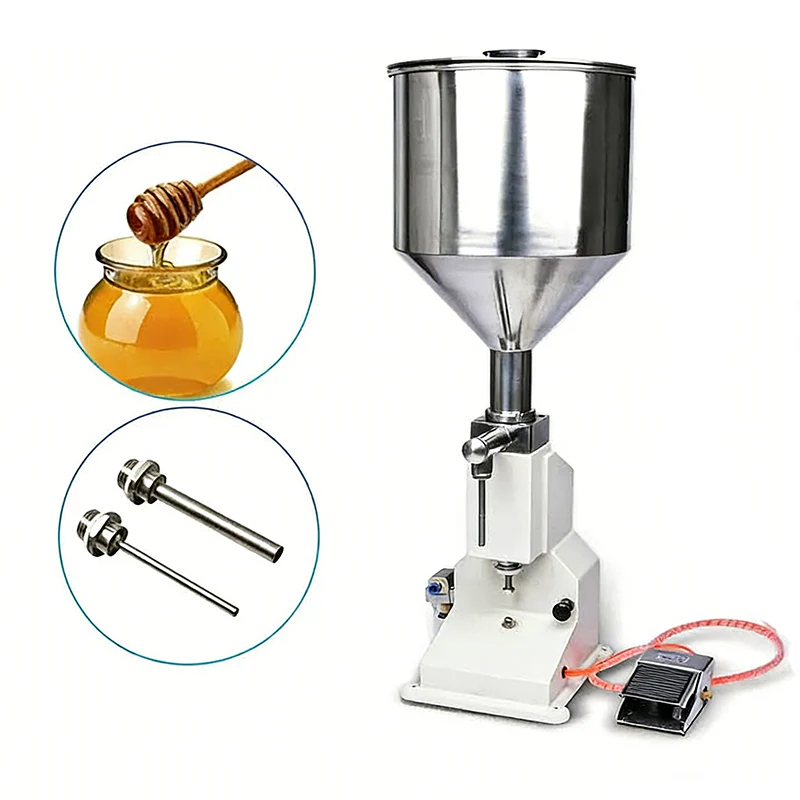

A02 type manual paste and liquid filler adopt piston structure, it can fill paste and liquid quantified from 5-50ml. The filler can fill liquid medicine , fluid food,lubricating oil, shampoo, cosmetic and so on.
It used widely in the field of pharmaceutical,cosmetic, food, pesticide and special field.It can also fill into tube sealed
The filler is ideal paste and liquid filler

Feature
This machine structure is simple and reasonable, manual easy operation, without any energy.
Equipped with filling quantity adjusting device knob, quantitative filling, quantitative filling and filling speed all can manually control.
The manual filling machine is specially designed by our factory for medium or small size enterprises,laboratory,
hospital or beauty parlor in daily use chemical section. Its configuration is compact,acts agility and easy to use,
all the parts which dip in the material are made of stainless steel

Specification
Model:A02 Manual paste-liquid filling machine
Material of machine:Stainless steel 304
Filling Range:5-50 ml/10-100ml
Filling accurate: ±0.2-1ml
Air compressor request 0.4-0.6Mpa , small air compressor is okay
Capacity of tank:10kg
Filling speed: 20-60times/mins based on water operate
Net weight:11 kg
Gross weight:13kg
Machine size:270x270x700 mm
Packing size:340x360x790 mm

NOTE

Air compressor required, Sold separately.
