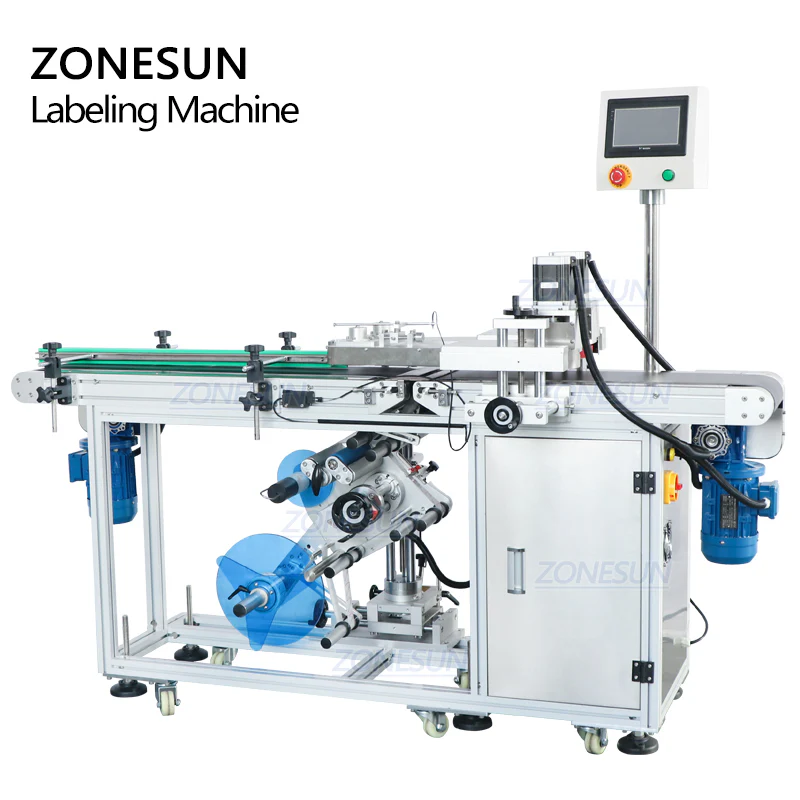

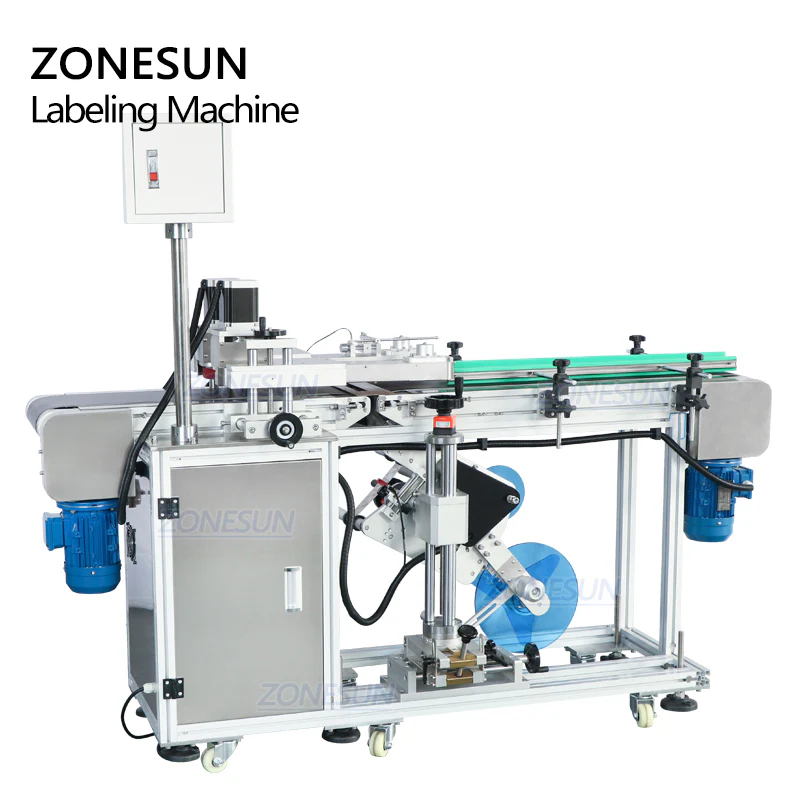

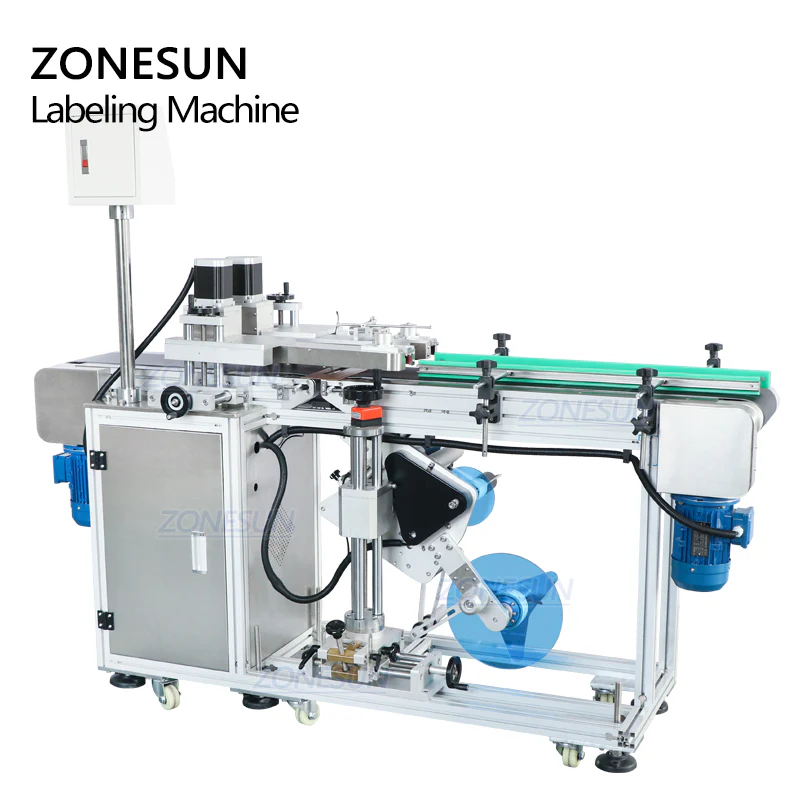

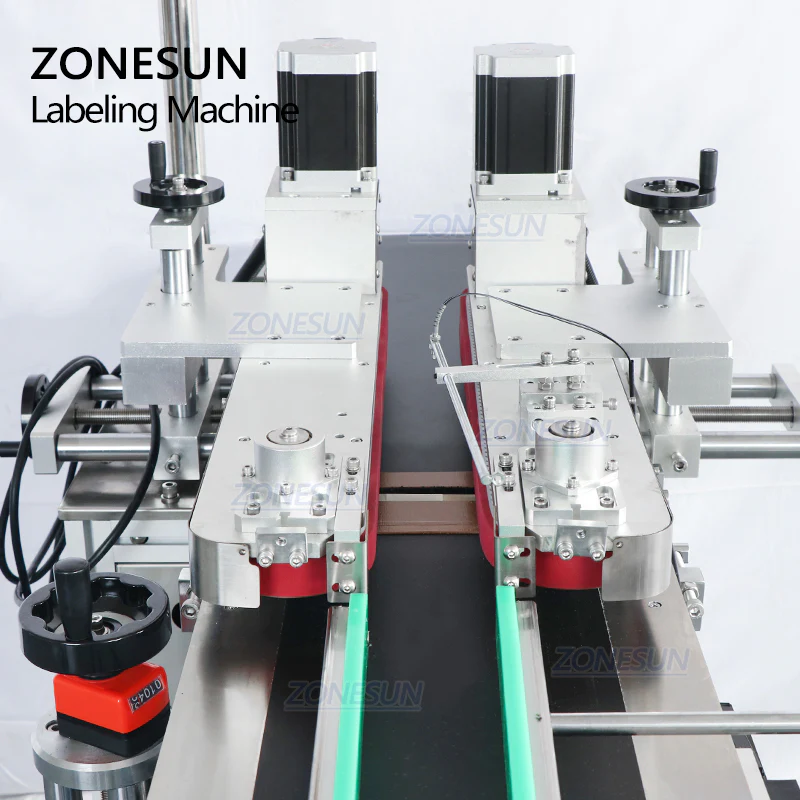

ZONESUN ZS-TB125 Bottom Labeling Machine for Bottles & Boxes

DESCRIPTION

The ZS-TB125 is a precision labeling machine designed for applying labels to the bottom of bottles and boxes. Ideal for flat or slightly curved surfaces, it features a PLC control panel for easy operation and integration with filling and capping systems. Perfect for cosmetics, food, and daily chemical packaging lines, this machine boosts productivity and labeling accuracy.

Item Specification

• Model：ZS-TB125 Labeling Machine

• Power Supply：AC 220V, 50Hz / 60Hz, 2000W

• Labeling Capacity：25–150 bottles/min (depends on bottle size)

• Labeling Accuracy：±1.0 mm

• Suitable Product Size Approx.：40–400 mm × 40–100 mm × 30–100 mm (L×W×H)

• Label Size：(L)6–250 mm × (W)20–160 mm

• Roll Inside Diameter：φ76 mm

• Roll Outside Diameter：φ280 mm

• Conveyor Size：200 mm × 1900 mm (W)

• Machine Size Approx.：1900 × 800 × 1550 mm (L×W×H)

• Machine Weight Approx.：217 kg

• Packing Size Approx.：2050 × 950 × 1715 mm (L×W×H)

• Package Weight Approx.：315.5 kg
