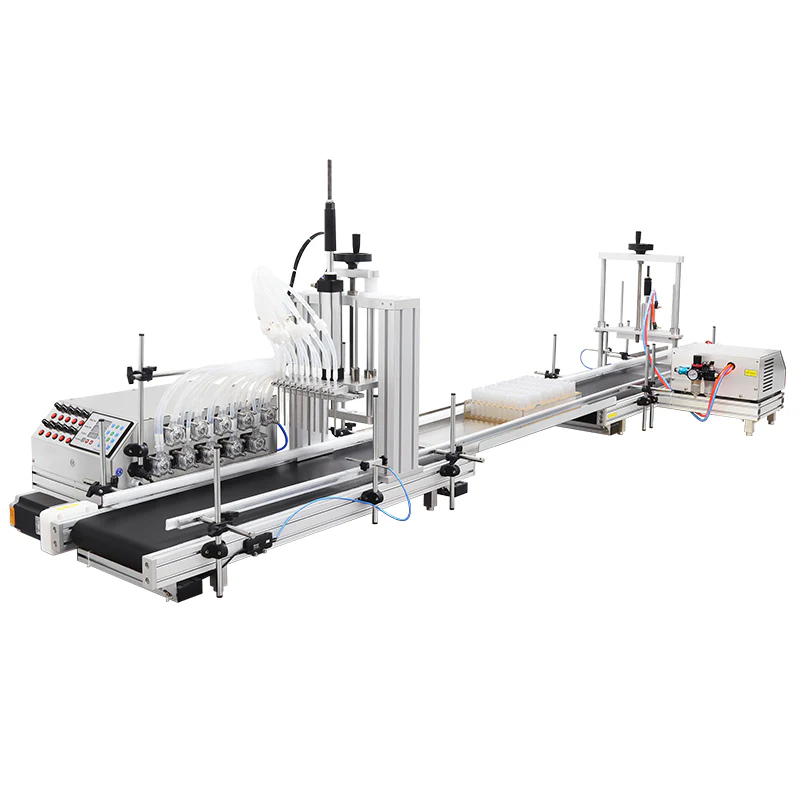

ZONESUN ZS-FYG01 10-Nozzle Peristaltic Filling and Capping Machine

The ZS-FYG01 is a compact, high-efficiency filling and capping system designed for small spray bottles. Featuring 10 diving nozzles and a peristaltic pump, it ensures precise, hygienic liquid dispensing. Its tabletop design saves space while delivering reliable performance for cosmetic, pharmaceutical, and personal care production lines.

ZONESUN Automatic Liquid Filling Machine – Technical Specifications
Parameter Specification
Power Supply AC 110V / 220V, 50–60Hz, 60W × 10

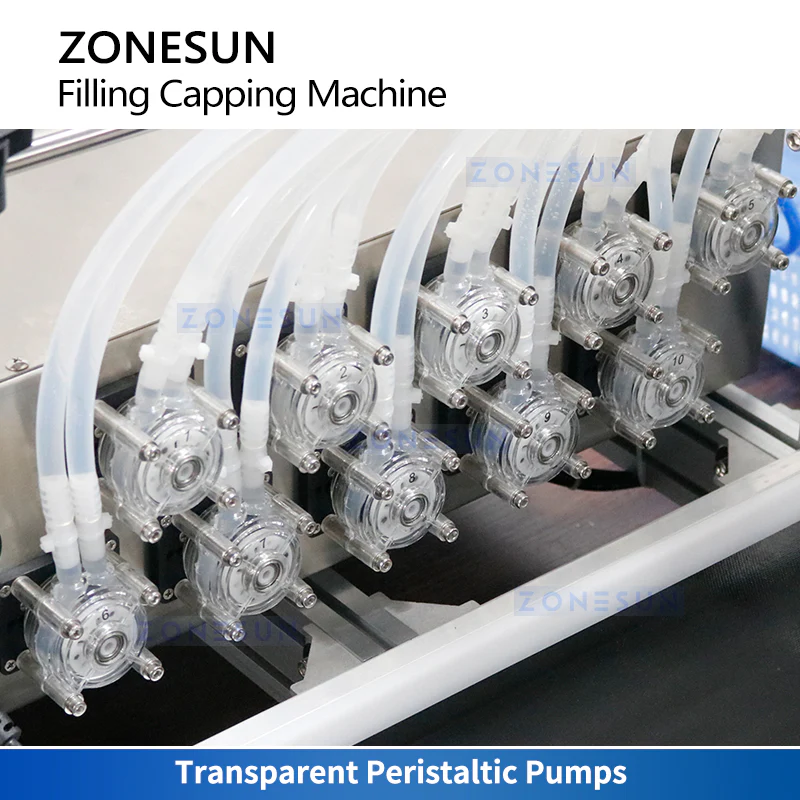

Filling Pump Peristaltic Pump
Filling Range ≤50ml
Max Flow Rate 650ml/min per nozzle (based on water)
Filling Nozzles 1–10 (Customizable)
Working Speed Approx. 70–90 pcs/min (based on 50ml water)
Filling Accuracy ≤±1% (for water)
Filling Nozzle Diameter 4mm
Delay Range 0.01–999.9 seconds
Conveyor Size 1080 × 350 mm (L × W)
Machine Size Approx. 380 × 490 × 300 mm
Net Weight Approx. 38 kg

ZONESUN Automatic Capping Machine – Technical Specifications
Parameter Specification
Voltage 220V / 110V, 50–60Hz
Power 70W
Capping Speed Approx. 160 pcs/min (depends on product and cap size)
Suitable Product Size Customizable
Suitable Cap Size Customizable
Package Size Approx. 1117 × 790 × 355 mm
Package Weight Approx. 68 kg
