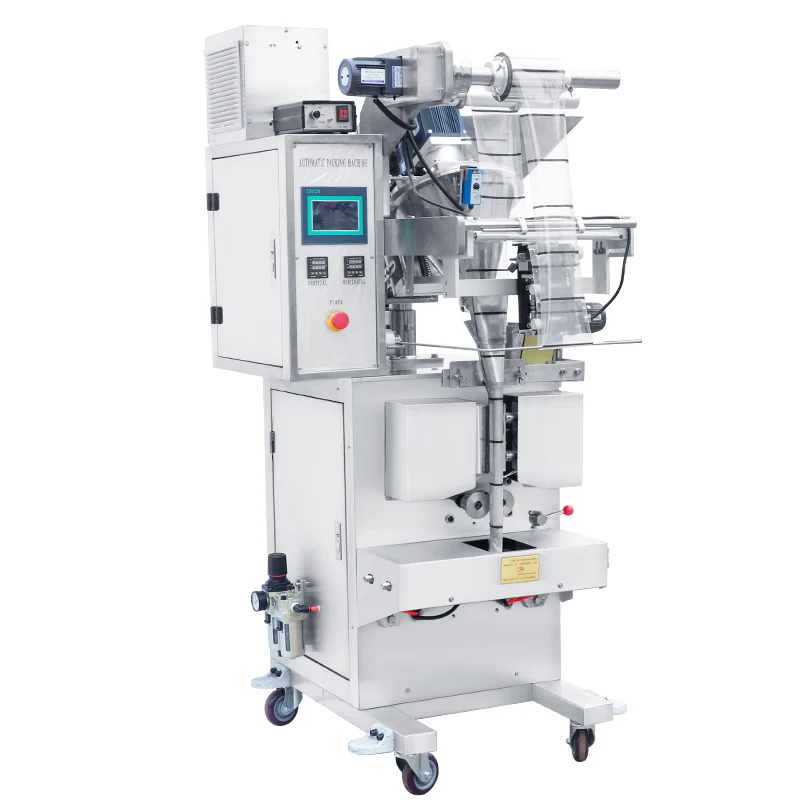

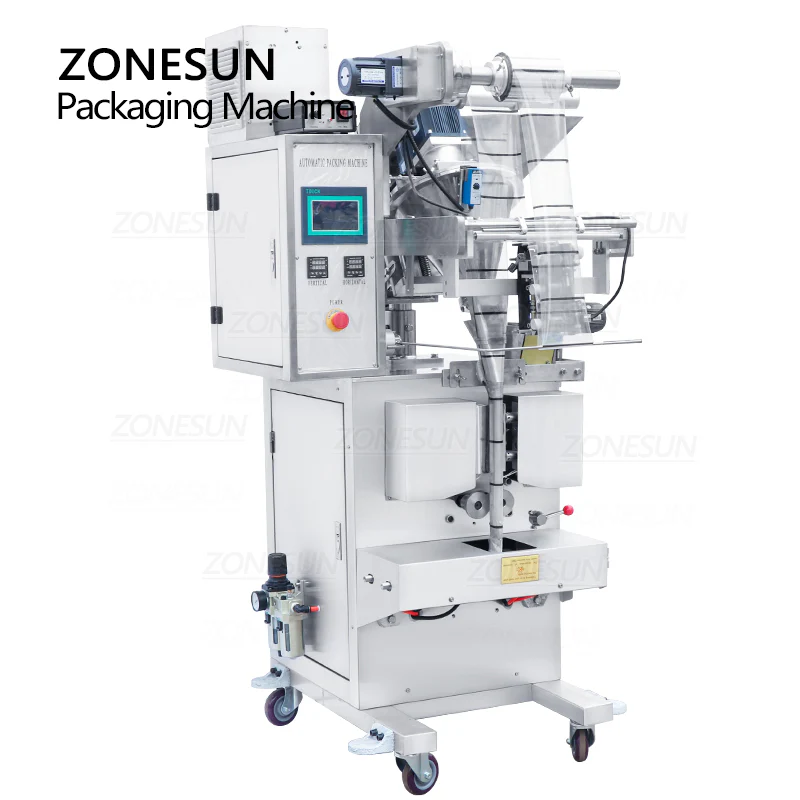

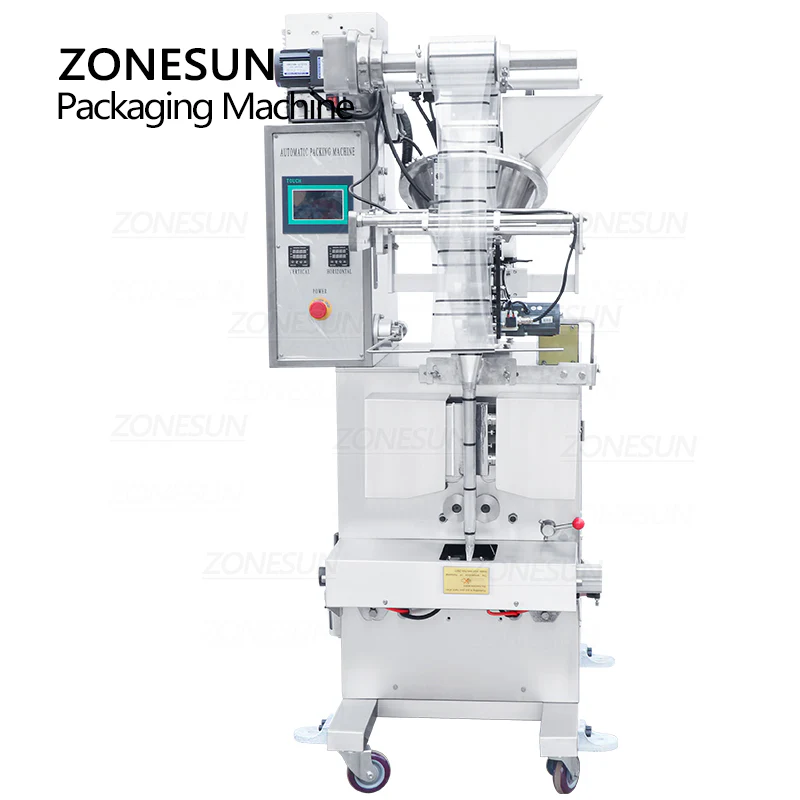

The ZONESUN ZS-F100 Automatic Powder Bag Filling and Sealing Machine is a versatile packaging solution that can be customized for back seal, three-side seal, or four-side seal packaging. It features a microcomputer control system with an intuitive display for real-time operation data, and a photoelectric control device to ensure accurate bag pattern alignment. This machine can automatically complete bag making, filling, sealing, and coding in one continuous process. Ideal for powdered products such as milk powder, starch, medicinal powder, seasonings, and animal feed, it delivers high efficiency, consistent sealing quality, and reliable performance for various production needs.

Parameter

Model	ZS-F100	ZS-F300
Bag length	50-150mm	50-300mm
Bag width	25-120mm	70-190mm
Film width	50-240mm	140-380mm
Bag volume	5-100ml	100-1000ml
Packing speed	30-50 bags/min	20-30 bags/min
Power supply	220V/AC 50Hz 1.6Kw	220V/AC 50Hz 1.8Kw
Air requirements	0.6Mpa, 100L/min
Machine size	760*980*1700mm	900*1110*2100mm
Machine weight	300kg	500kg







PRODUCT DETAILS





CONTROL PANEL

It is easy to operate with a touch screen control panel. It is available in English.

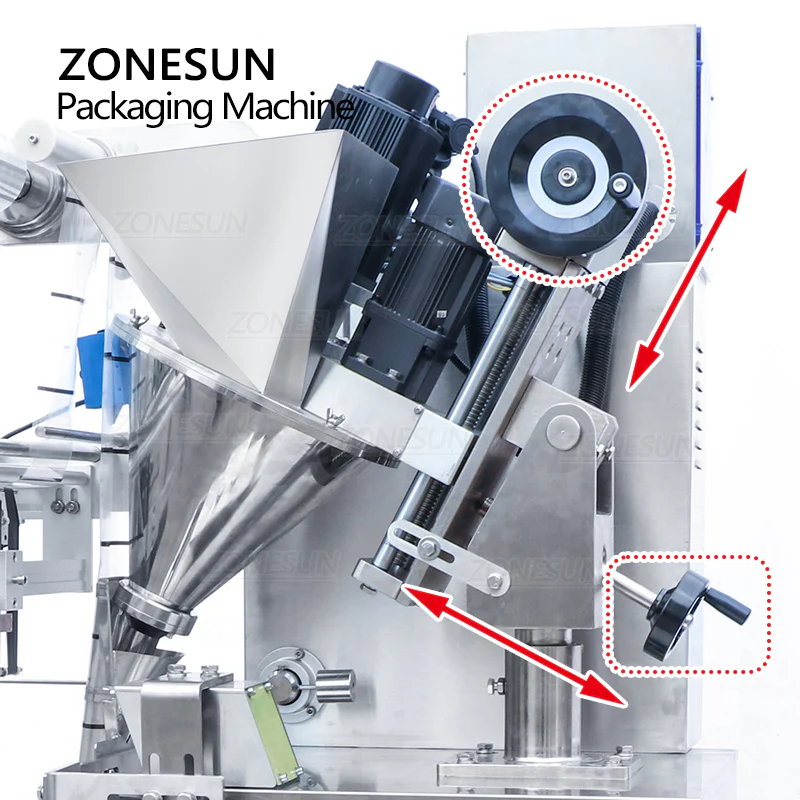

AUGER FILLER

It is designed with an auger filler, which is accurate within 1g. There are 2 knobs for adjustment of height and inclination.

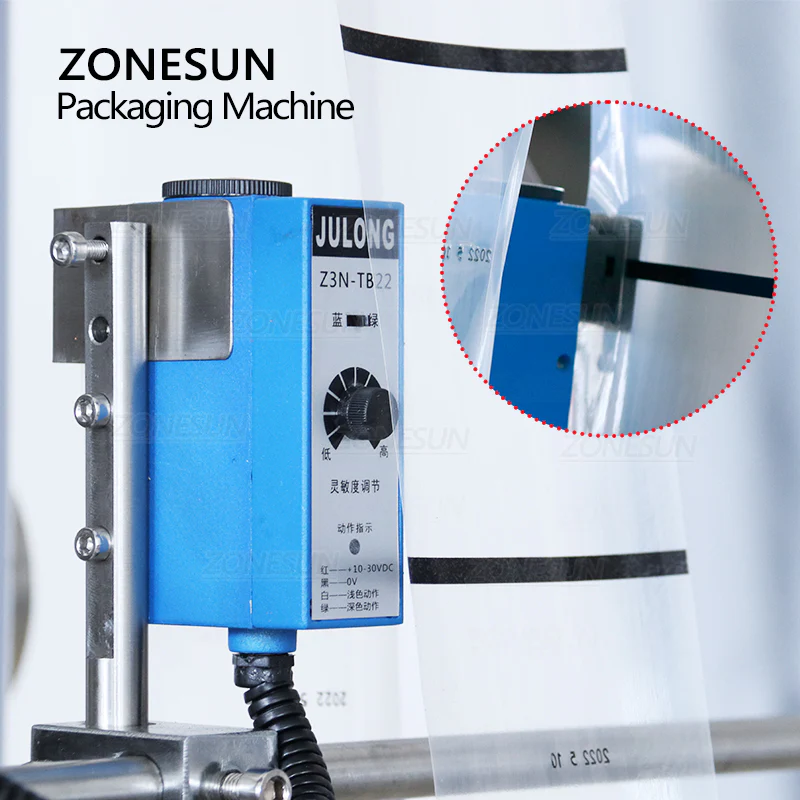

PHOTOELECTRIC EYE

It is equipped with a photoelectric eye. It can automatically control the process, including feeding, printing, filling, and sealing.





CODER

This machine comes with an optional coder with a set of dies. It is available for 3-line coding.





FORMING PART

The forming part helps shape the packets. It needs customization.





SEALING PART

The sealing parts include the vertical part and the horizontal part. The temperature is adjustable for both parts. They are made of heat-resistant material and have a long lifetime.
