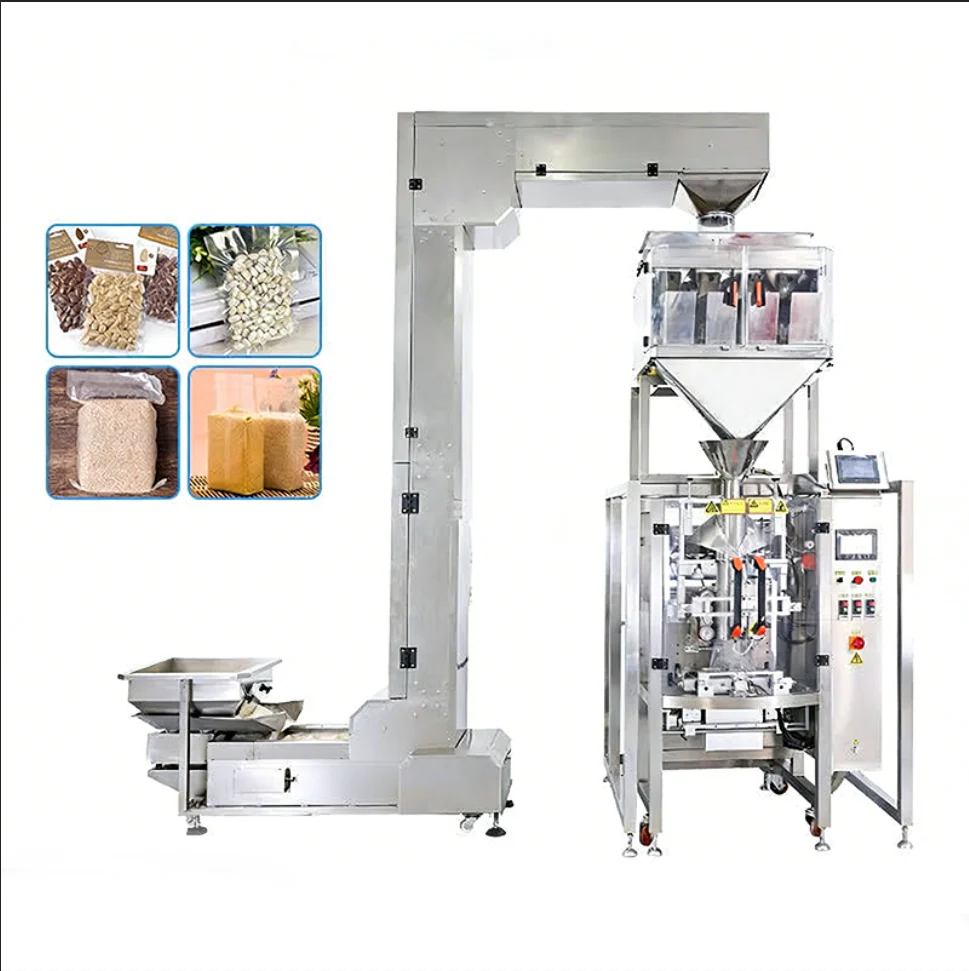

The ZONESUN ZS-PL420S is a high-performance automatic packing machine equipped with a 4-head linear scale for precise weighing, filling, and vacuum sealing of granular products. Designed for efficiency and accuracy, it handles a wide range of materials including rice, corn, beans, cashews, and peanuts. With customizable filling ranges and back-sealing bag support, it delivers 8–12 bags per minute while maintaining a vacuum rate of 76 m³/hour. Built with durable stainless steel and engineered for industrial reliability, it significantly reduces labor and production costs.

PARAMETER

• Model：ZS-PL420S

• Power Supply：3-phase 380V, 50Hz

• Rated Power：5.8 kW

• Machine Material Mainframe: 201 stainless steel<br>Contact parts: 304 stainless steel

• Filling Range：Customized according to user requirements

• Sealing Type：Back-sealing bags

• Bag Size Length: 80–400 mm<br>Width: 100–295 mm<br>Sealing edge: 15 mm

• Packing Speed：8–12 bags/min (depending on product flow)

• Vacuum Rate：76 m³/hour

• Vacuum Degree：0.1 hPa

• Machine Dimensions：3276 mm (L) × 1024 mm (W) × 3290 mm (H)

• Machine Weight：Approx. 1100 kg





PRODUCT DETAILS

4-HEAD LINER WEIGHER



High-precision weighing, improves efficiency of product

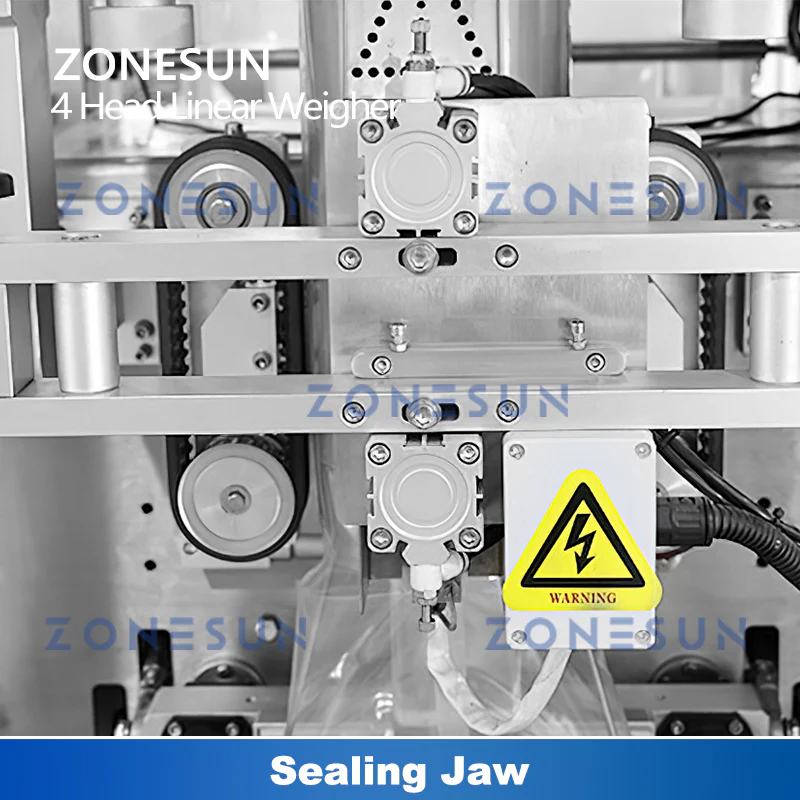

SEALING JAW



High-quality material, makes the seal fast and secure





CONTROL PANEL



Manual touch to operate and control the machine.





BAG FORMER



Make foil rolls into bags of the size you need.





Z-FEEDER



Automatically feed materials into the machine.
