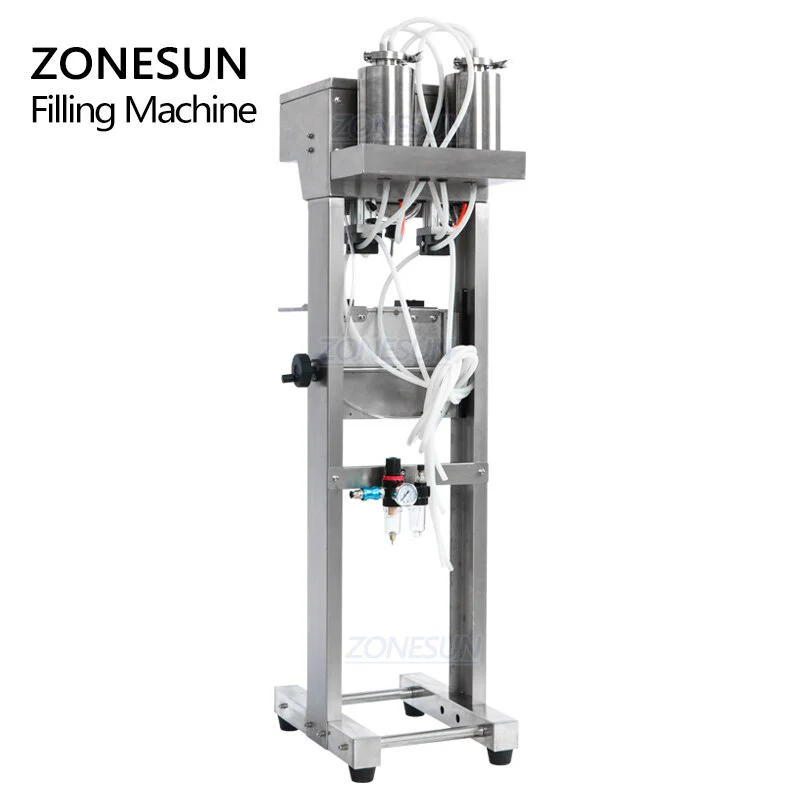

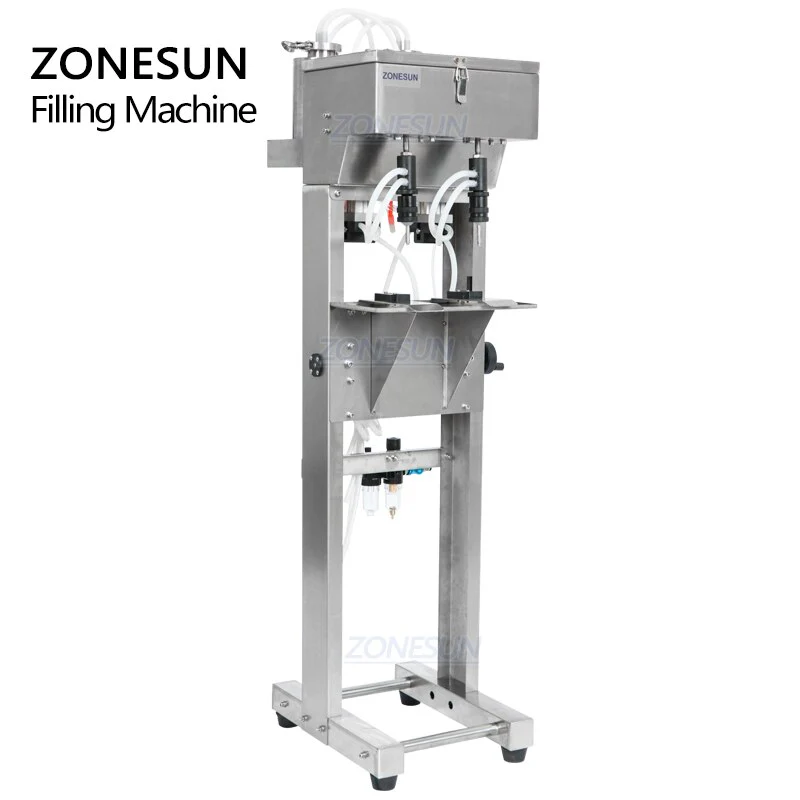

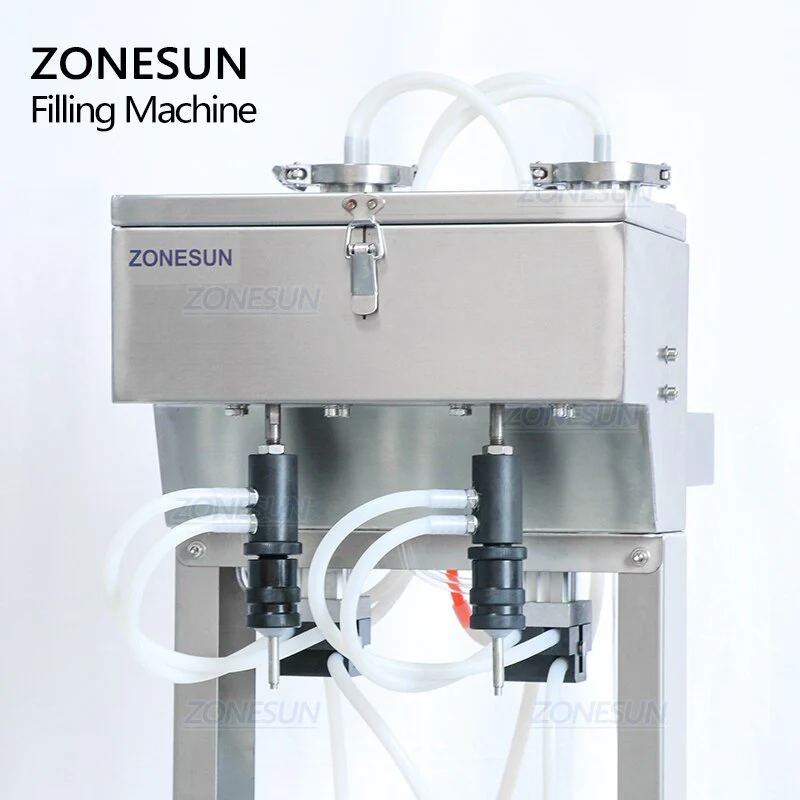

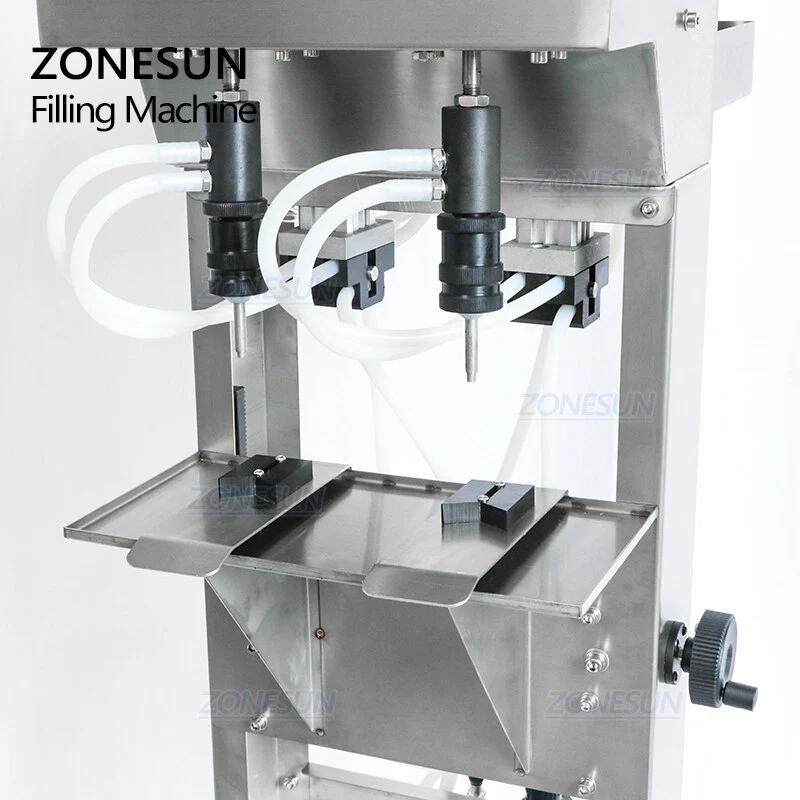

ZONESUN ZS-G400 Pneumatic Vacuum Liquid Filling Machine Enolmatic Gravity Bottle Filler

Description

The vacuum liquid filling machine is a pure pneumatic equipment and requires no electricity,it can prevent the fragrance from spreading,this is especially good for perfume filling. The GZ-G4000 uses the vacuum constant liquid level filling principle, regardless of whether the bottle volume is the same, the filling liquid level will remain the same.

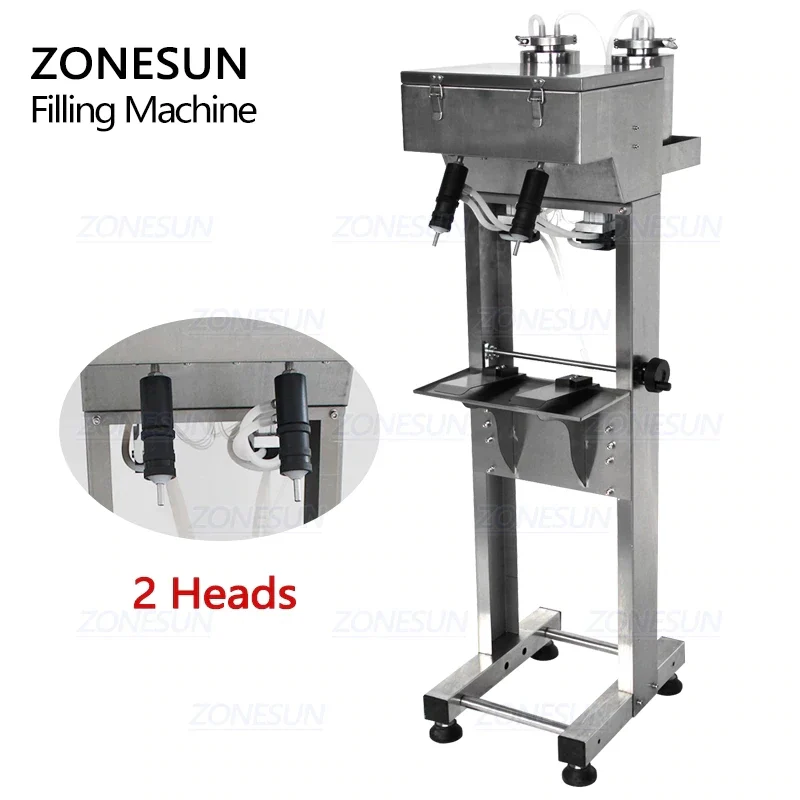

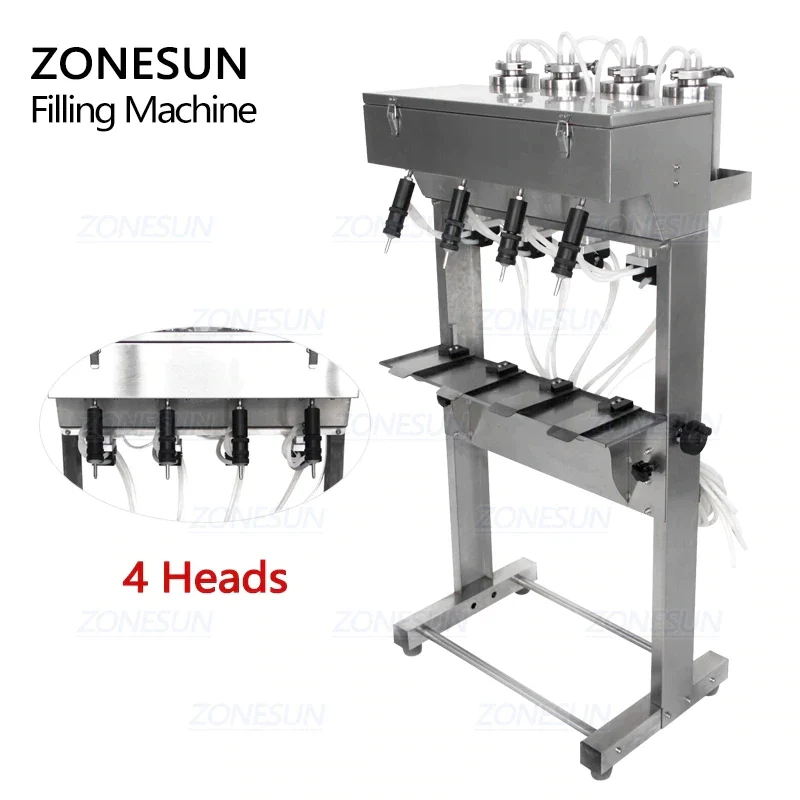

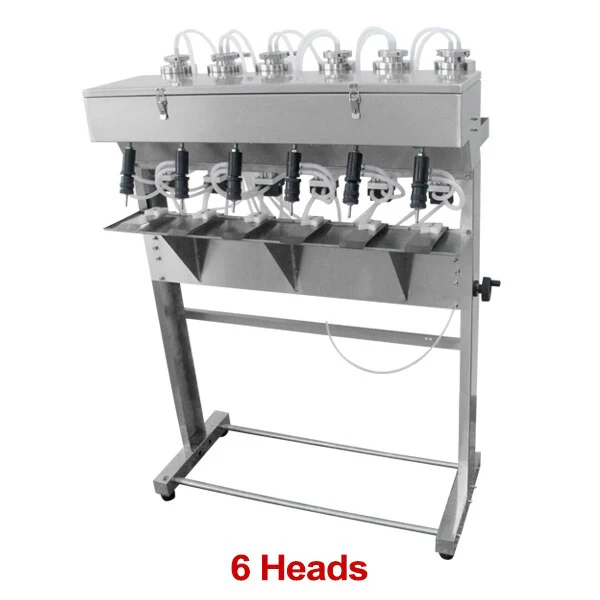

Parameter	2 Heads	4 Heads	6 Heads
Air Pressure	0.5–0.8 MPa	0.5–0.8 MPa	0.5–0.8 MPa
Liquid Level Accuracy	±1 mm	±1 mm	±1 mm
Viscosity Range	Max applicable viscosity is 20Cps (static viscosity)	Same	Same
Working Speed	50 Bottles / Minute	50 Bottles / Minute	50 Bottles / Minute
Bottle Height	≤250 mm	≤250 mm	≤250 mm
Bottle Opening Size	≤φ10mm–φ20mm	≤φ10mm–φ20mm	≤φ10mm–φ20mm
Adjustable Liquid Level (from bottle mouth)	<27 mm	<27 mm	<27 mm
Dimensions (excluding storage bottles)	400 × 320 × 1400 mm	620 × 370 × 1400 mm	660 × 470 × 1400 mm
Pumping Rate	5.5 L/s	5.5 L/s	5.5 L/s

Application

This machine is mainly used for filling small doses of liquid materials such as toilet water, perfume, skin care water, eye drops, oral liquid, sesame oil, fruit juice drinks, carbonated drinks, mineral water, purified water, alcohol, battery liquid, detergent, etc.

The main power of this machine is air source, customers need to buy the air compressor separately.

Note: This filling machine can only be used with rigid plastic bottles and glass bottles.
