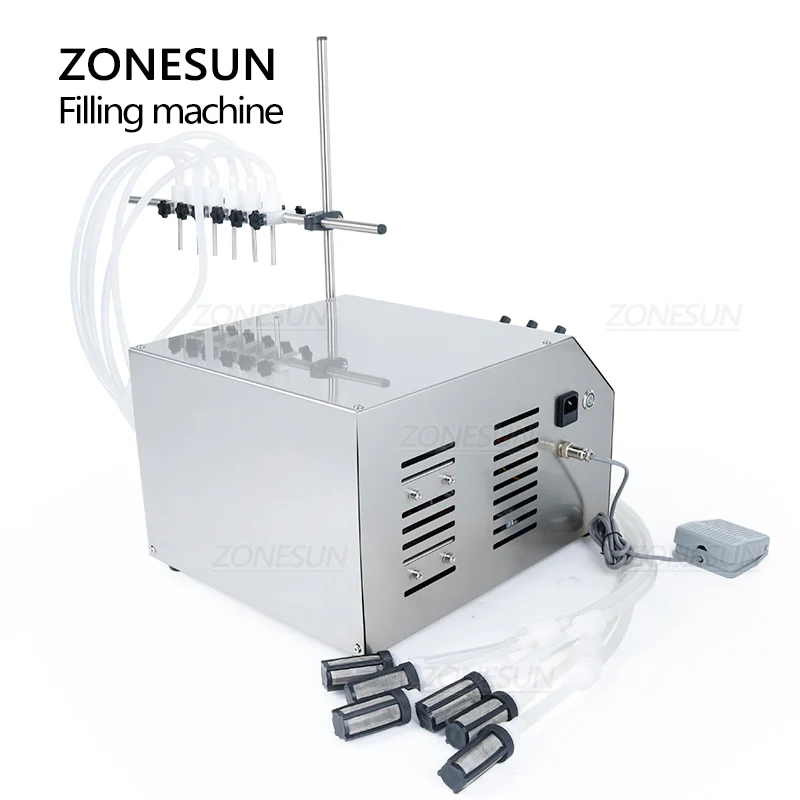

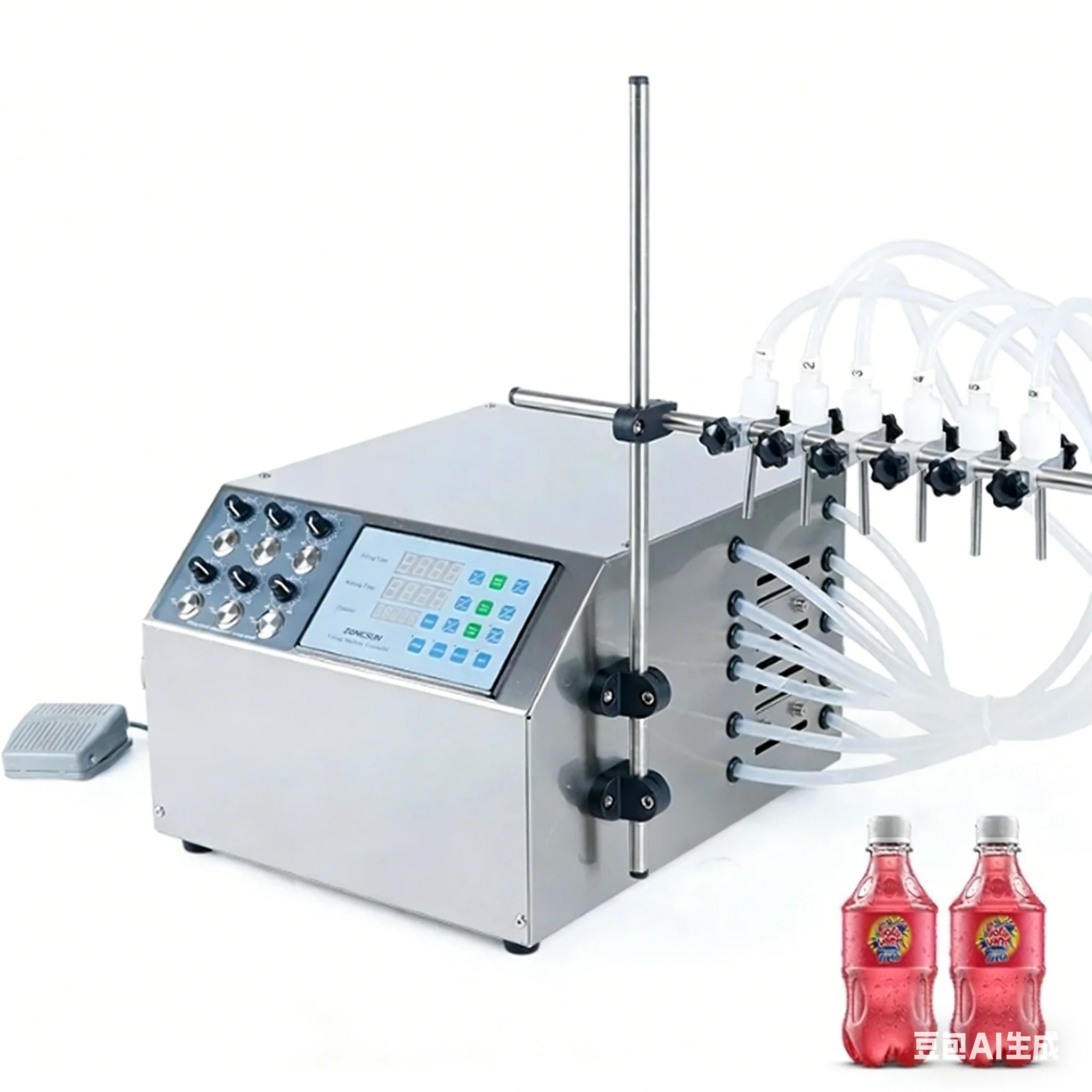

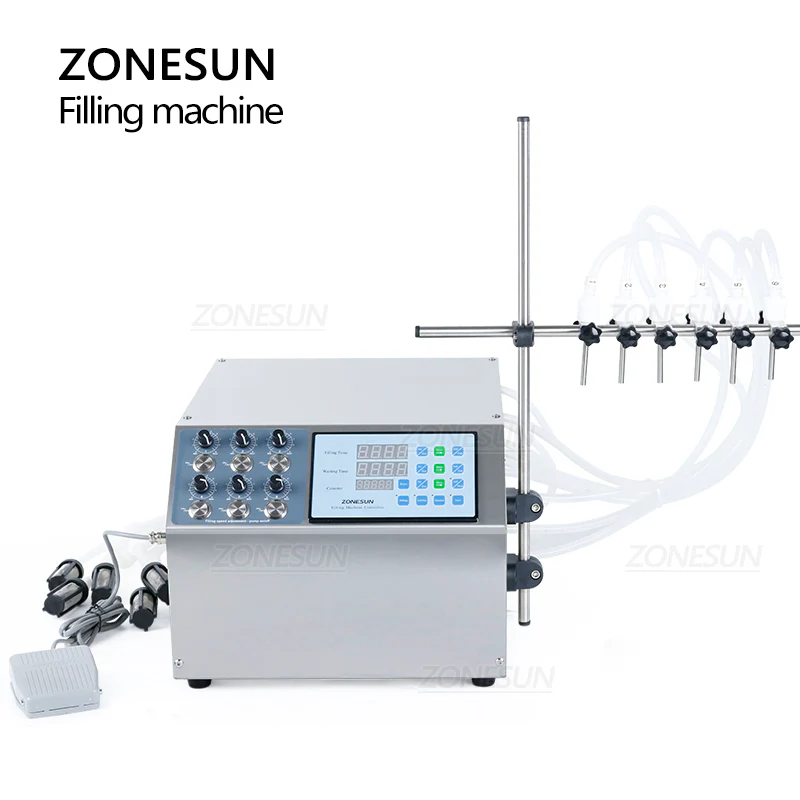

ZONESUN ZS-DPYT6P Semi-Automatic 6 Nozzle Liquid Filling Machine

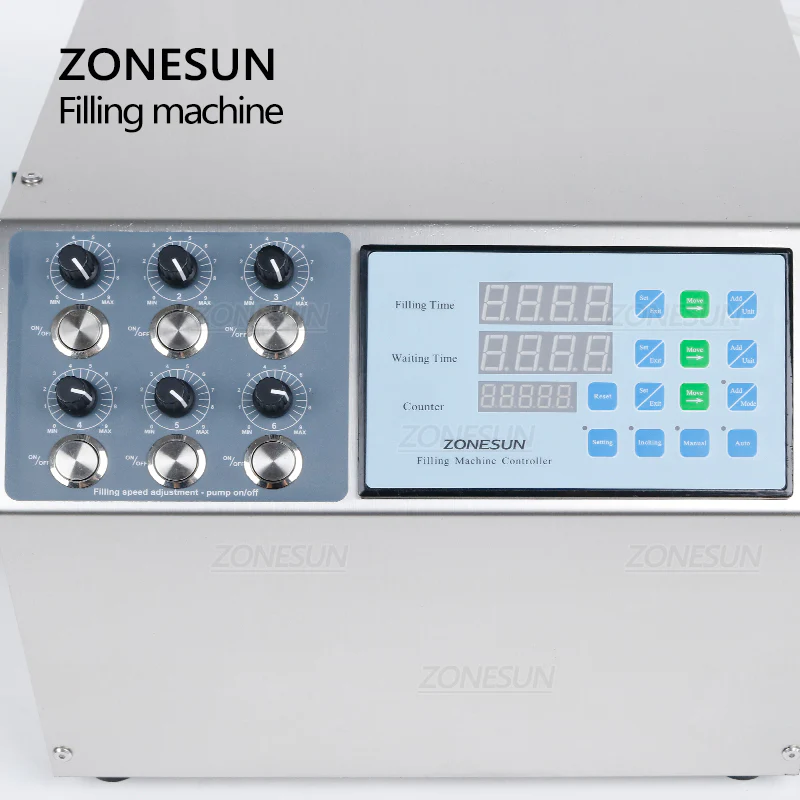

The ZONESUN ZS-DPYT6P is a semi-automatic liquid filling machine equipped with six independently controlled nozzles for precise multi-line operation. Designed for low-viscosity, particle-free liquids such as juice, milk, water, and edible oil, it offers two working modes—automatic and pedal-controlled—for flexible use. Featuring a high-efficiency diaphragm pump with a maximum flow rate of 4L/min, it significantly boosts productivity. Built-in overload protection ensures safe operation by automatically pausing and restarting after extended use. Compact and powerful, it’s ideal for small-scale production lines and liquid packaging tasks.
ZS-DPYT01 Automatic Liquid Filling Machine – Technical Specifications
Specification Details
Machine Model ZS-DPYT01
Voltage AC220V / 110V, 50Hz
Power 141W
Filling Range 50–4000 ml
Max Suction Distance 1.5 m
Max Flow Rate 4 L/min (based on water)
Reiterate Error ≤ 0.5% (depends on product density)
Filling Nozzle Diameter OD 6 mm
Machine Weight 12.7 kg
Machine Dimensions 320 × 400 × 240 mm (L × W × H)
Package Weight 15.6 kg
Package Dimensions 500 × 470 × 330 mm (L × W × H)
Original: $400.00
-70%$400.00
$120.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The ZONESUN ZS-DPYT6P is a semi-automatic liquid filling machine equipped with six independently controlled nozzles for precise multi-line operation. Designed for low-viscosity, particle-free liquids such as juice, milk, water, and edible oil, it offers two working modes—automatic and pedal-controlled—for flexible use. Featuring a high-efficiency diaphragm pump with a maximum flow rate of 4L/min, it significantly boosts productivity. Built-in overload protection ensures safe operation by automatically pausing and restarting after extended use. Compact and powerful, it’s ideal for small-scale production lines and liquid packaging tasks.
ZS-DPYT01 Automatic Liquid Filling Machine – Technical Specifications
Specification Details
Machine Model ZS-DPYT01
Voltage AC220V / 110V, 50Hz
Power 141W
Filling Range 50–4000 ml
Max Suction Distance 1.5 m
Max Flow Rate 4 L/min (based on water)
Reiterate Error ≤ 0.5% (depends on product density)
Filling Nozzle Diameter OD 6 mm
Machine Weight 12.7 kg
Machine Dimensions 320 × 400 × 240 mm (L × W × H)
Package Weight 15.6 kg
Package Dimensions 500 × 470 × 330 mm (L × W × H)
