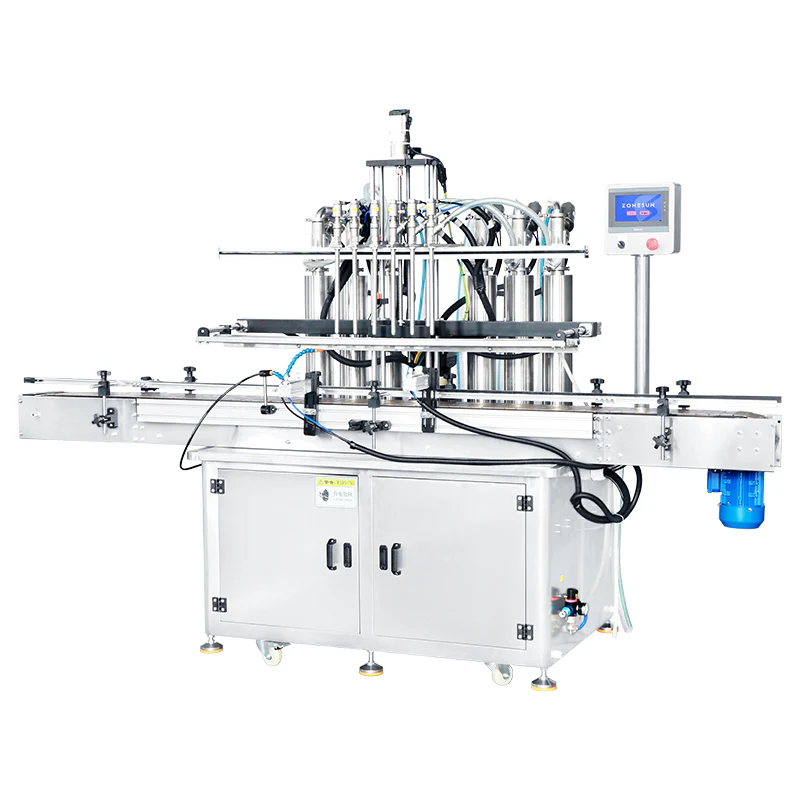

ZONESUN ZS-SV6HS 6-Head Servo Filler for Cosmetics, Food & Chemical Bottling Lines

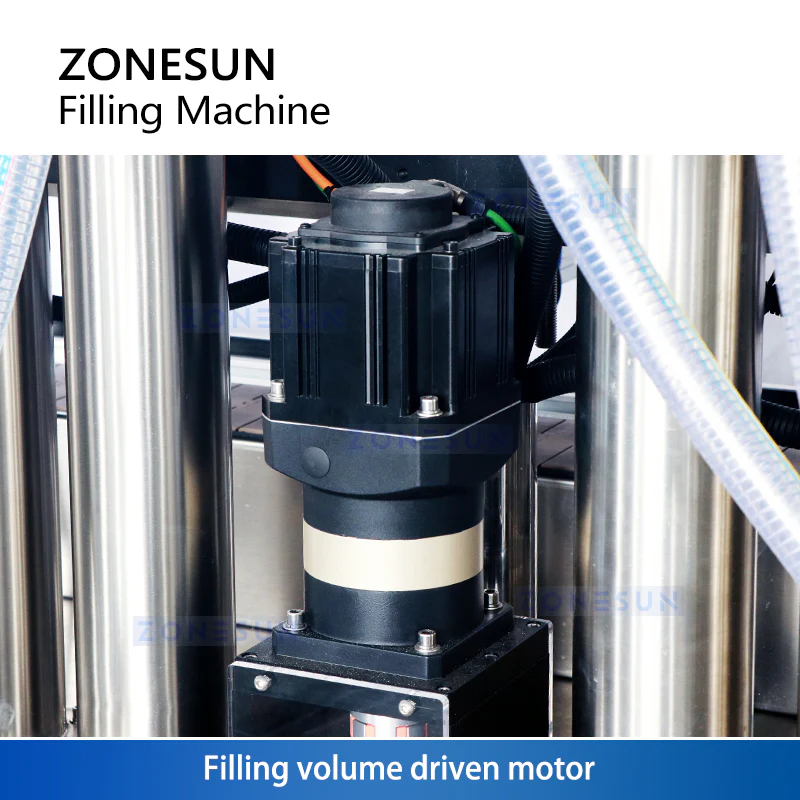

The ZONESUN ZS-SV6HS is a high-speed, high-precision 6-head servo piston filling machine engineered for demanding liquid filling applications. Powered by advanced servo motor control, it ensures accurate piston movement and consistent fill volumes with an error margin of just ±0.5%. Capable of handling 400–4000ml per cycle and up to 40 bottles per minute, this machine is ideal for medium to large-scale production lines in cosmetics, food, chemical, and pharmaceutical industries. Its robust design, customizable filling range, and integrated conveyor system make it a reliable solution for efficient, automated bottling.

Parameter

• Machine model: ZS-SV6HS
• Voltage: 220V/110V, 50–60Hz
• Power: About 5KW
• Filling range: 400–4000ml (can be customized)
• Filling speed: About 20–40 bottles/min (depending on bottle size and filling material)
• Filling error: About ±0.5%
• Air pressure: 0.5–0.8MPa
• Conveyor belt size (W×L): About 114×2000mm
• Machine size (L×W×H): About 2000×860×1950mm
• Package size (L×W×H): About 1980×980×2100mm
• Package weight: About 501kg
