ZONESUN ZS-YT12T-12PX 12 Nozzles Servo Motor Paste Filling Machine With Feeding Pump

DESCRIPTION

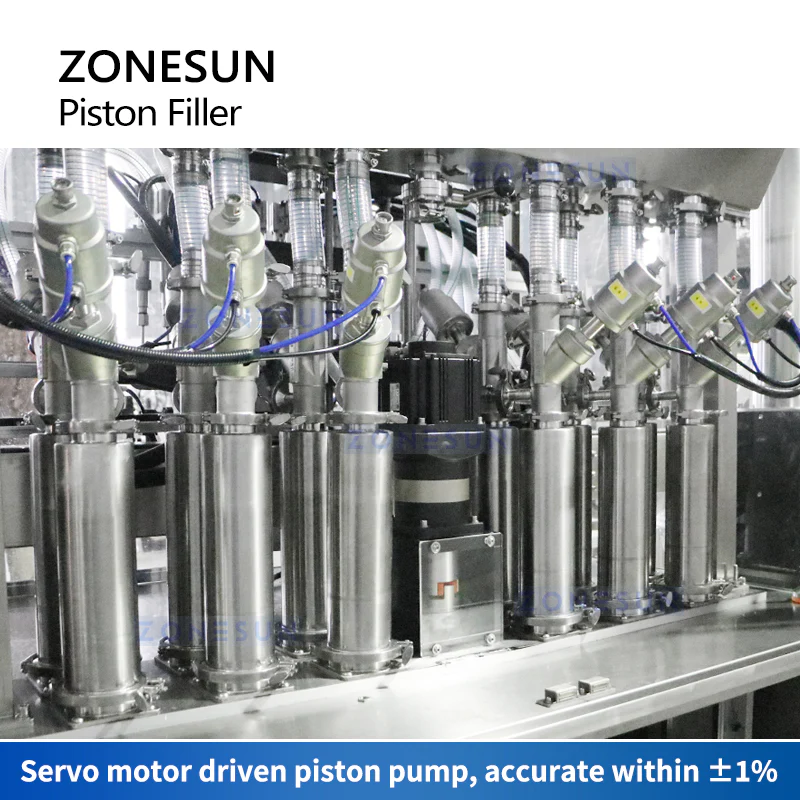

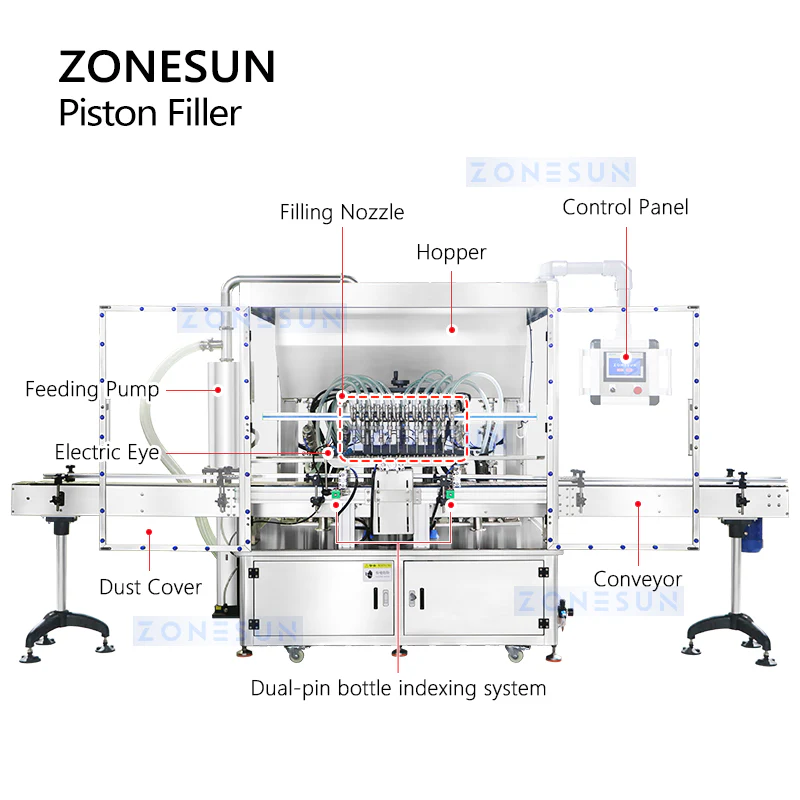

Zonesun Automatic Linear Piston filler is an extremely flexible filler capable of filling accurately and rapidly any viscous liquids. Product delivery from your bulk tank to the pistons can be configured with a buffer tank utilizing a level-sensing float, a manifold with direct draw, or re-circulation methods. The Zonesun Automatic Linear Piston Filler is manufactured with a 304 stainless steel frame and is capable of supporting 1 to 12 fill heads. PLC controls, touch screen HMI, food grade contact parts, stainless steel, and anodized aluminum construction and many more features come standard. Zonesun Automatic Piston Fillers are designed to add efficiency to any production line used in the cosmetic, food service, specialty chemical, pharmaceutical, and personal care industries. Additional options are available for sanitary, hazardous, flammable, and corrosive environments.

Whatever your packaging needs are, you can rely on ZONESUN.

Parameter

• Model: ZS-YT12T-12PX
• Voltage: 220V/110V 50–60Hz
• Power: 2kW

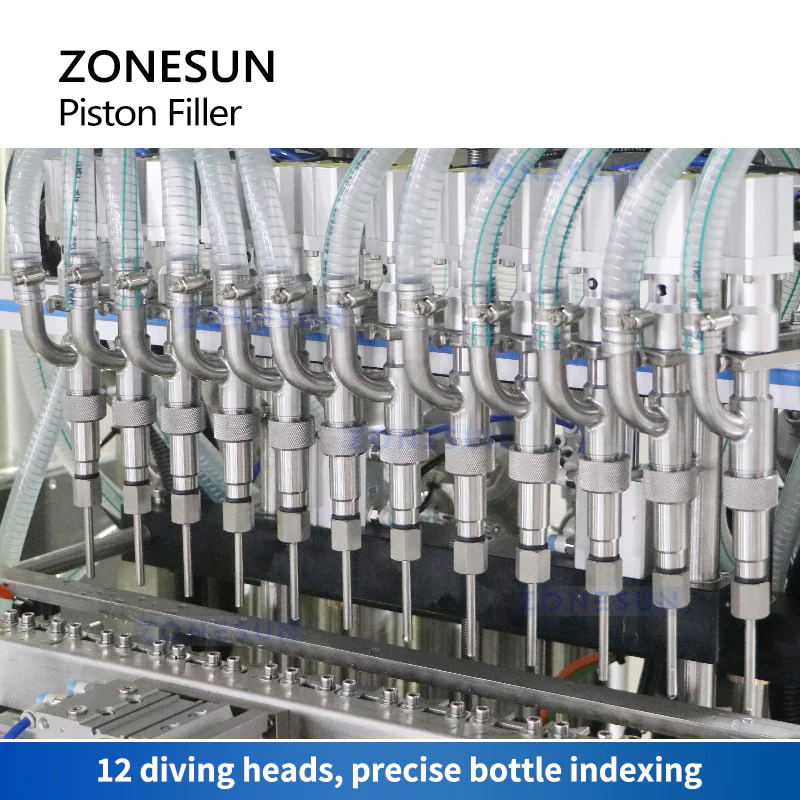

• Filling Heads: 12 (customizable)
• Filling Range: 100–1000ml (customizable)
• Filling Speed: Approx. 30–70 bottles/min (varies by material and bottle size)
• Filling Accuracy: ±1%

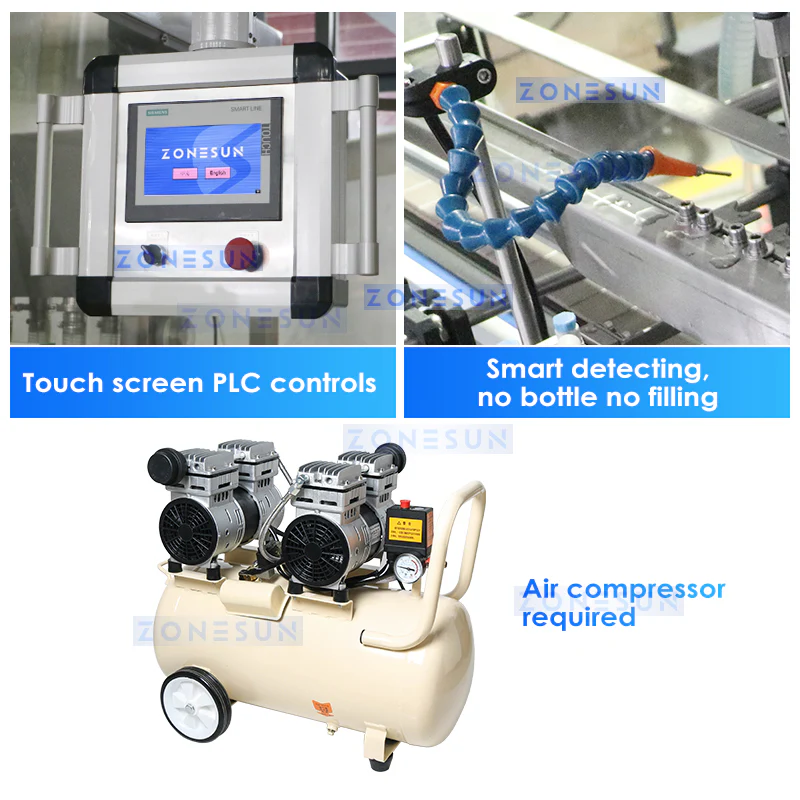

• Air Pressure: 0.5–0.8MPa
• Memory Function: Available
• Package Size: Approx. 2240 × 1390 × 2270mm
• Package Weight: Approx. 950kg
