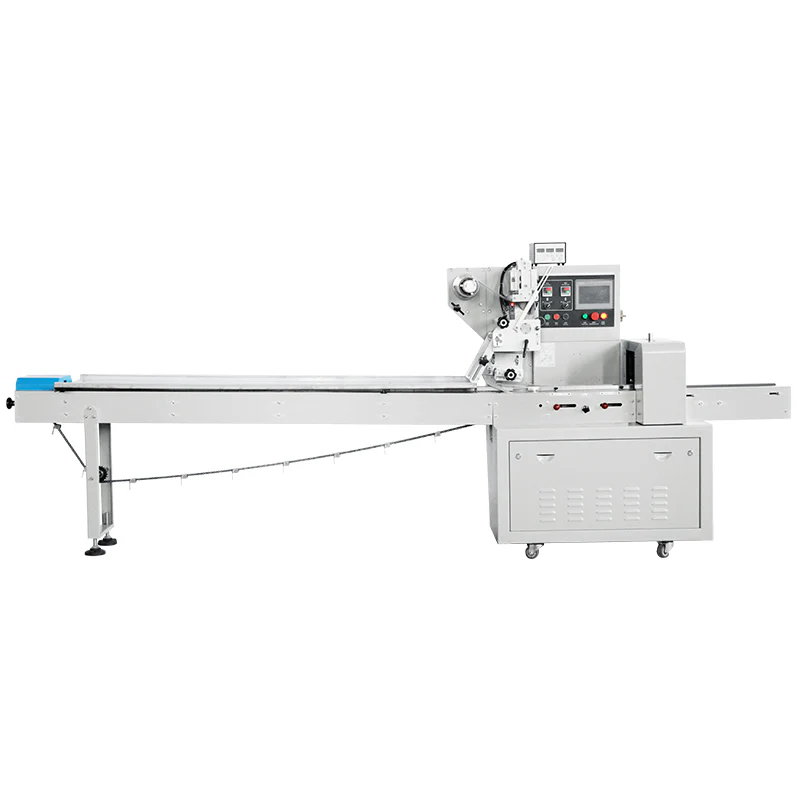

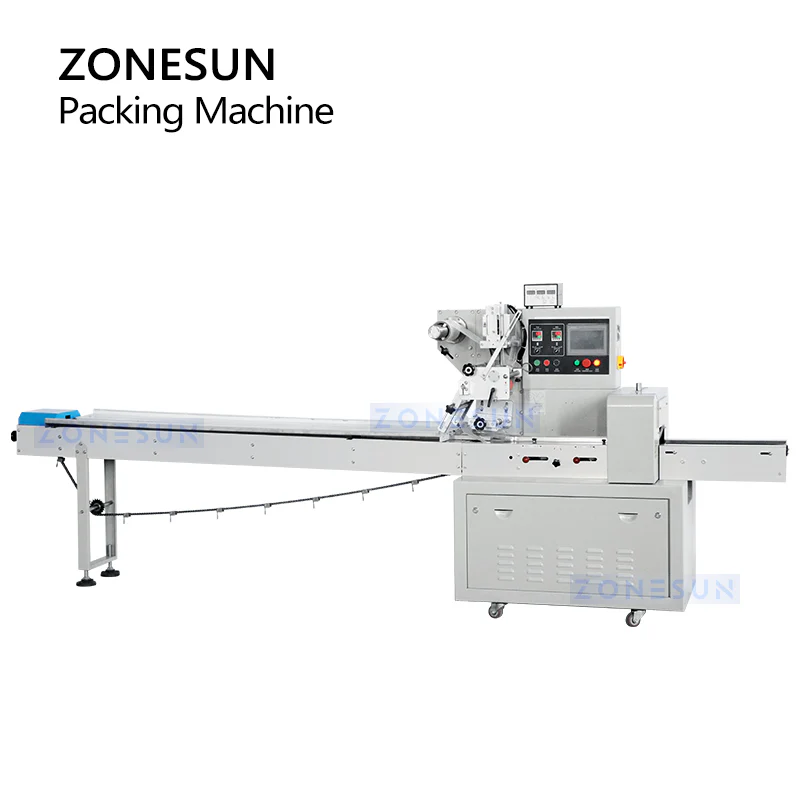

ZONESUN ZS-ZB250S Horizontal Pillow Flow Wrapping Machine
The ZS-ZB250S is a horizontal flow wrapper designed for seamless, continuous packaging. It performs infeed spacing, film wrapping, and sealing in one fluid motion. Unlike the ZS-ZB350X, this model operates without a product sensor and uses a spacing conveyor for efficient item handling. Ideal for packaging various goods with precision and speed, it supports multiple film types and customizable bag dimensions.
PARAMETER
- Type：ZS-ZB250S
- Power：110/220/380V,50/60Hz,2.4KW
- Film width：Max:240mm (Customizable)
- Bag length：120-280mm (Customizable)
- Bag width：50-60mm (Customizable)
- Product height：Max:45mm (Customizable)
- Film roll diameter：Max:320mm
- Middle side sealing：Bottom side sealing
- Packaging rate：40-230bag/min
- Packaging materials：OPP, OPP/CPP, KOP/CPP, ALU-FILM
- Packing Size：About 2570*530*400mm+1420*790*1570mm
CONTROL PANEL
PLC, touchscreen, user-friendly HMI, separate thermometer for sealing.

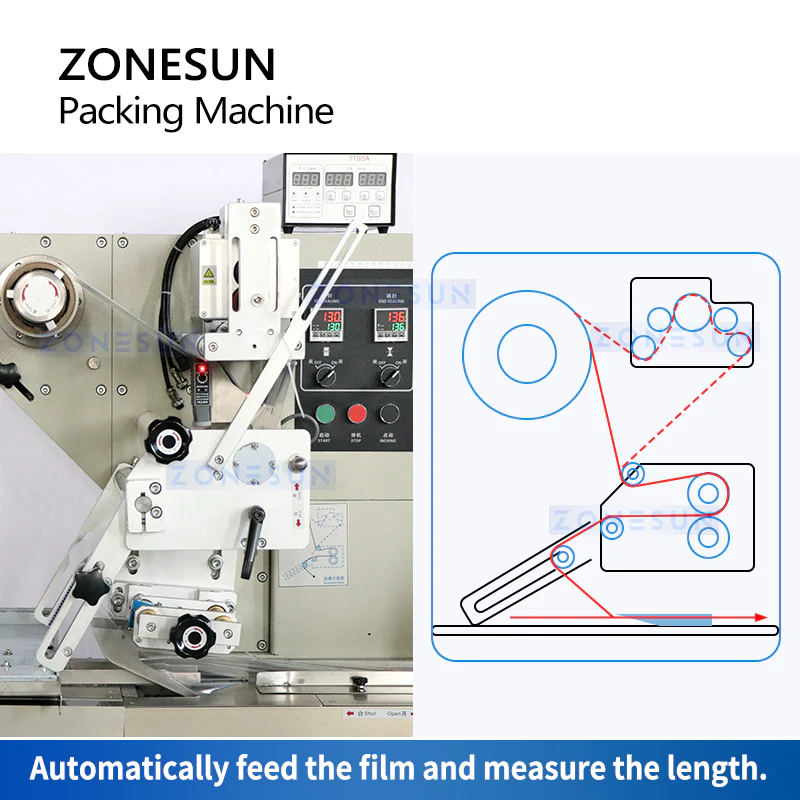

FILM FEEDING
Automatically feed the film.
The max width of the film roll for this model is 250mm. Contact us for other options.

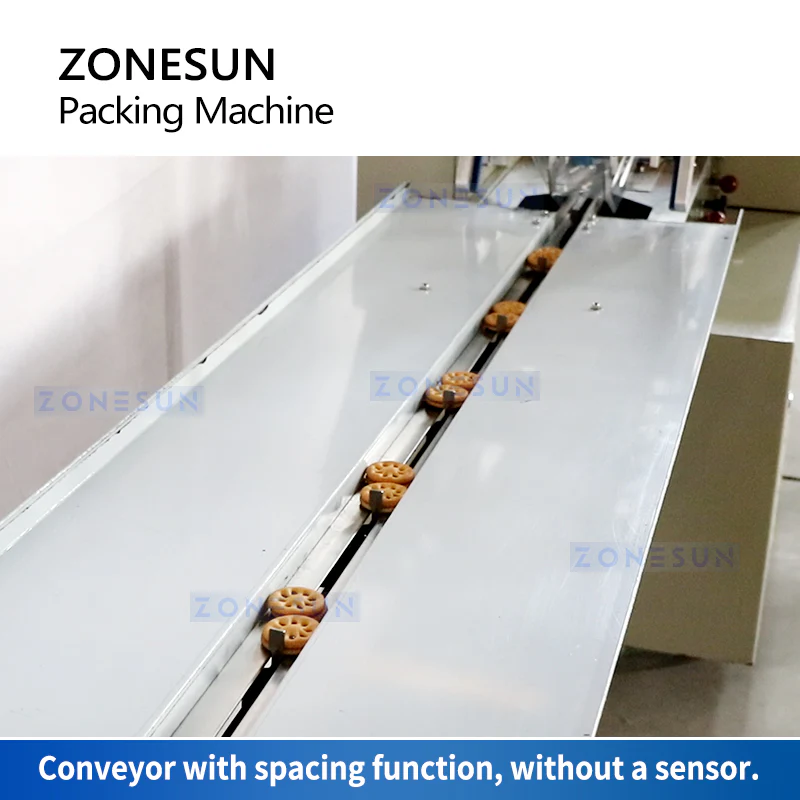

TRANSPORTING
Conveyor with spacing function, without a sensor.
Customization for a sensor option is available.

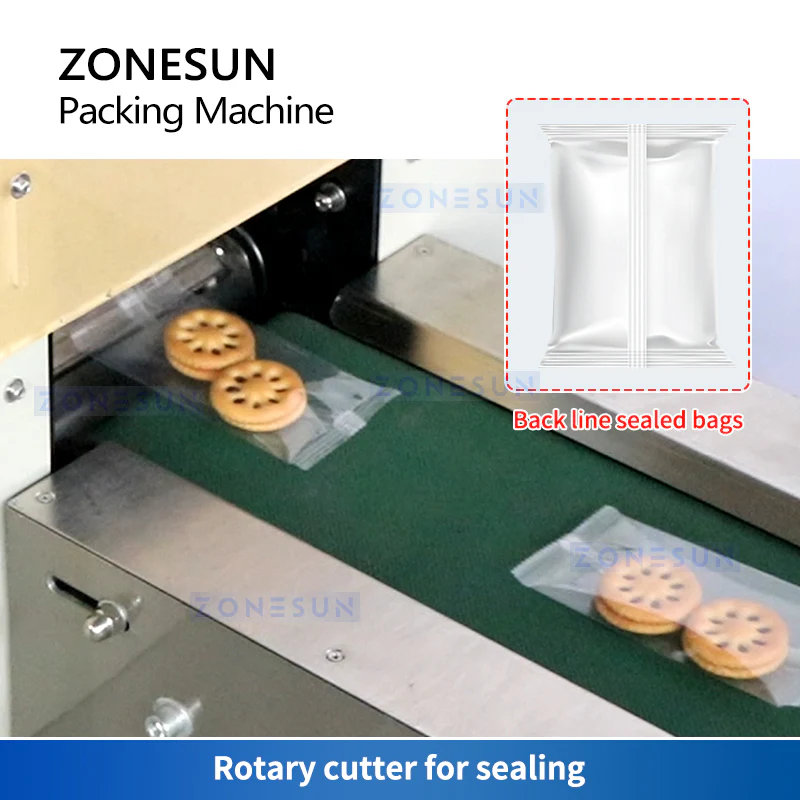

SEALING
The sealing pattern for this model is back line sealing only. It is applicable to many materials, such as OPP, OPP/CPP, KOP/CPP, Alu-film, and bubble wrap.
Original: $4,460.00
-70%$4,460.00
$1,338.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The ZS-ZB250S is a horizontal flow wrapper designed for seamless, continuous packaging. It performs infeed spacing, film wrapping, and sealing in one fluid motion. Unlike the ZS-ZB350X, this model operates without a product sensor and uses a spacing conveyor for efficient item handling. Ideal for packaging various goods with precision and speed, it supports multiple film types and customizable bag dimensions.
PARAMETER
- Type：ZS-ZB250S
- Power：110/220/380V,50/60Hz,2.4KW
- Film width：Max:240mm (Customizable)
- Bag length：120-280mm (Customizable)
- Bag width：50-60mm (Customizable)
- Product height：Max:45mm (Customizable)
- Film roll diameter：Max:320mm
- Middle side sealing：Bottom side sealing
- Packaging rate：40-230bag/min
- Packaging materials：OPP, OPP/CPP, KOP/CPP, ALU-FILM
- Packing Size：About 2570*530*400mm+1420*790*1570mm
CONTROL PANEL
PLC, touchscreen, user-friendly HMI, separate thermometer for sealing.
FILM FEEDING
Automatically feed the film.
The max width of the film roll for this model is 250mm. Contact us for other options.
TRANSPORTING
Conveyor with spacing function, without a sensor.
Customization for a sensor option is available.
SEALING
The sealing pattern for this model is back line sealing only. It is applicable to many materials, such as OPP, OPP/CPP, KOP/CPP, Alu-film, and bubble wrap.
