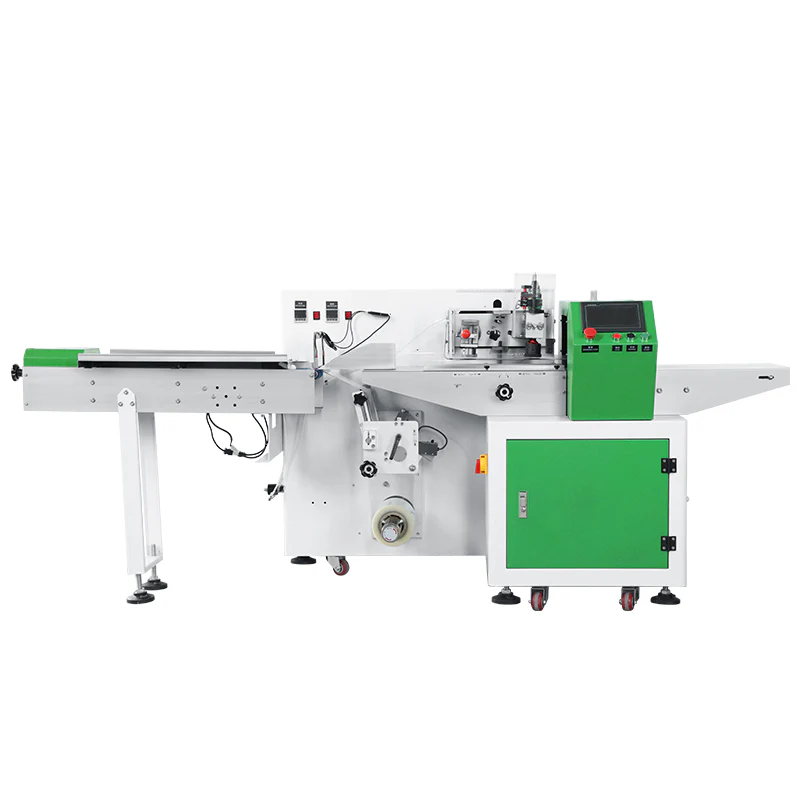

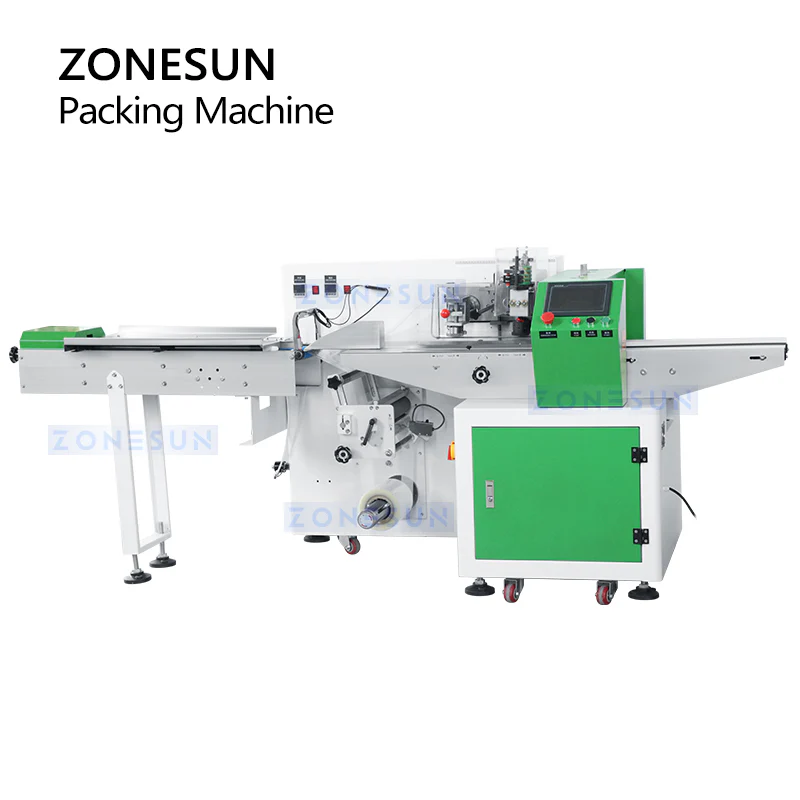

ZONESUN ZS-ZB350X Horizontal Flow Wrapper for Film Packaging

The ZS-ZB350X is a high-efficiency horizontal flow wrapper designed for seamless packaging operations. It performs infeed spacing, film wrapping, and sealing in one continuous motion. With top-side sealing and support for various film types—including bubble wrap and aluminum film—it’s ideal for packaging a wide range of products. Customizable dimensions and reliable performance make it a trusted solution across industries.

PARAMETER

• Type：ZS-ZB350X
• Power：110/220/380V,50/60Hz,2.4KW

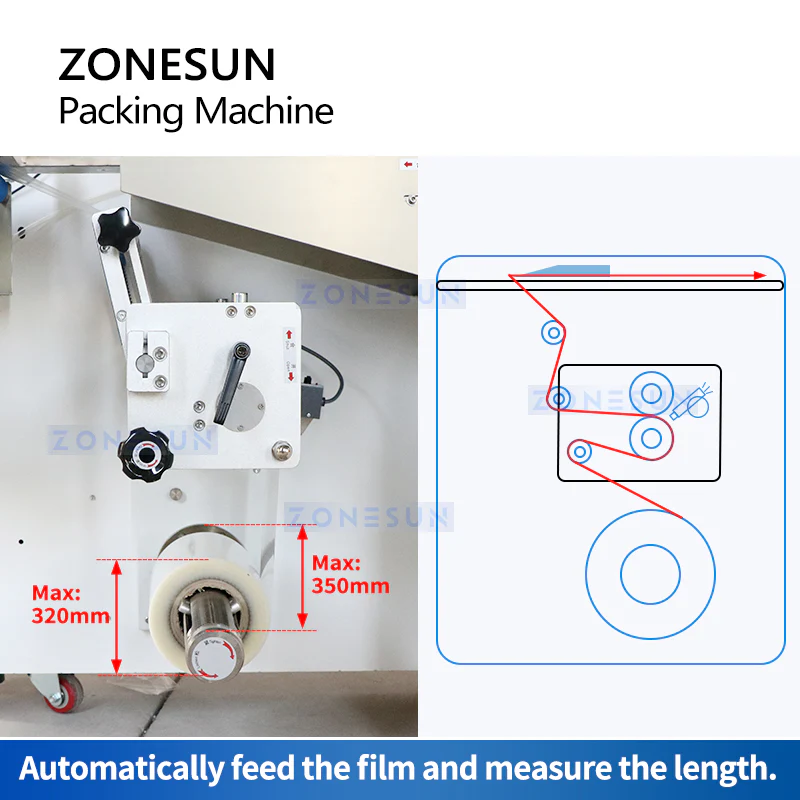

• Film width：1.Max:350mm (Customizable)
• Bag length：90-6000mm (Customizable)
• Bag width：30-160mm (Customizable)
• Product height：Max:55mm (Customizable)
• Film roll diameter：Max:320mm

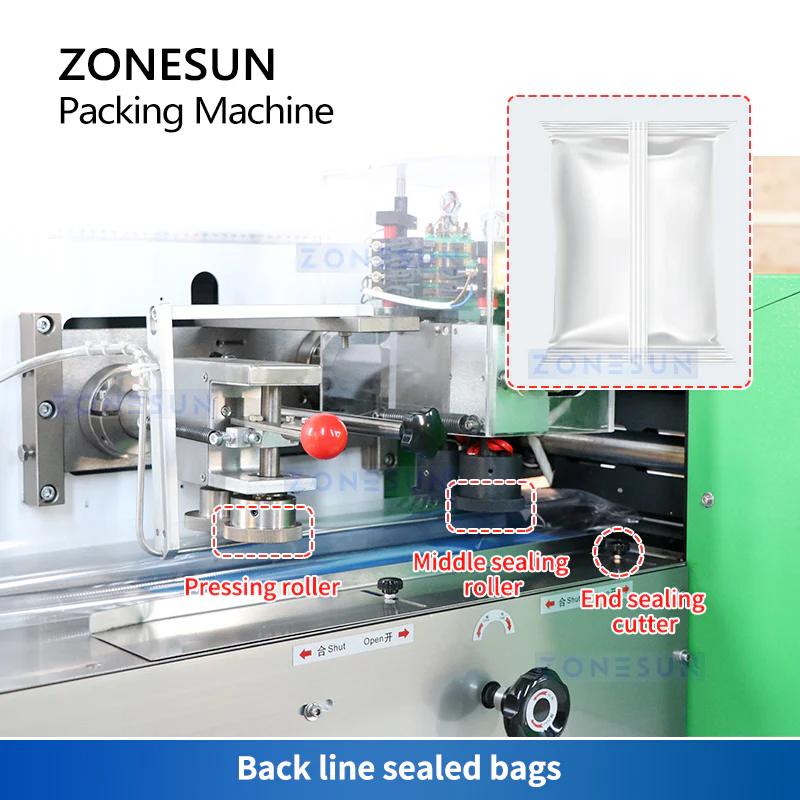

• Middle side sealing：Top side sealing
• Packaging rate：30-120bag/min
• Packaging materials：OPP, OPP/CPP, KOP/CPP, Alu-film, bubble wrap
• Machine size：Approx. 3836*890*1079mm
• Machine weight：Approx. 350Kg
• Packing Size：Approx. 1600*1020*1250mm (Machine) 1590*210*510mm (Conveyor)
• Package Weigh：Approx. 378kg (Machine) 36kg (Conveyor)
