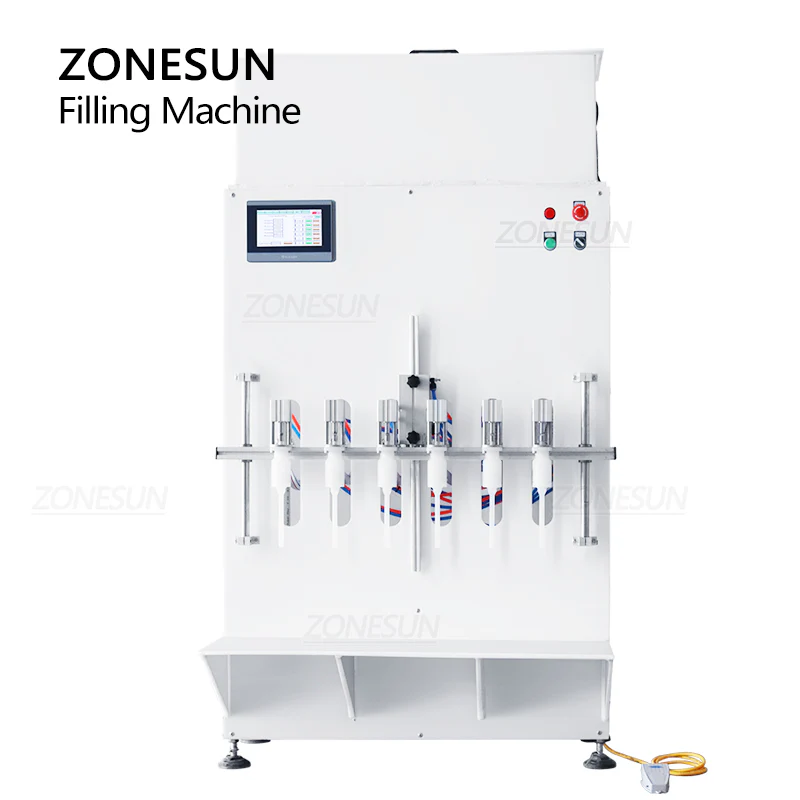

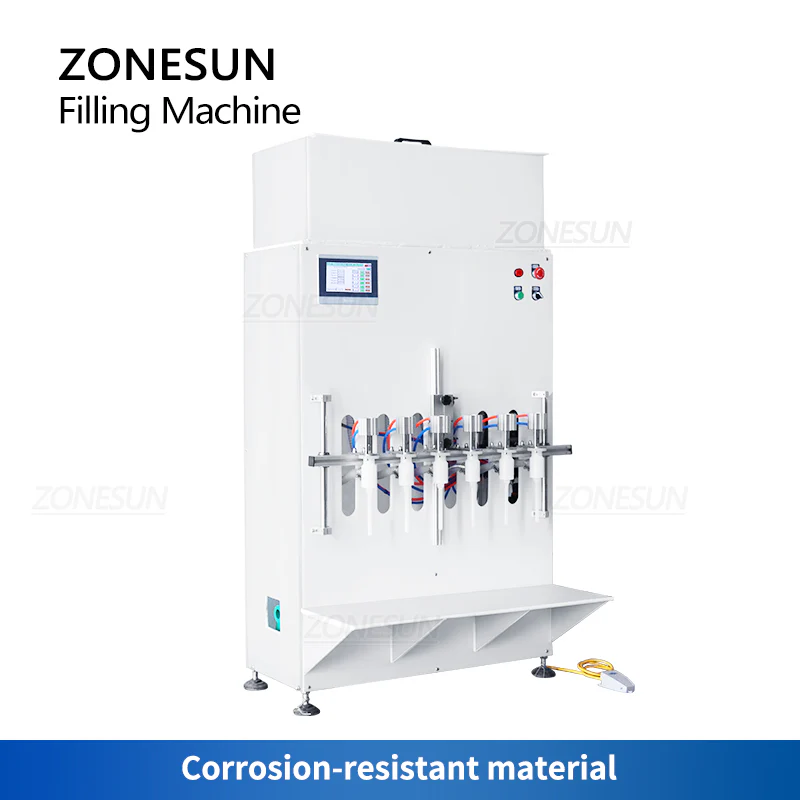

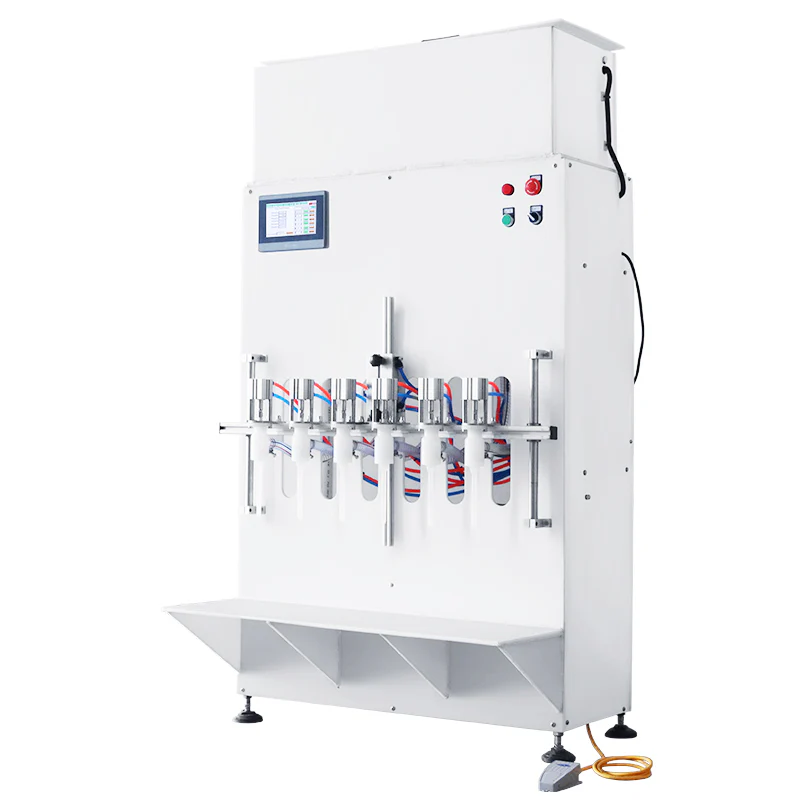

ZONESUN ZS-YTCR6 Pneumatic Corrosive Liquid Filling Machine – 6 Nozzles

The ZONESUN ZS-YTCR6 is a pneumatic filling machine engineered for corrosive liquids such as disinfectants, pesticides, bleach, and toilet bowl cleaners. Featuring six customizable filling heads and a 35L tank, it delivers precise volume control and consistent output at up to 18 bottles per minute (based on 500ml). With adjustable bottle compatibility and a compact footprint, it’s ideal for chemical, sanitation, and industrial packaging lines. The intuitive interface allows users to set fill volumes directly, ensuring accuracy and ease of operation.

ZONESUN ZS-YTCR6 Liquid Filling Machine – Technical Specifications
Parameter Details
Model ZS-YTCR6
Power Supply 220V / 50Hz
Filling Heads 6 Heads (Customizable)
Filling Capacity 18 bottles/min (based on 500ml)
Applicable Bottle Size Customizable
Working Pressure 0.4–1 MPa
Tank Volume 35 Liters
Machine Dimensions 900 × 650 × 1650 mm
Net Weight 80 kg
Package Dimensions 780 × 1030 × 1810 mm
Gross Weight 132 kg
