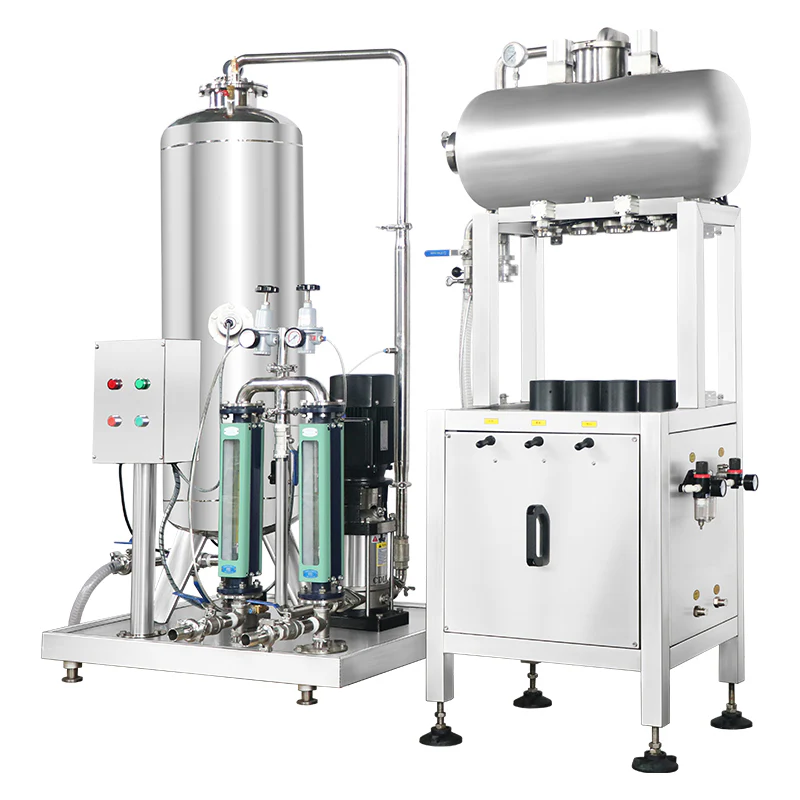

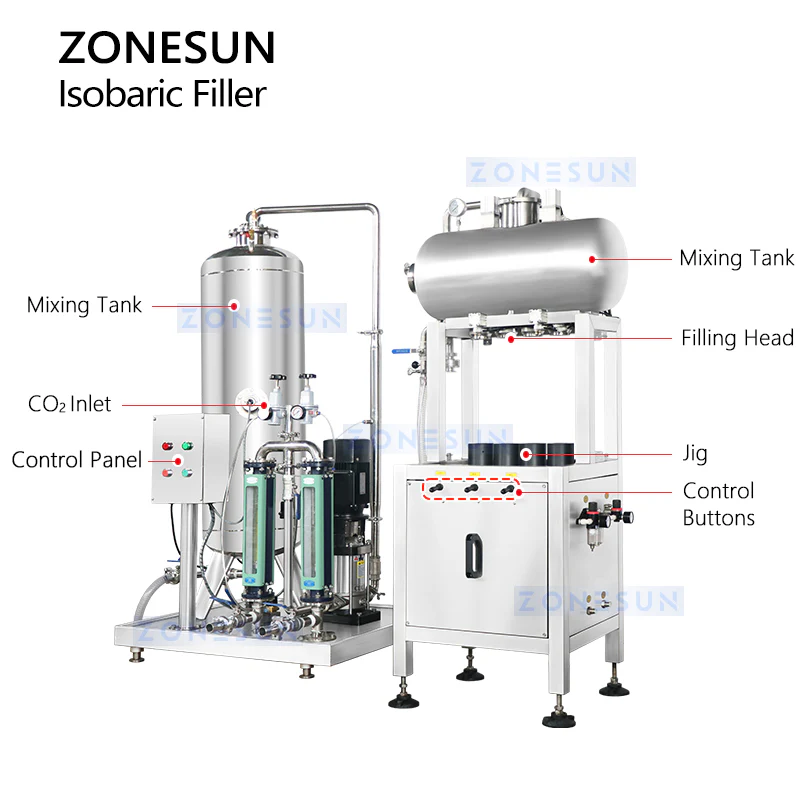

ZONESUN ZS-CF4A Semi-automatic Carbonated Drinks Liquid Mixing and Filling Machine

DESCRIPTION

Introducing our latest innovation, the Isobaric Filler and CO2 Blending Machine Combo! This powerful combination is designed for efficiently filling carbonated beverages. It is an ideal solution for businesses in the beverage industry, ensuring precise and reliable filling operations.

Whatever your packaging needs are, you can rely on ZONESUN.

Technical Requirements:

• Production Capacity: 1.5–2T/h
• Syrup-to-Water Mixing Ratio: 1:2 to 1:8
• Beverage Outlet Temperature: <6°C
• Beverage Outlet Pressure: 0.3–0.5MPa
• Carbonation Gas Content: 3G.V

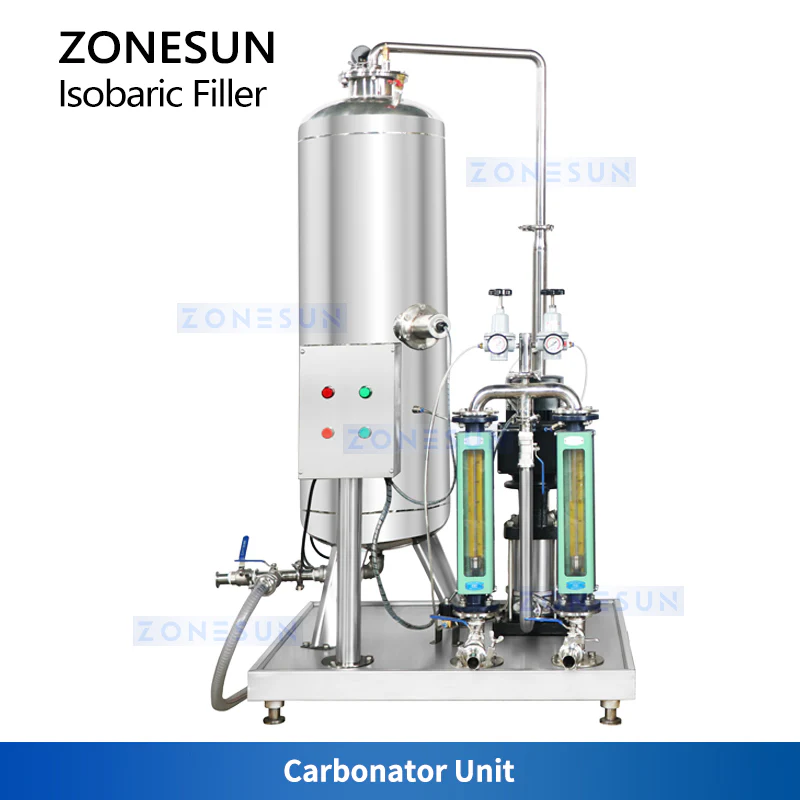

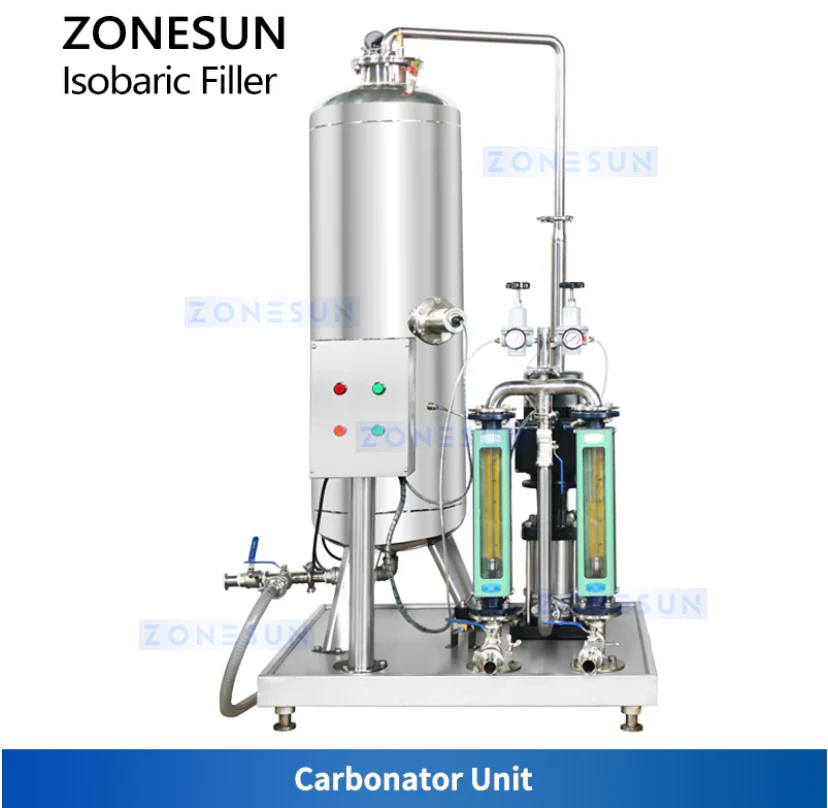

Raw Material Requirements:

• Inlet Pressure of Treated Water: 0.2 MPa
• Inlet Temperature of Treated Water: <6°C
• Syrup Inlet Temperature: <4°C
• CO₂ Inlet Pressure: 0.28–0.35 MPa
• CO₂ Purity: >99%
• Package Size: Approx. 910 × 1000 × 1880 mm
• Package Weight: Approx. 200 kg

Filling Machine Specifications:

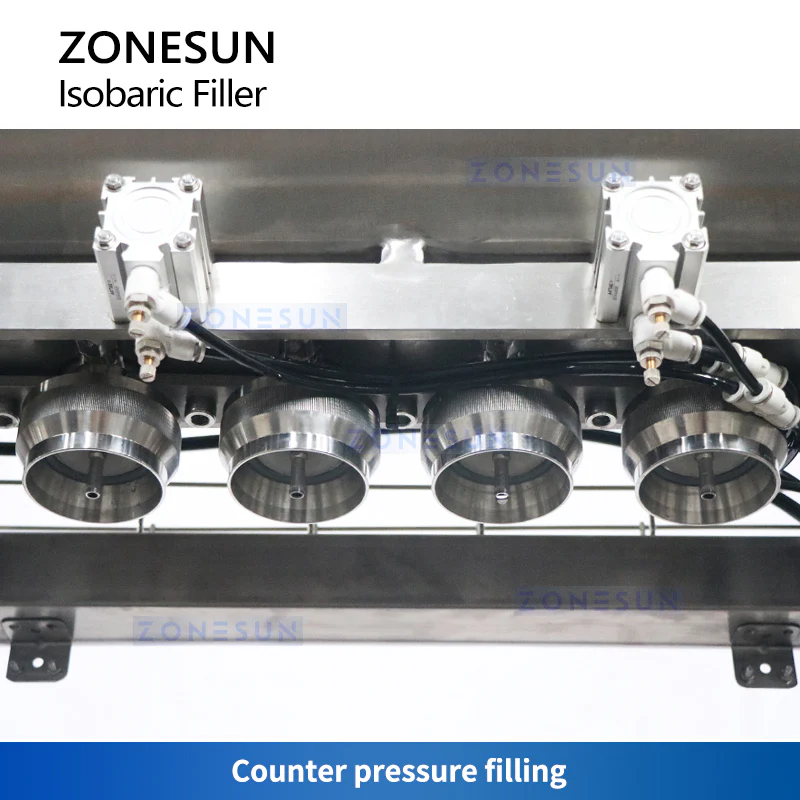

• Filling Nozzle Quantity: 4
• Filling Material Temperature: 1–4°C
• Filling Material Pressure: 0.2–0.3MPa
• Working Capacity: 240–400 BPH
• Applicable Containers: For 330/500ml Aluminum Cans (Customizable)
• Air Pressure: 0.5–0.7MPa
• CO₂ Pressure: 0.2–0.3MPa
• Package Size: Approx. 950 × 750 × 1960mm
• Package Weight: Approx. 163kg
