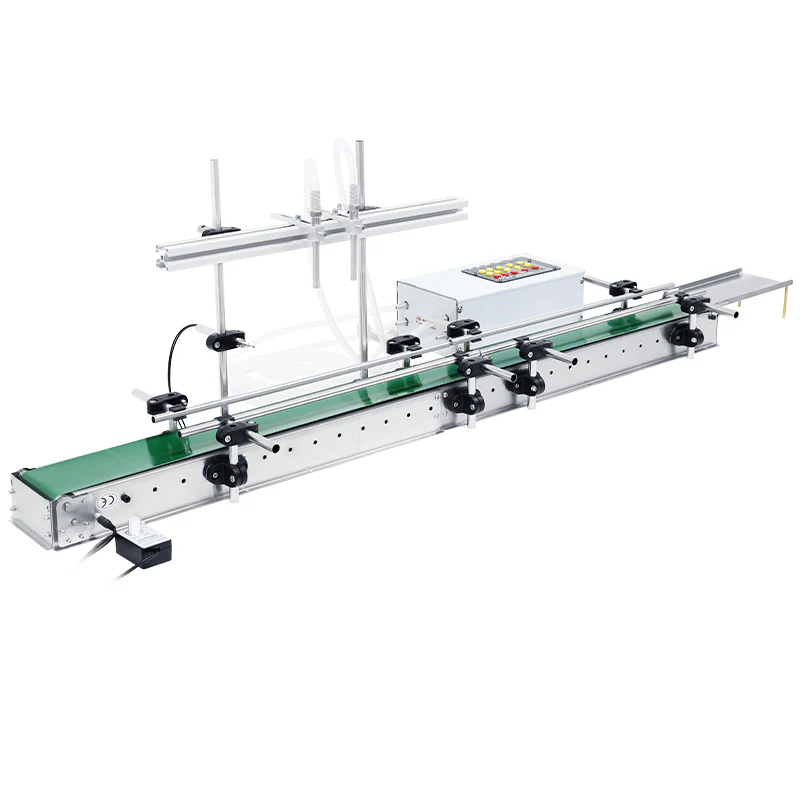

ZONESUN ZS-DPYT200L 2-Head Liquid Filling Machine with Long Conveyor

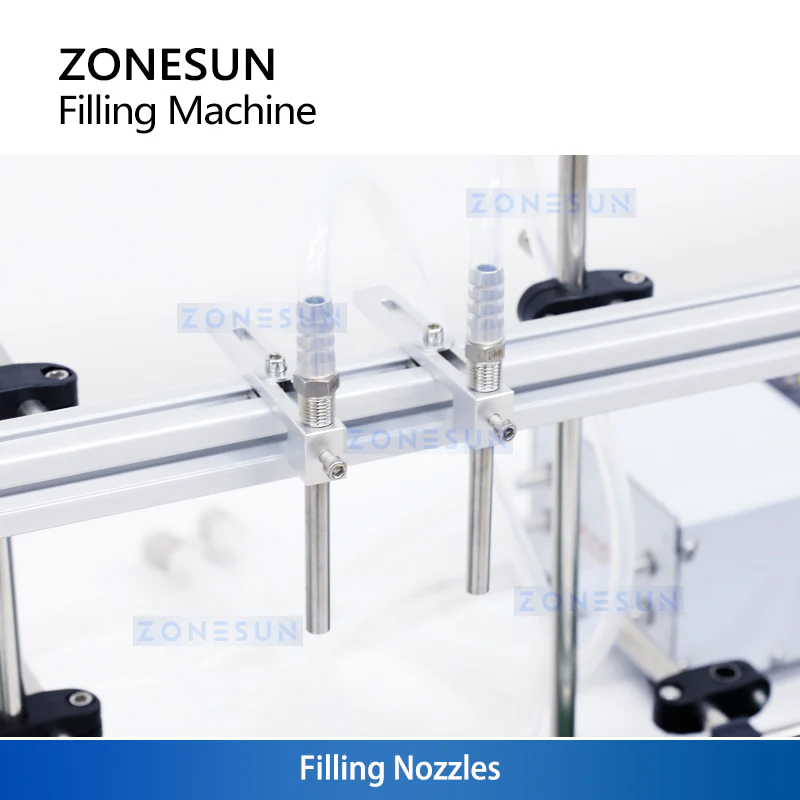

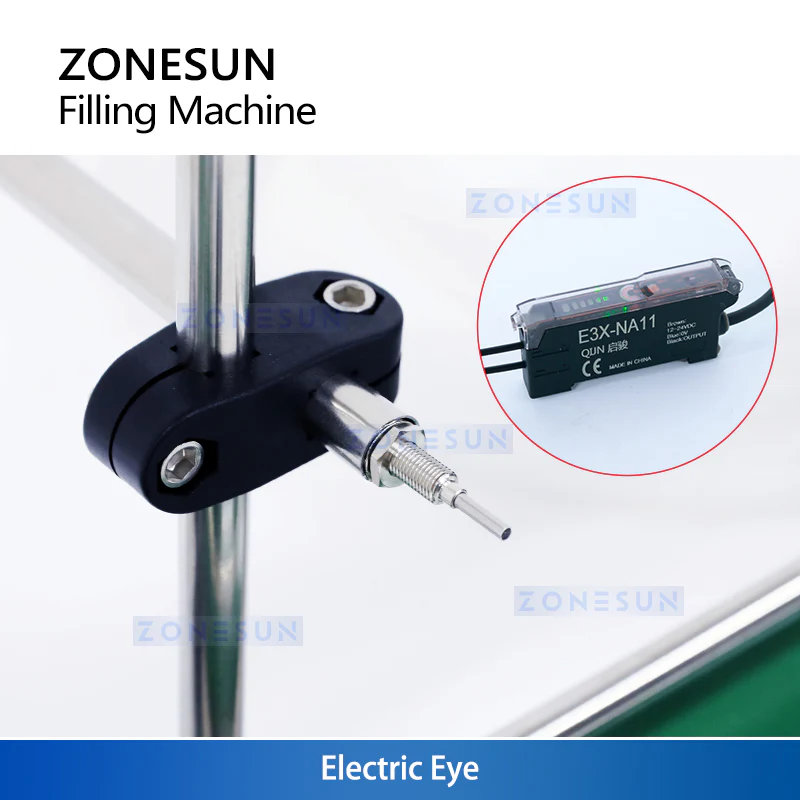

The ZS-DPYT200L is a compact automatic liquid filling machine designed for low-viscosity liquids like essential oils, juice, and milk. Featuring dual nozzles with independent speed control, a waterproof extended conveyor, and a smart electric eye for precise bottle detection, it’s ideal for small workshops and startup production lines.

PARAMETER
Machine Model: ZS-DPYT200L
Voltage: 110V/220V, 50–60Hz
Maximum Flow Rate: 3L/min (based on water)
Filling Speed: Adjustable from 1 to 99
Filling Nozzle Diameter: 9mm
Hose Length: 0.8m (inlet), 1.2m (outlet)
Liquid Capacity: ≤6kg
Conveyor Belt: Waterproof
Memory Function: Enabled
Conveyor Size: 1200mm (L) × 100mm (W)
Machine Size: Approx. 295mm × 155mm × 110mm (L × W × H)
Net Weight: 7.3kg
Package Size:
Conveyor: 670mm × 190mm × 160mm
Host Machine: 350mm × 210mm × 160mm
Gross Weight: 9.8kg
