ZONESUN ZS-VTGF2 Servo Gear Pump Viscous Liquid Tracking Filler

The ZS-VTGF2 is a high-performance servo-driven filling machine designed for viscous liquids such as lotion, soap, and detergent. Its dual nozzles track bottle movement during filling, ensuring precise volume control and minimizing waste. Ideal for medium to large-scale production, this system combines speed, accuracy, and intelligent automation in a compact footprint.

Parameter

• Machine model:ZS-VTGF2
• Power supply:110/220V 50-60HZ 5KW
• Filling pump:Gear Pump
• Filling range:100-3000ml
• Bottle size:H=80-180mm W=15-120mm
• Working speed:About 20-80 bottles/min (2 heads)
• Filling accuracy:About ±0.5%
• Air pressure:About 0.5-0.8MPa
• Machine size:About 2900*1400*1980mm(L*W*H)
• Machine weight: About 390kg

Equipped with PLC control panel, the customizable interface simplify machine operation, different kinds of operation language can be customized as needed.The rotatable touch screen improves user experience.

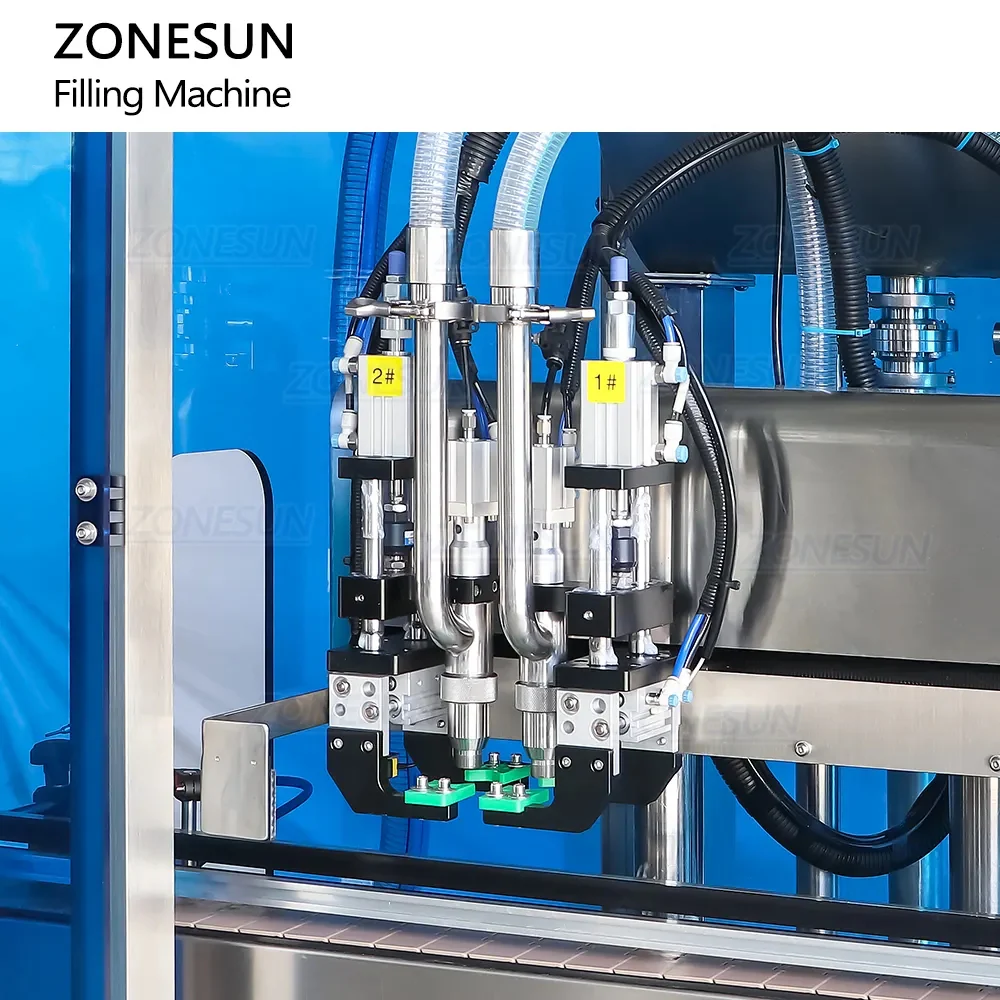

The filling nozzle will follow the bottle during the filling process and fill the material while moving, multiple filling nozzles can be customized as production need.

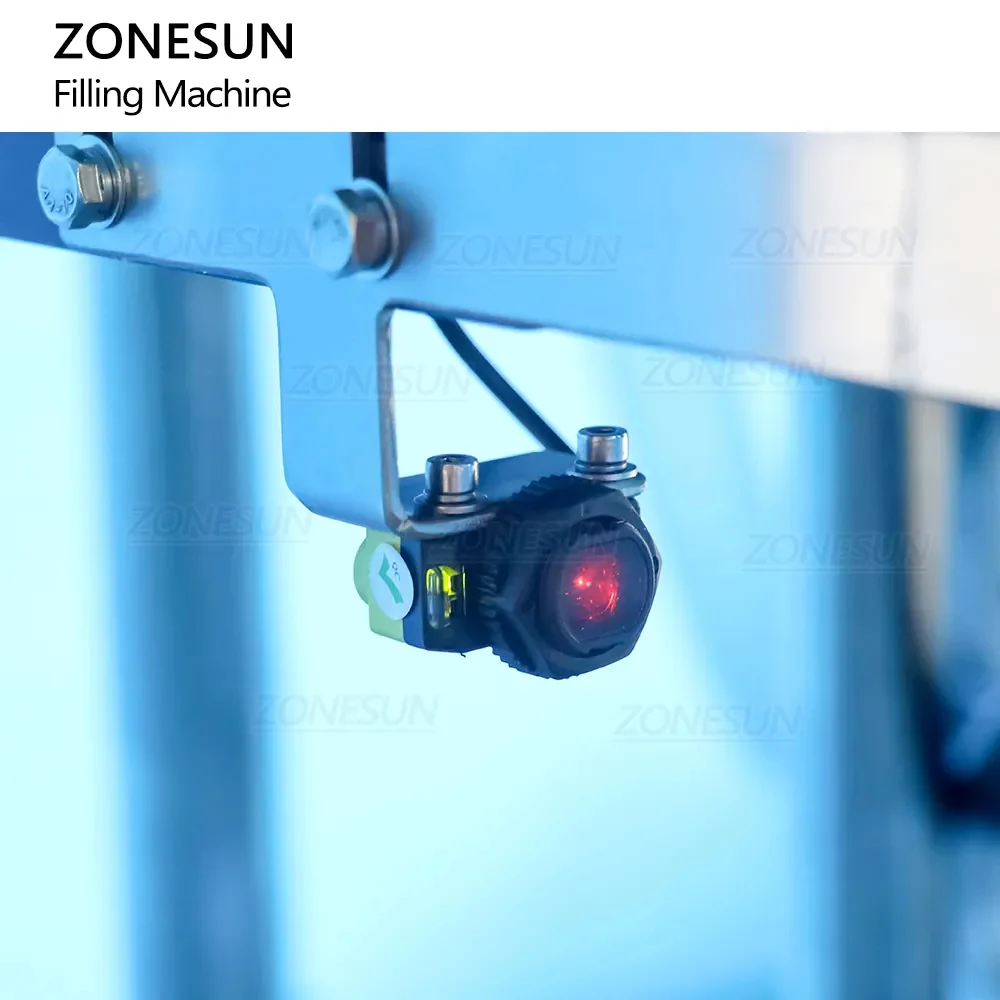

The electric eye is used to detect passing by bottles and control the machine to work automatically, the sensitivity can be adjusted to improve working accuracy.

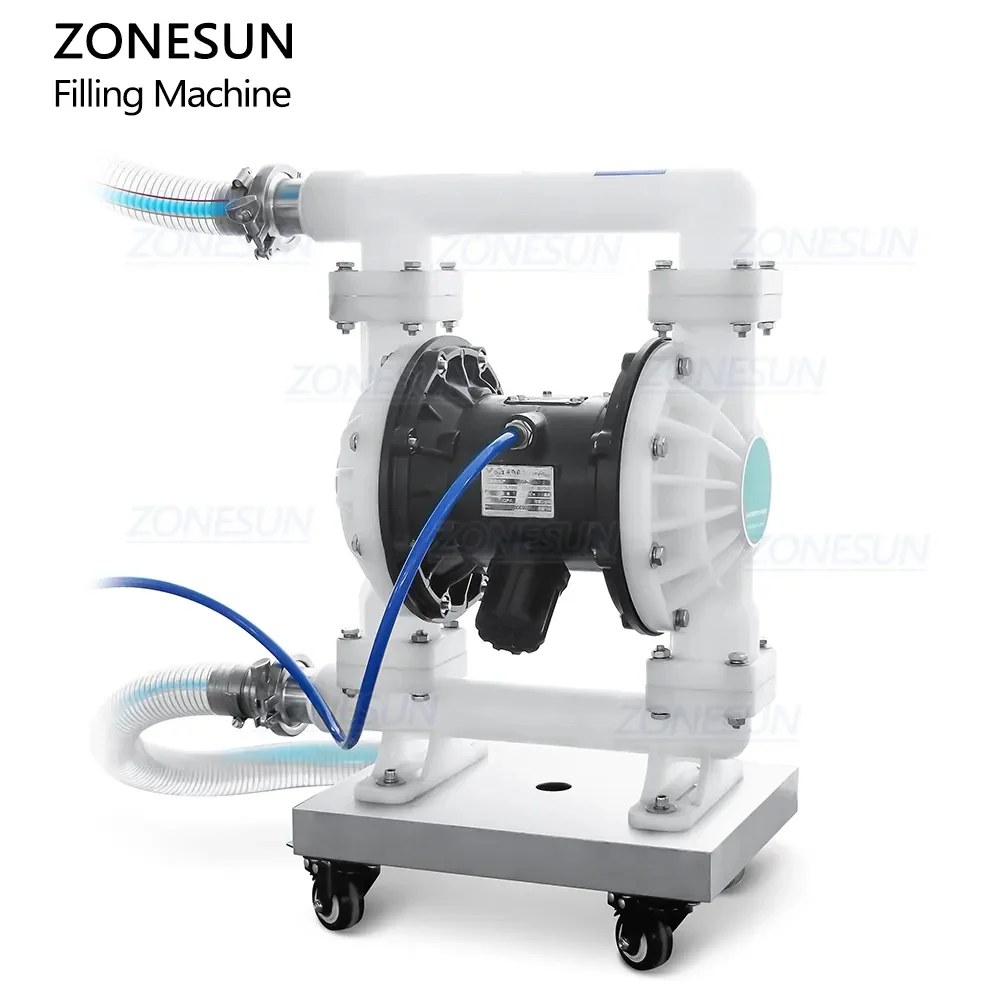

Equipped with diaphragm pump, it can supply filling material in time , saves labor to pour filling material into hopper.

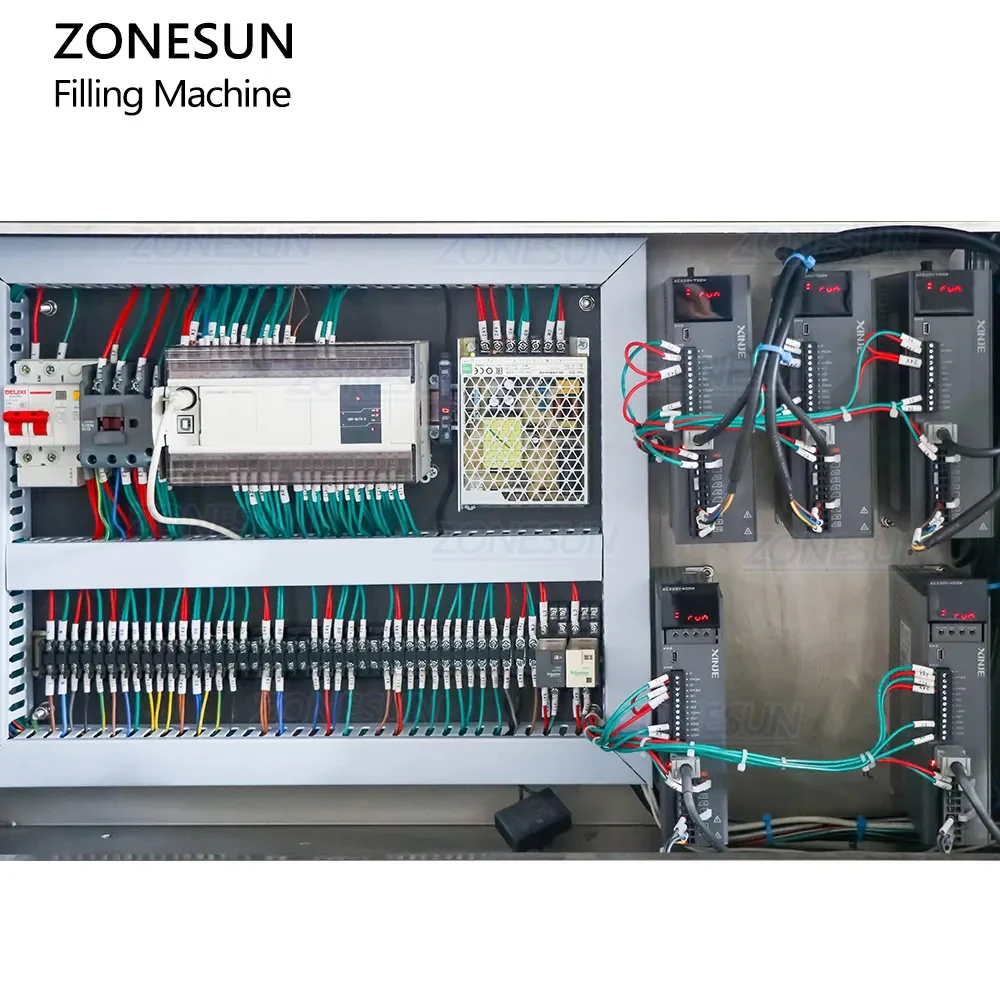

This machine is controlled by servo motor, which ensure the high filling speed and filling accuracy.The electric circuit is arranged neatly, makes sure machine work stably and easy to check or debug.
