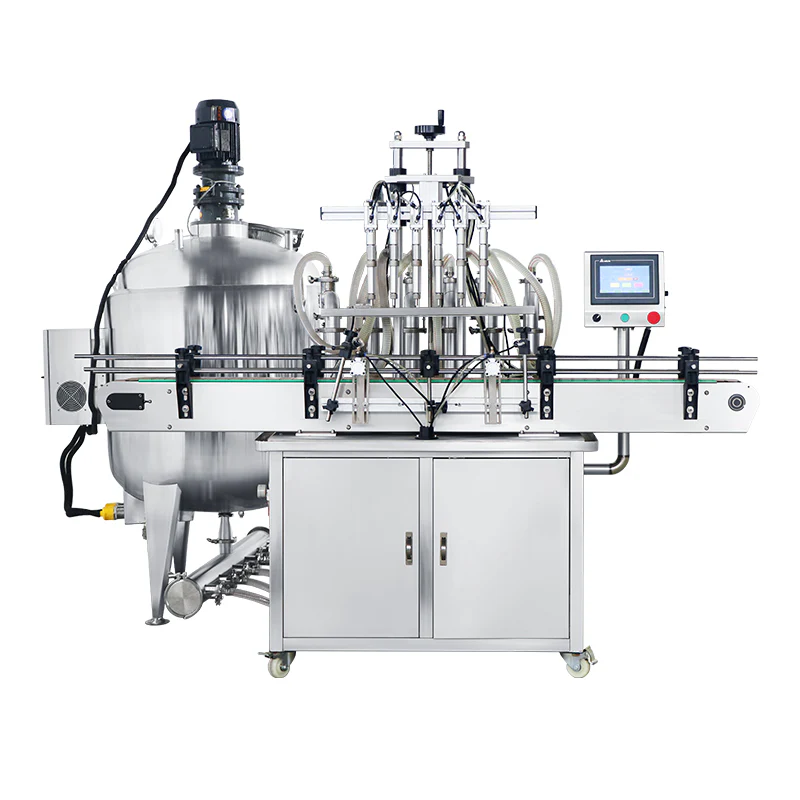

ZONESUN ZS-YT6T-6V Paste Filling Machine with 400L Mixing Heating Tank

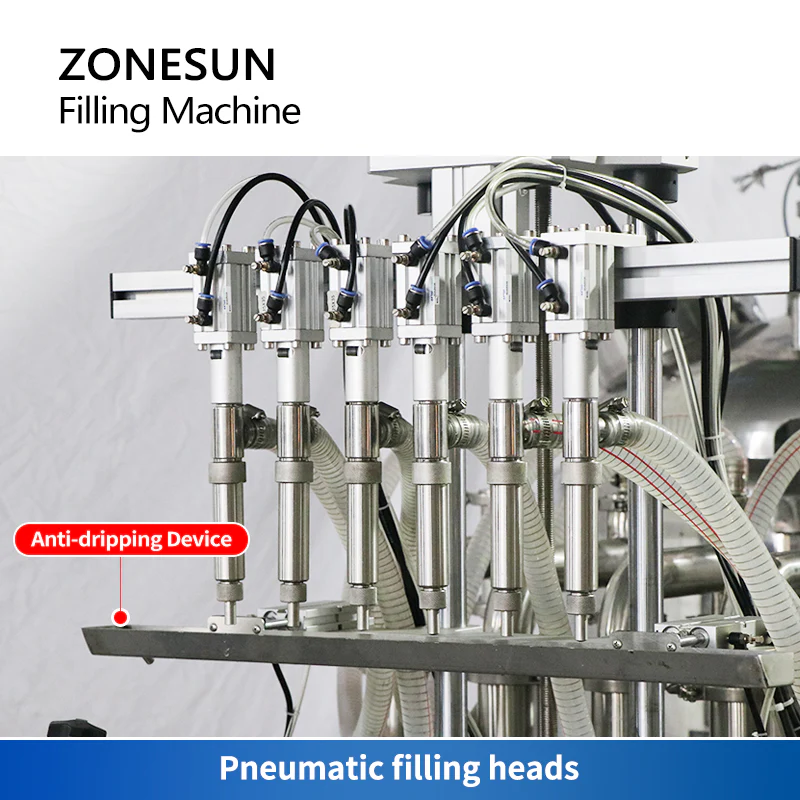

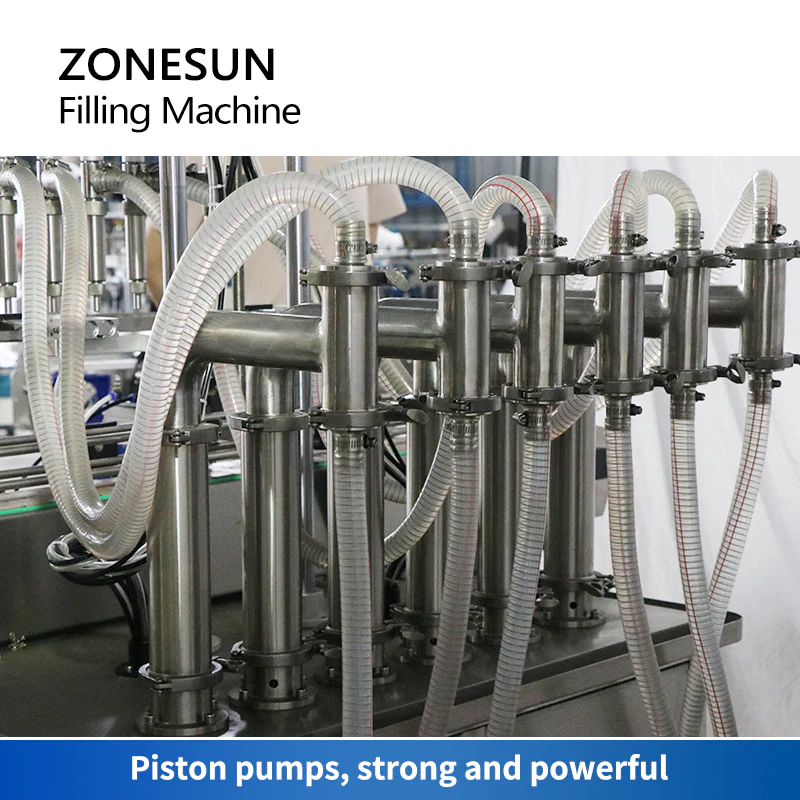

The ZONESUN ZS-YT6T-6V is a high-performance filling system designed for viscous liquids and pastes. It combines a pneumatic piston pump filler with a 400L stainless steel mixing and heating tank, capable of emulsifying, stirring, and maintaining temperature for consistent product flow. Ideal for cosmetics, creams, lotions, and daily chemical products, this machine supports a wide filling range from 5ml to 5000ml and operates at speeds up to 40 bottles per minute. The system features adjustable conveyors, precise filling accuracy (≤ ±1%), and robust construction for industrial-grade reliability.

ZONESUN ZS-YT6T-6Y Automatic Filling Machine
Multi-Range Pneumatic Filler for Liquids & Pastes
Technical Specifications
Parameter Details
Model ZS-YT6T-6Y
Voltage 110V / 220V, 50–60Hz
Power 800 W
Filling Range 5–100 / 10–300 / 50–500 / 100–1000 / 500–3000 / 1000–5000 ml
Working Speed 30–40 bottles/min
Filling Accuracy ≤ ±1%
Air Pressure 0.5–0.7 MPa
Air Compressor Connector Φ10 mm
Conveyor Length 2050 mm (standard) / 3050 mm (wider version)
Conveyor Material Plastic (standard) / Stainless Steel (customized)
Package Size Approx. 2110 × 1010 × 1000 mm (100–1000ml model)
Package Weight Approx. 476 kg

ZONESUN ZS-MB400LH Mixing & Heating Tank
400L Stainless Steel Tank for Stirring & Heating Liquids
Technical Specifications
Parameter Details
Model ZS-MB400LH
Voltage 220V, 50–60Hz
Tank Capacity 400 L (Customizable)
Tank Size Diameter: 800 mm, Height: 1000 mm
Stirring Motor 1.1 kW
Rotating Speed 40 r/min
Heating Power 12 kW
Material 304 Stainless Steel
Package Size Approx. 1300 × 1100 × 2160 mm
Gross Weight Approx. 403 kg
