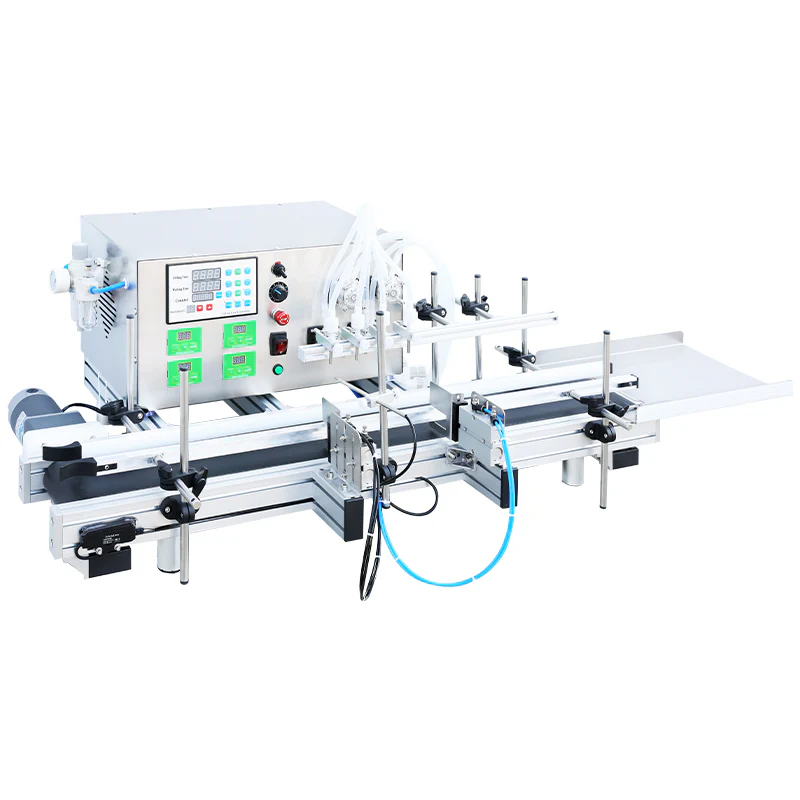

ZONESUN ZS-DTPP4W Automatic 4 Nozzles Peristaltic Pump Liquid Filling Machine

DESCRIPTION

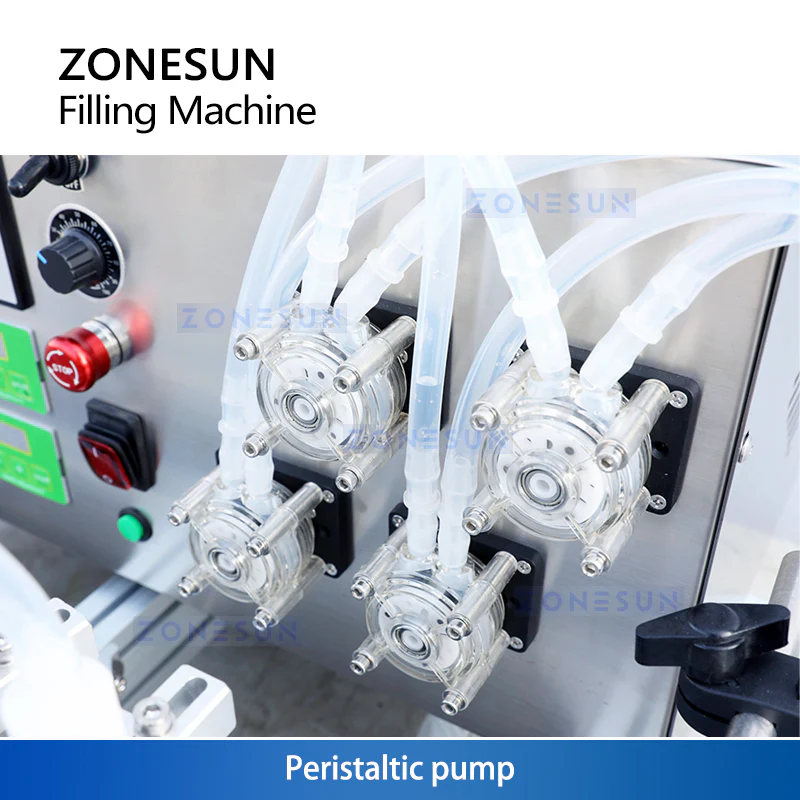

Compared with other desktop filling machine,this one is equipped with peristaltic pump.The biggest advantage of this machine is that the liquid will be filled without passing through the pump.

APPLICATION

People buy this machine for filling edible products like milk,water,beverage,soybean milk etc.Make sure the liquid is clean after filling.it can be also used to fill corrosive liquid or organic solvent like eye care products,essential oil etc.

PARAMETER

• Model: ZS-DTPP4W

• Power: 20W（Each Pump）

• Recommend filling volume: 3-50ml

• Maximum flow: 650ml/min for each nozzle(based on  water

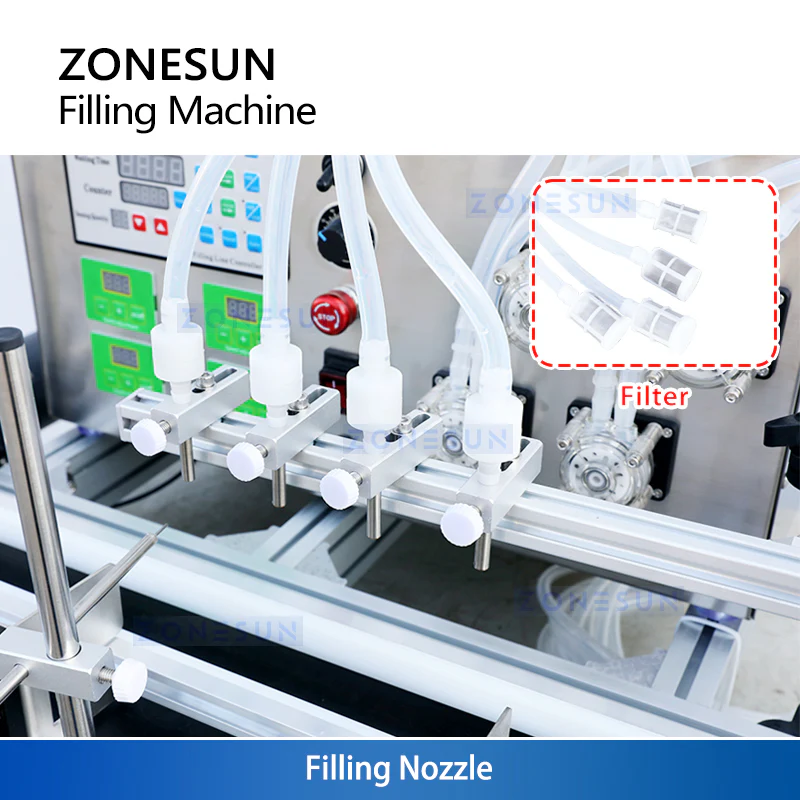

• Filling nozzle: 4 Nozzle ( Can be customized)

• Working speed: 30-50 bottles/min (based on bottle and liquid)

• Air pressure: 0.3-0.4 mpa

• Filling accuracy: ≤±1%

• Dimension of filling nozzle: Standard 8mm and 6mm

• Delay range: 0.01s-999.9s

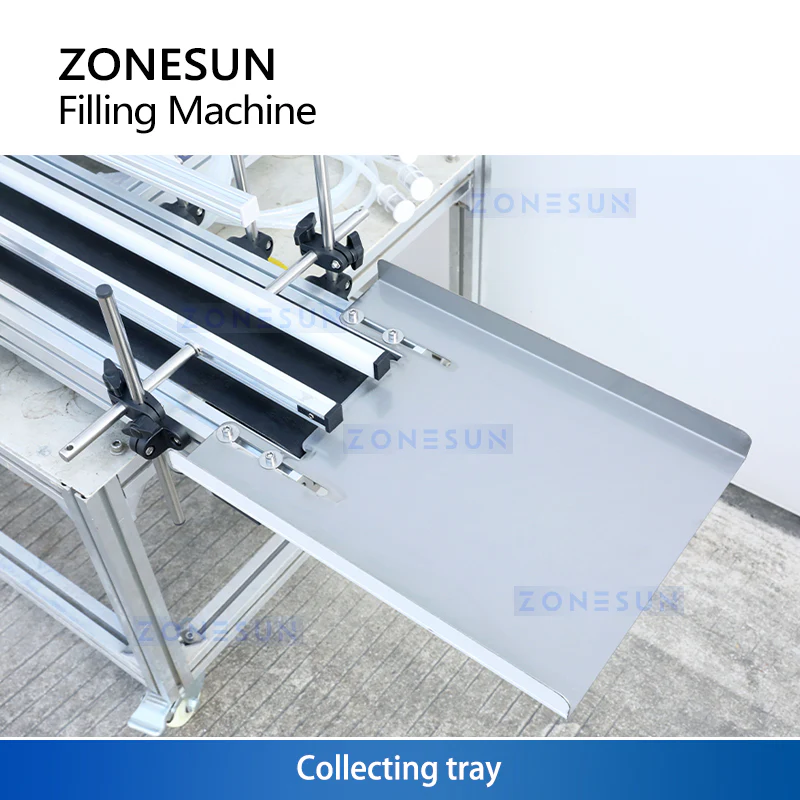

• Belt length: 1.0m
