ZONESUN ZS-YT4T-4D Automatic Liquid Filling Machine with 4 Nozzles

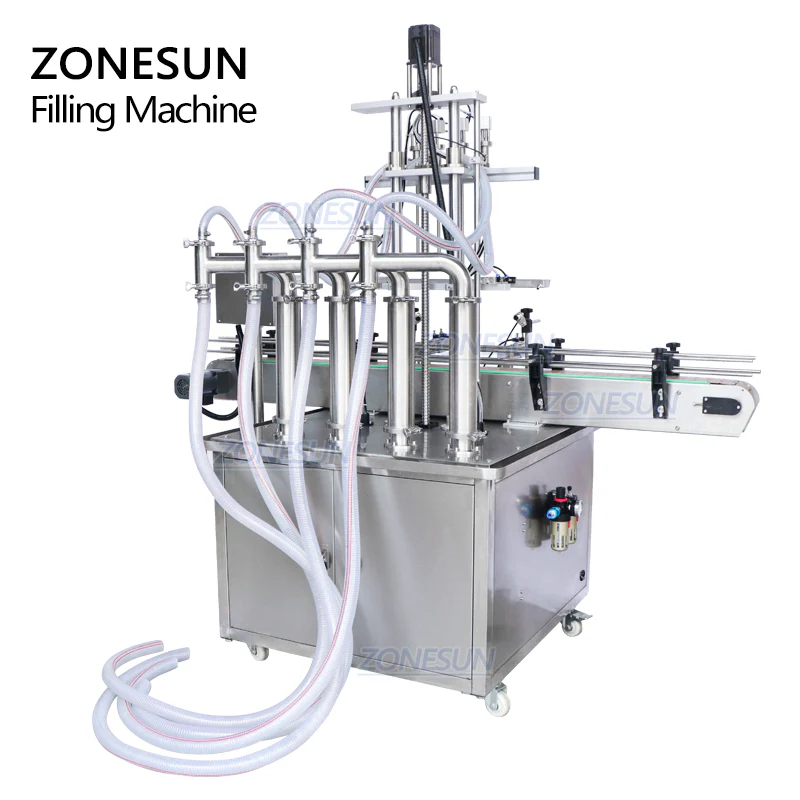

The ZS-YT4T-4D is a high-efficiency automatic liquid filling machine equipped with diving nozzles, ideal for foamy and non-foamy liquids such as shampoo, juice, and detergent. Featuring PLC control, precise bottle detection, and a stable conveyor system, it’s perfect for streamlining production in cosmetic, beverage, and pharmaceutical industries. Compatible with capping and labeling machines for full automation.
Parameter
|
Model |
ZS-YT2T-2D |
ZS-YT4T-4D |
ZS-YT6T-6D |
ZS-YT8T-8D |
|
Voltage |
110/220V 50-60HZ 600W |
|||
|
Filling Range |
5-100ml/10-300m/50-500ml/100-1000ml/500-3000ml/1000-5000ml |
|||
|
Working Speed(based on water) |
10-30botles/min |
20-35bottles/min |
30-40bottles/min |
35-45bottles/min |
|
Filling Nozzle Type |
Lifting Filling Nozzle(Suitable for foamy liquid) |
|||
|
Filling Accuracy |
≤士1% |
|||
|
Air Pressure |
0.5-0.7MPa |
|||
|
Conveyor length |
2050mm(standard) |
|||
|
Conveyor material |
Plastic (standard)/stainless steel (custom version) |
|||
|
Size of air compressor connector |
OD 10mm |
|||
|
Machine weight |
220kgs |
262kgs |
300kgs |
500kgs |
|
Dimension |
210x86x146cm |
202*102*205cm |
320x86x146cm |
250x110x160cm |







Original: $5,647.63
-70%$5,647.63
$1,694.29Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The ZS-YT4T-4D is a high-efficiency automatic liquid filling machine equipped with diving nozzles, ideal for foamy and non-foamy liquids such as shampoo, juice, and detergent. Featuring PLC control, precise bottle detection, and a stable conveyor system, it’s perfect for streamlining production in cosmetic, beverage, and pharmaceutical industries. Compatible with capping and labeling machines for full automation.
Parameter
|
Model |
ZS-YT2T-2D |
ZS-YT4T-4D |
ZS-YT6T-6D |
ZS-YT8T-8D |
|
Voltage |
110/220V 50-60HZ 600W |
|||
|
Filling Range |
5-100ml/10-300m/50-500ml/100-1000ml/500-3000ml/1000-5000ml |
|||
|
Working Speed(based on water) |
10-30botles/min |
20-35bottles/min |
30-40bottles/min |
35-45bottles/min |
|
Filling Nozzle Type |
Lifting Filling Nozzle(Suitable for foamy liquid) |
|||
|
Filling Accuracy |
≤士1% |
|||
|
Air Pressure |
0.5-0.7MPa |
|||
|
Conveyor length |
2050mm(standard) |
|||
|
Conveyor material |
Plastic (standard)/stainless steel (custom version) |
|||
|
Size of air compressor connector |
OD 10mm |
|||
|
Machine weight |
220kgs |
262kgs |
300kgs |
500kgs |
|
Dimension |
210x86x146cm |
202*102*205cm |
320x86x146cm |
250x110x160cm |
