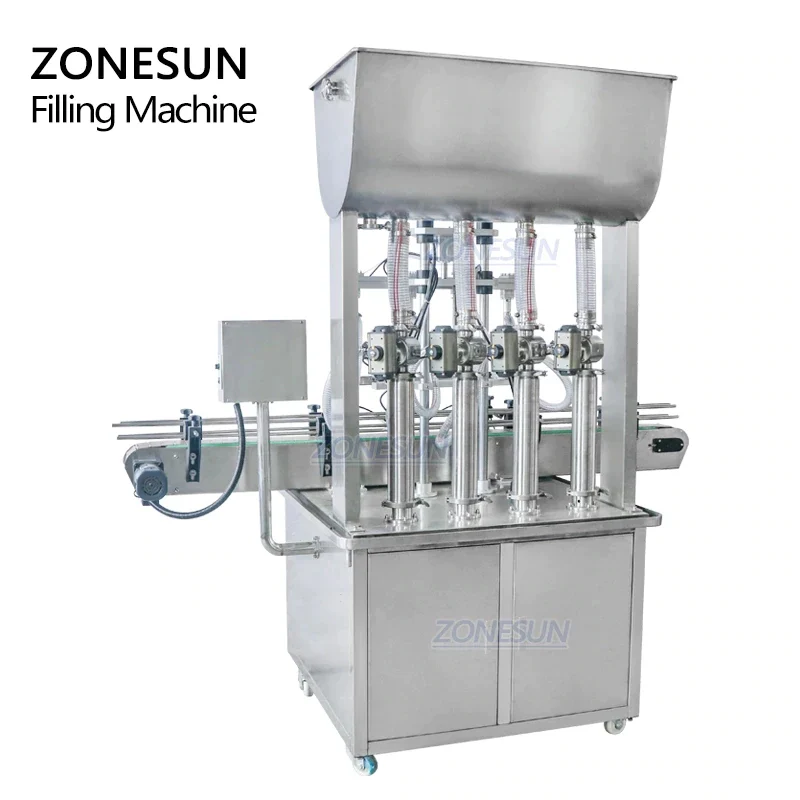

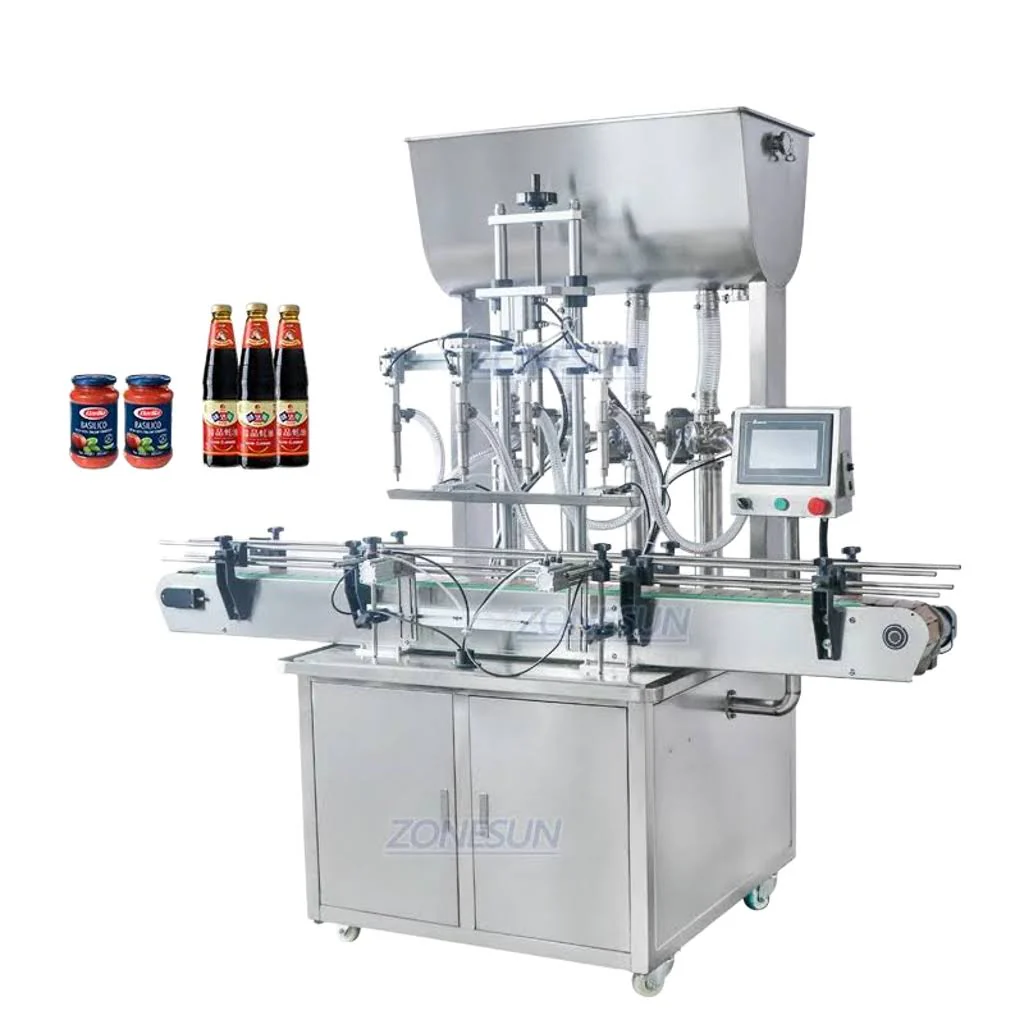

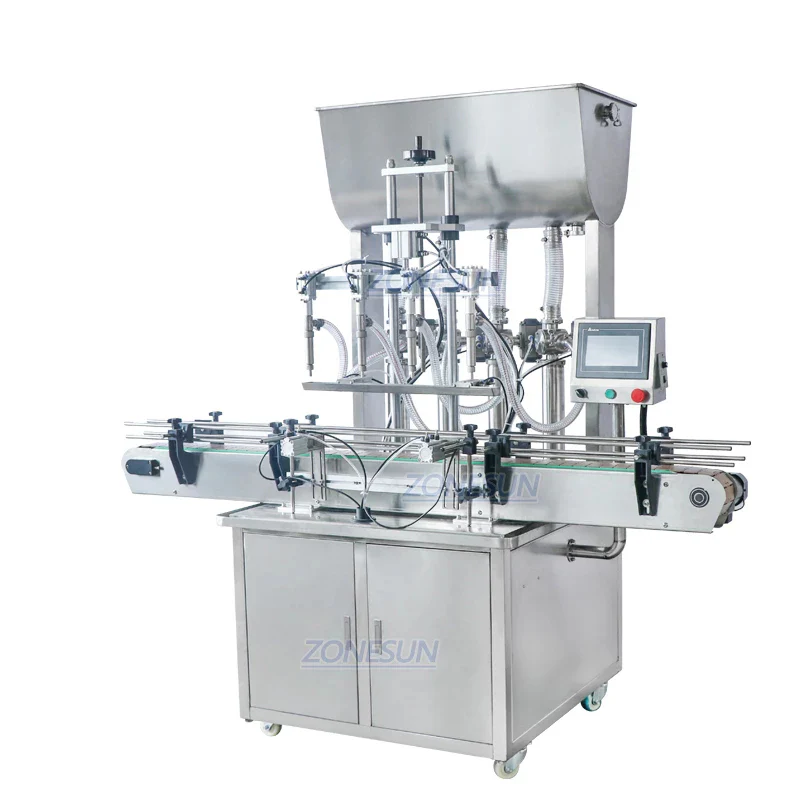

ZONESUN ZS-YT4T-4P Automatic 4 Nozzle Paste Filling Machine

Name: ZONESUN ZS-YT4T-4P Automatic 4 Nozzle Paste Filling Machine
Brand: ZONESUN PACKAGING MANUFACTURER
SKU: zonesun-automatic-filling-machinery-cans-beer-arequipe-honey-paste-oil-filling-packing-machines-food-beverage-machinery
Availability: InStock

Description

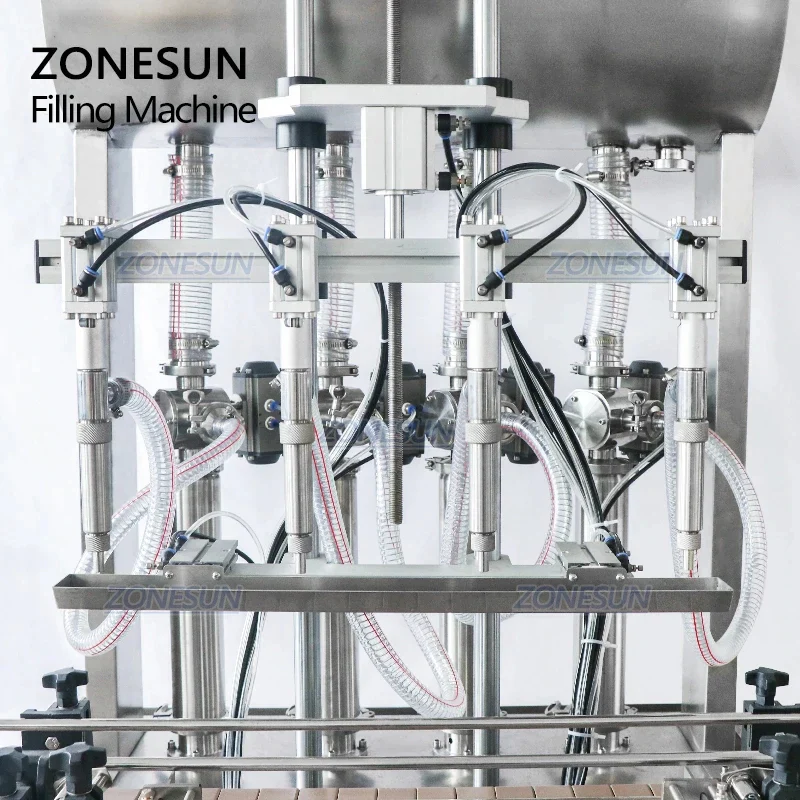

This 4 nozzles paste filling machine is designed for filling paste like curry paste,tomato sauce,pepper sauce,each nozzle can be controlled separately,the filling range and speed are adjustable according to operation.This machine can work with capping machine and labeling machine to realize automated production.

Application

It is widely used in the flling of various semi-fluids, pastes, viscous bodies, sauces and various granule-containing materials, such as pulp-containing beverages, honey, jams, ketchup, chili sauce, bean paste, shrimp paste, apple Sauce, salad dressing, etc.

Parameter

Model	ZS-YT2T-2P	ZS-YT4T-4P	ZS-YT6T-6P	ZS-YT8T-8P
Voltage	110/220V 50-60HZ 800W
Filling Range	5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml
Working Speed (base on water)	10-40bottles/min	20-50bottles/min	30-70bottles/min	40-80bottles/min
Filling Accuracy	≤+1%
Conveyor Size	About 1990100mm(LW)
Filling Nozzle Size	Φ10mm
Size of air compressor connector	Φ10mm
Machine Size	About 19909501970mm(4 Heads)
Package Weight	220kg	260kg	300kg	600kg
Package Size	20001200 2300mm	20001200 2300mm	25001300 2300mm	28001300 2500mm

Notice

This machine need customized your bottle size so if you want to buy it please contact with us first time.And the machine is very heavy,contact with us get the cheaper shipping cost,thank you for your support.
