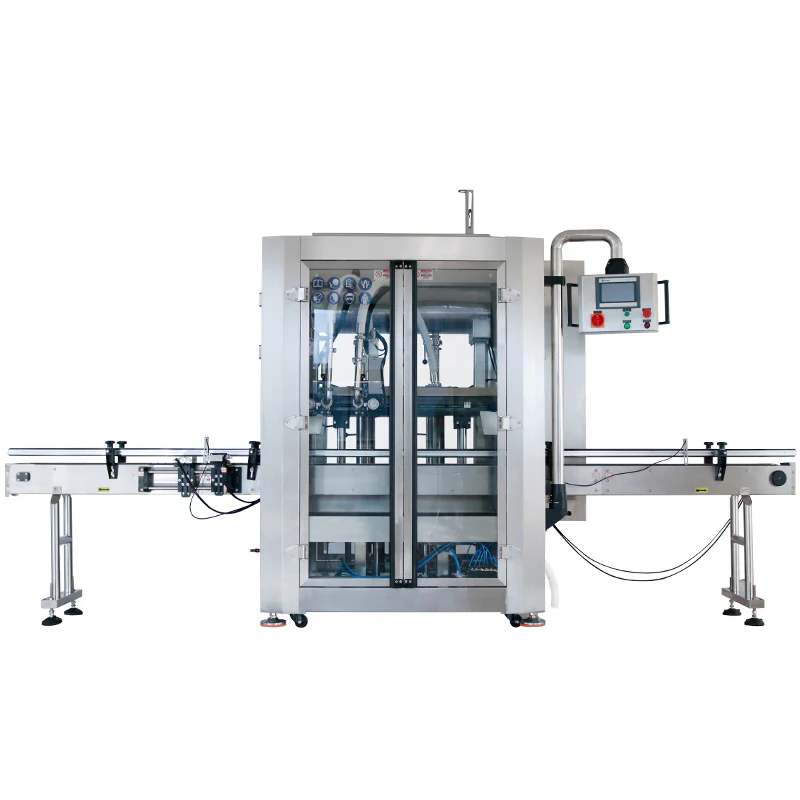

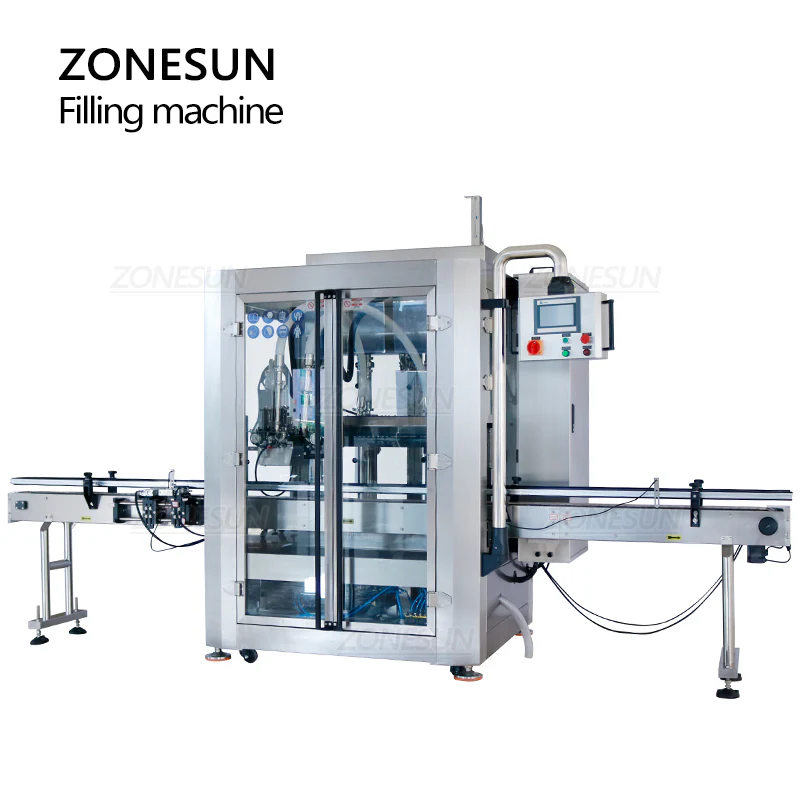

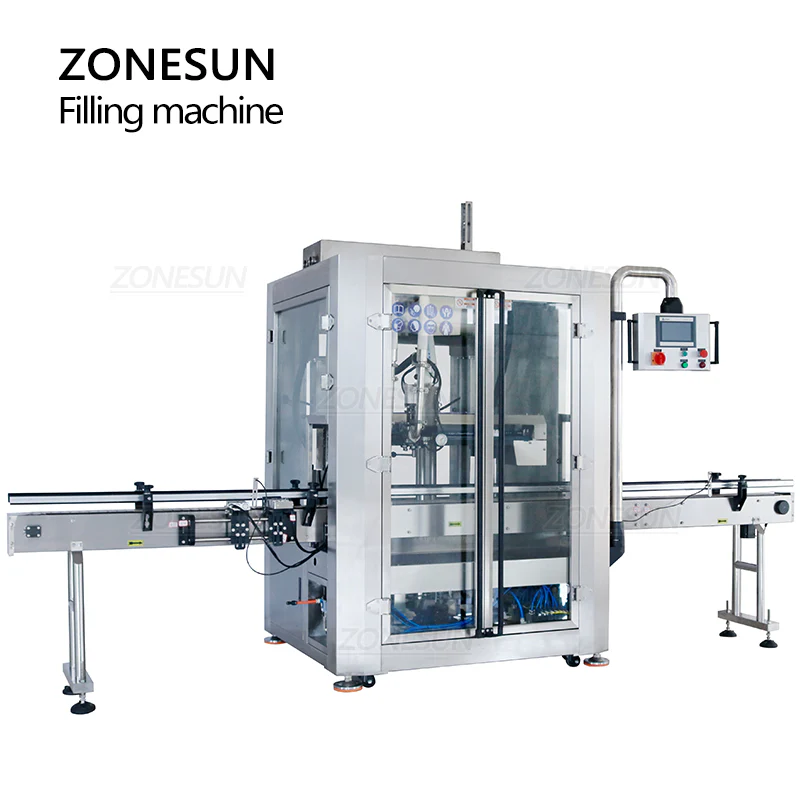

ZONESUN ZS-VTPF2 Automatic Liquid Filling Machine for Paste & Cream

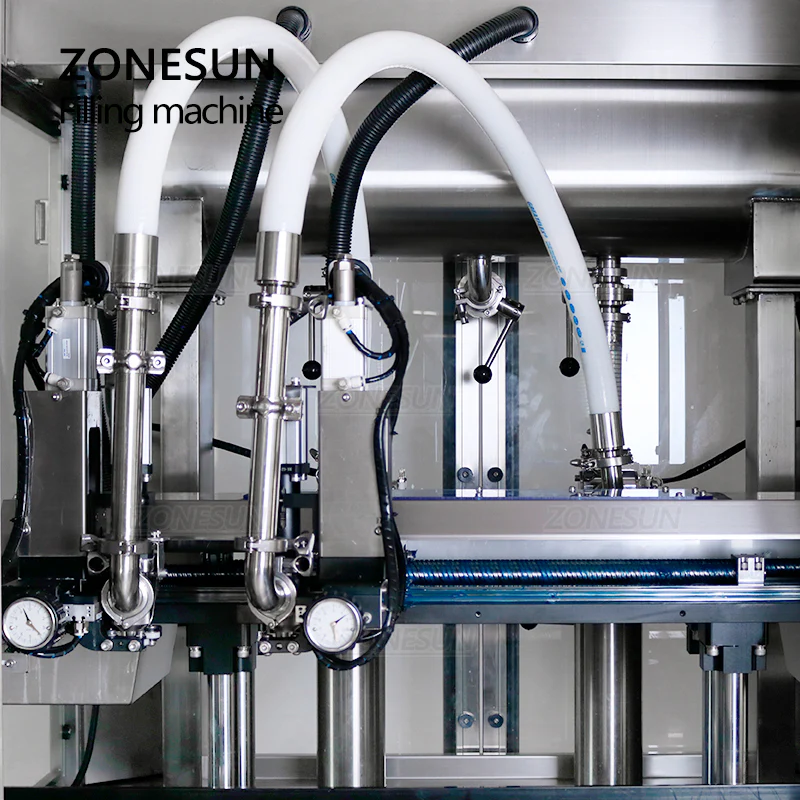

The ZS-VTPF2 Automatic Filling Machine is designed for high-efficiency, precision filling of liquids and pastes such as cream, honey, shampoo, and detergent. Equipped with dual tracking heads, it fills while bottles are in motion—eliminating downtime and boosting productivity. Its intelligent electric eye ensures accurate bottle detection, while the high-precision piston guarantees consistent fill volumes. The movable stock bin simplifies material feeding and cleaning, and the stable chain conveyor supports seamless integration into automated production lines. Ideal for pharmaceutical, beverage, and daily chemical industries.
Parameter Specification
Model ZS-VTPF2
Voltage 380V
Power 3.4kW
Filling Head 2 Heads
Filling Range 200–2000mL (Customizable)
Filling Speed 2400–3600 bottles/hour (depends on material & bottle size)
Filling Accuracy ±1%
Air Pressure 0.6–0.7Mpa
Air Consumption 6–7m³/min
Machine Material Stainless Steel
Machine Size 3000 × 1500 × 2100mm
Machine Weight 650kg
Original: $18,799.00
-70%$18,799.00
$5,639.70Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The ZS-VTPF2 Automatic Filling Machine is designed for high-efficiency, precision filling of liquids and pastes such as cream, honey, shampoo, and detergent. Equipped with dual tracking heads, it fills while bottles are in motion—eliminating downtime and boosting productivity. Its intelligent electric eye ensures accurate bottle detection, while the high-precision piston guarantees consistent fill volumes. The movable stock bin simplifies material feeding and cleaning, and the stable chain conveyor supports seamless integration into automated production lines. Ideal for pharmaceutical, beverage, and daily chemical industries.
Parameter Specification
Model ZS-VTPF2
Voltage 380V
Power 3.4kW
Filling Head 2 Heads
Filling Range 200–2000mL (Customizable)
Filling Speed 2400–3600 bottles/hour (depends on material & bottle size)
Filling Accuracy ±1%
Air Pressure 0.6–0.7Mpa
Air Consumption 6–7m³/min
Machine Material Stainless Steel
Machine Size 3000 × 1500 × 2100mm
Machine Weight 650kg
