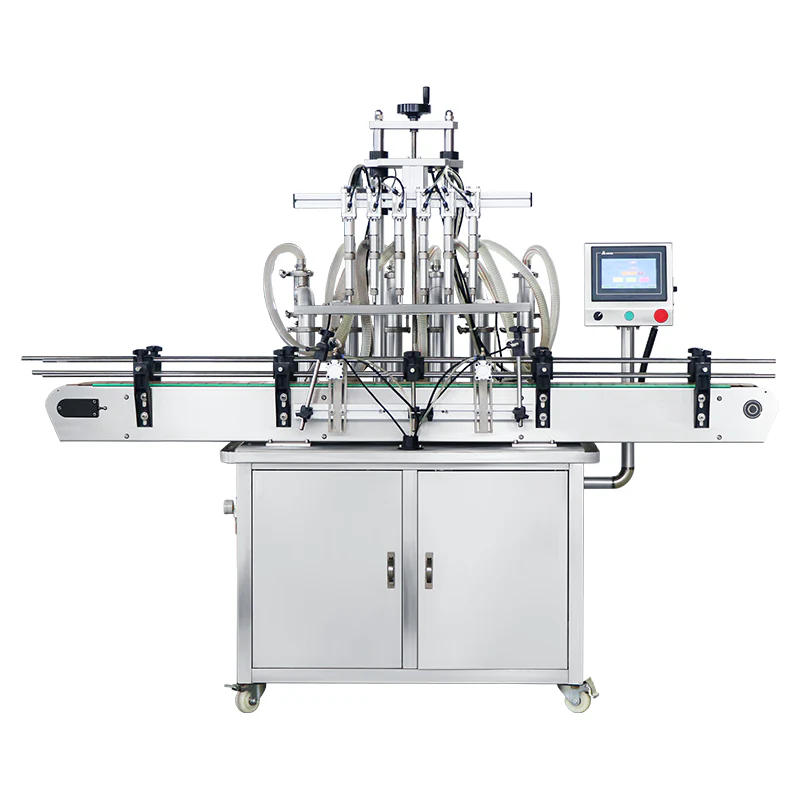

ZONESUN ZS-YT6T-6Y Automatic Pneumatic Liquid Piston Filling Machine
DESCRIPTION

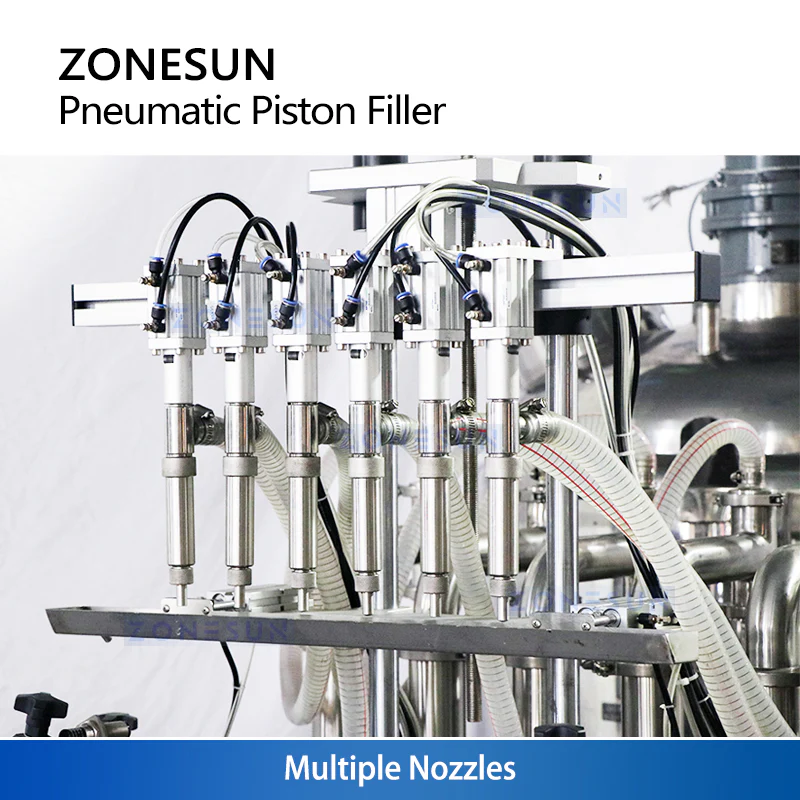

The ZONESUN ZS-YT6T-6Y is a high-performance automatic liquid filling machine designed for precision and efficiency. Featuring six synchronized filling heads, it’s ideal for medium to large-scale production lines. Its compact structure and sleek stainless steel finish make it suitable for food, cosmetic, chemical, and pharmaceutical industries. Built with imported components, this machine ensures stable operation and long-term durability. Easy to operate and maintain, it’s a reliable solution for businesses seeking consistent filling quality across a wide range of liquid products.
ZONESUN Liquid Filling Machine Specifications
| Parameter | ZS-YT2T-2Y | ZS-YT4T-4Y | ZS-YT6T-6Y | ZS-YT8T-8Y |
|---|---|---|---|---|
| Voltage | 110/220V 50–60Hz, 800W | 110/220V 50–60Hz, 800W | 110/220V 50–60Hz, 800W | 110/220V 50–60Hz, 800W |
| Filling Range | 5–100ml / 10–300ml / 50–500ml / 100–1000ml / 500–3000ml / 1000–5000ml | Same | Same | Same |
| Working Speed | 10–30 bottles/min | 20–35 bottles/min | 30–40 bottles/min | 35–45 bottles/min |
| Filling Accuracy | ≤ ±1% | ≤ ±1% | ≤ ±1% | ≤ ±1% |
| Air Pressure | 0.5–0.7 MPa | 0.5–0.7 MPa | 0.5–0.7 MPa | 0.5–0.7 MPa |
| Air Compressor Connector Size | φ10 mm | φ10 mm | φ10 mm | φ10 mm |
| Conveyor Length | 2050 mm (standard) / 3050 mm (wide) | Same | Same | Same |
| Conveyor Material | Plastic (standard) / Stainless Steel (custom) | Same | Same | Same |
| Machine Weight | 220 kg | 260 kg | 300 kg | 500 kg |
| Machine Size (L×W×H) | 2100×860×1460 mm | 2600×860×1460 mm | 3200×860×1460 mm | 2500×1100×1600 mm |
Original: $4,599.00
-70%$4,599.00
$1,379.70Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
DESCRIPTION
The ZONESUN ZS-YT6T-6Y is a high-performance automatic liquid filling machine designed for precision and efficiency. Featuring six synchronized filling heads, it’s ideal for medium to large-scale production lines. Its compact structure and sleek stainless steel finish make it suitable for food, cosmetic, chemical, and pharmaceutical industries. Built with imported components, this machine ensures stable operation and long-term durability. Easy to operate and maintain, it’s a reliable solution for businesses seeking consistent filling quality across a wide range of liquid products.
ZONESUN Liquid Filling Machine Specifications
| Parameter | ZS-YT2T-2Y | ZS-YT4T-4Y | ZS-YT6T-6Y | ZS-YT8T-8Y |
|---|---|---|---|---|
| Voltage | 110/220V 50–60Hz, 800W | 110/220V 50–60Hz, 800W | 110/220V 50–60Hz, 800W | 110/220V 50–60Hz, 800W |
| Filling Range | 5–100ml / 10–300ml / 50–500ml / 100–1000ml / 500–3000ml / 1000–5000ml | Same | Same | Same |
| Working Speed | 10–30 bottles/min | 20–35 bottles/min | 30–40 bottles/min | 35–45 bottles/min |
| Filling Accuracy | ≤ ±1% | ≤ ±1% | ≤ ±1% | ≤ ±1% |
| Air Pressure | 0.5–0.7 MPa | 0.5–0.7 MPa | 0.5–0.7 MPa | 0.5–0.7 MPa |
| Air Compressor Connector Size | φ10 mm | φ10 mm | φ10 mm | φ10 mm |
| Conveyor Length | 2050 mm (standard) / 3050 mm (wide) | Same | Same | Same |
| Conveyor Material | Plastic (standard) / Stainless Steel (custom) | Same | Same | Same |
| Machine Weight | 220 kg | 260 kg | 300 kg | 500 kg |
| Machine Size (L×W×H) | 2100×860×1460 mm | 2600×860×1460 mm | 3200×860×1460 mm | 2500×1100×1600 mm |
