ZONESUN 4 Nozzles Liquid Filling Capping And Round Bottle Labeling Production Line

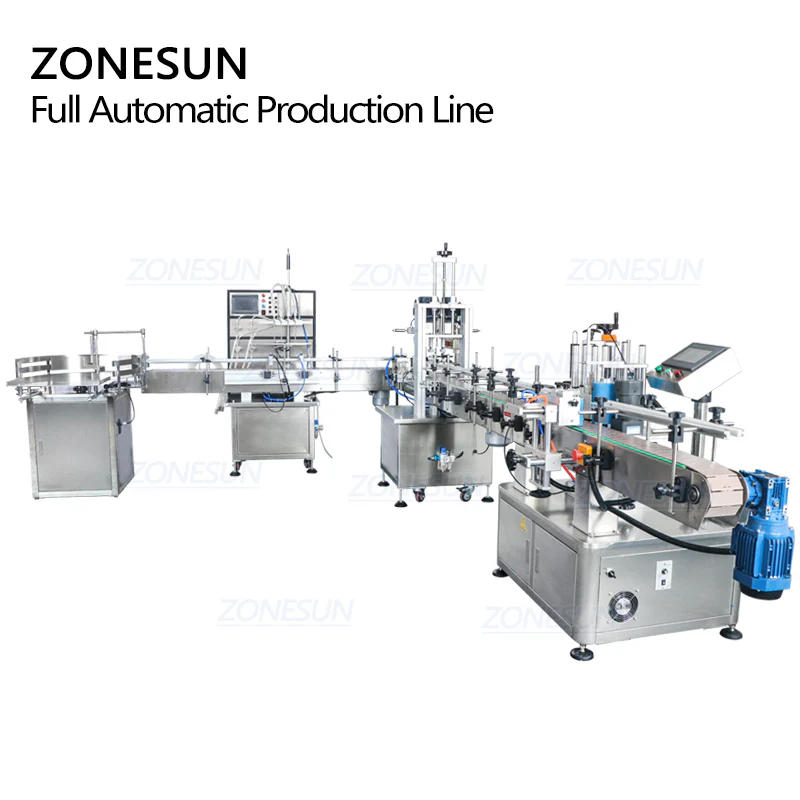

This automated production line integrates bottle unscrambling, liquid filling, capping, and labeling into one streamlined system. Designed to boost efficiency and reduce manual labor, it’s ideal for food, beverage, cosmetics, and pharmaceutical industries. Customizable to suit different materials and bottle types, it ensures smooth operation and consistent packaging quality across your production workflow.
Bottle Unscrambler Machine Specifications
Parameter Value
Suitable Bottle Diameter 20–100 mm
Suitable Bottle Height 30–120 mm
Working Speed 40–60 bottles/min (depends on bottle size)
Motor Power 0.2 KW
Power Supply 220V / 50–60 Hz
Net Weight 109.5 kg
Package Size 115 × 100 × 132 cm
Gross Weight 155 kg
Full Automatic Liquid Filling Machine Specifications
Specification Details
Container Size Φ20–160 mm, Height: 30–300 mm
Max Flow Rate 3000 ml/min, 5500 ml/min, 5500 ml/min, 7500 ml/min
Pump Material Plastic, 304 Stainless Steel, 316 Stainless Steel
Filling Accuracy ≤100 ml: ±1 ml<br>>100 ml: ±1% (based on water)
Filling Speed 20–40 pcs/min, 20–50 pcs/min, 25–60 pcs/min (depends on bottle & liquid)
Power Supply 220V–50Hz / 110V–60Hz
Machine Power 2 KW
Net Weight 114.5 kg
Gross Weight 195.5 kg
Package Size 2000 × 800 × 1560 mm

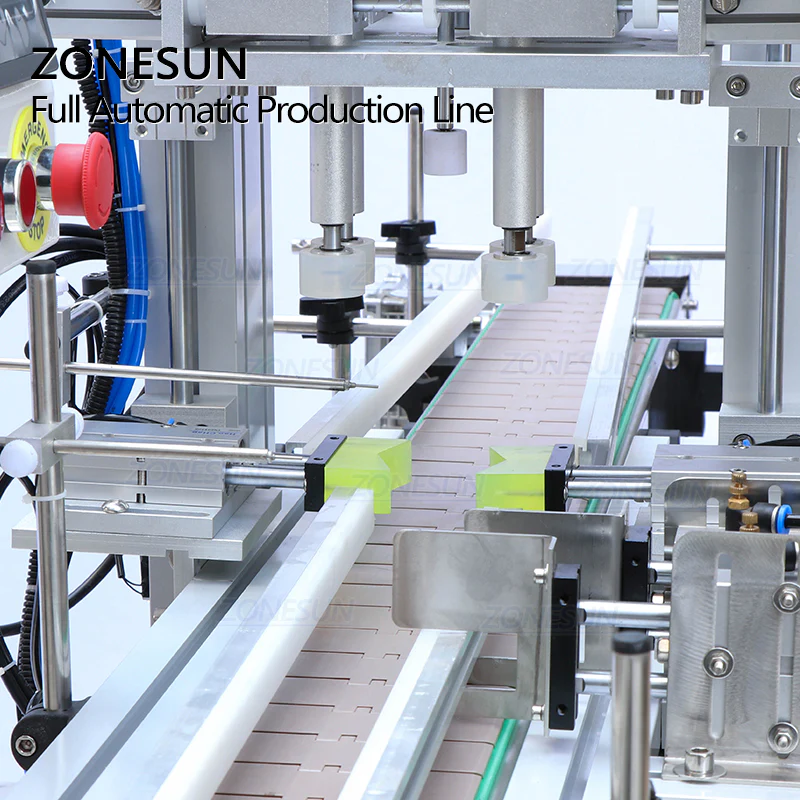

Full Automatic Capping Machine Specifications
Specification Value
Bottle Height 30–300 mm
Bottle Diameter 18–70 mm
Working Speed 20–60 bottles/min (depends on bottle and cap size/shape)
Working Voltage AC 220V / 110V, 50–60 Hz
Working Pressure 0.4–0.6 MPa
Machine Dimensions 1930 × 740 × 1600 mm
Package Size 2000 × 820 × 1760 mm
Net Weight 113 kg
Gross Weight 192.5 kg

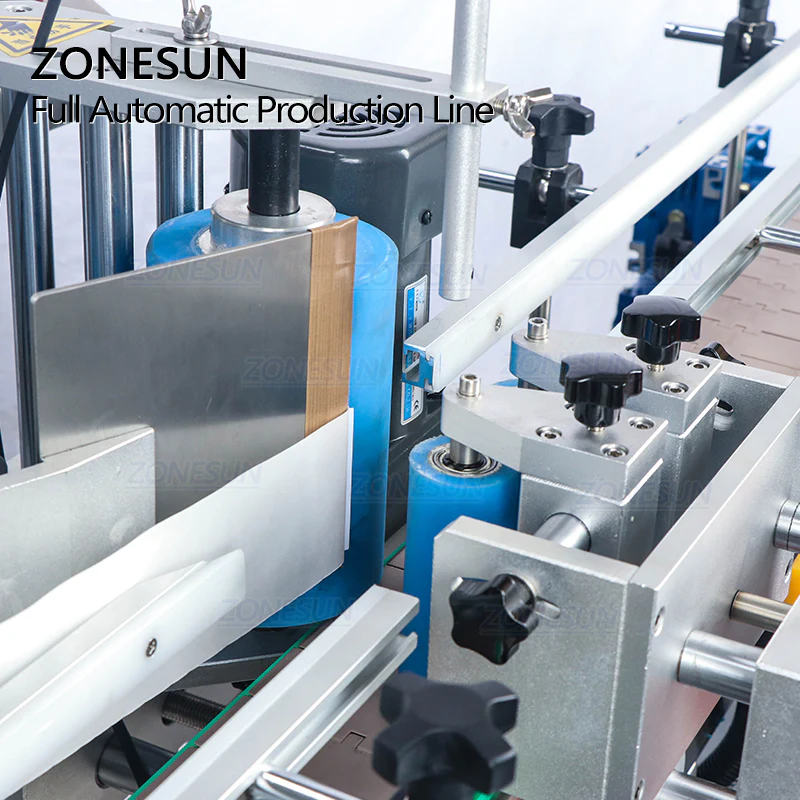

Full Automatic Labeling Machine Specifications
Specification Details
Labeling Capacity 25–50 pcs/min (depends on bottle size)
Labeling Accuracy ±1.0 mm
Bottle Diameter Φ30–100 mm
Label Size Length: 15–200 mm<br>Height: 15–150 mm
Label Roll Core Inner Diameter: Φ76 mm
Label Roll Outer Dia Max: Φ350 mm
Power Supply AC 220V, 50/60 Hz, 1500W
Net Weight 223.5 kg
Package Size 2110 × 1040 × 1400 mm
Gross Weight 280 kg
