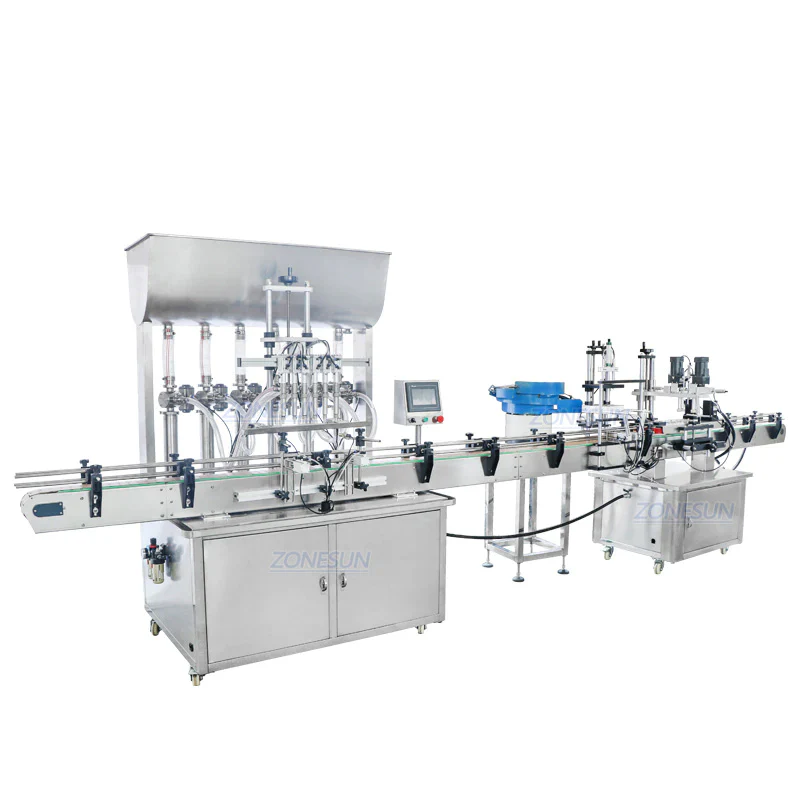

ZONESUN ZS-FAL180AP Automatic Paste Filling and Capping Line for Thick Liquids
This automatic production line is designed for filling and capping thick liquids and pastes such as honey, hand sanitizer, laundry detergent, and machine oil. It integrates a filling machine, cap feeder, capping machine, and optional labeling machine to streamline the entire packaging process. Each unit can operate independently or as part of a complete line. With adjustable filling volumes, high-speed operation, and precise control, it’s ideal for small to medium-scale production in food, cosmetic, chemical, and household product industries.
Filling Machine Specifications
| Model | ZS-YT2T-2P | ZS-YT4T-4P | ZS-YT6T-6P | ZS-YT8T-8P |
|---|---|---|---|---|
| Voltage | 110/220V 50–60Hz | 110/220V 50–60Hz | 110/220V 50–60Hz 800W | 110/220V 50–60Hz |
| Filling Range | 5–100ml / 10–300ml / 50–500ml / 100–1000ml / 500–3000ml / 1000–5000ml | |||
| Working Speed | 10–40 bottles/min | 20–50 bottles/min | 30–70 bottles/min | 40–80 bottles/min |
| Filling Accuracy | ±1% | ±1% | ±1% | ±1% |
| Conveyor Size | About 1990100mm (LW) for all models | |||
| Size of Air Compressor Connector | φ10mm | φ10mm | φ10mm | φ10mm |
| Package Weight | 220kg | 250kg | 300kg | 360kg |
| Package Size | 200120230cm | 200120230cm | 250130230cm | 250130230cm |
Machine Model ZS-XG440
Working Voltage AC220V / 110V 50–60Hz
Bottle Height 50–350mm
Bottle Caps Diameter 20–50mm
Working Speed 0–40 bottles/min (depending on bottle and caps)
Working Pressure 0.4–0.6 MPa
Conveyor Size 100mm(W) × 1950mm(L)
Package Size About 2000 × 820 × 1800mm
Package Weight About 380kg
Original: $14,748.99
-70%$14,748.99
$4,424.70Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This automatic production line is designed for filling and capping thick liquids and pastes such as honey, hand sanitizer, laundry detergent, and machine oil. It integrates a filling machine, cap feeder, capping machine, and optional labeling machine to streamline the entire packaging process. Each unit can operate independently or as part of a complete line. With adjustable filling volumes, high-speed operation, and precise control, it’s ideal for small to medium-scale production in food, cosmetic, chemical, and household product industries.
Filling Machine Specifications
| Model | ZS-YT2T-2P | ZS-YT4T-4P | ZS-YT6T-6P | ZS-YT8T-8P |
|---|---|---|---|---|
| Voltage | 110/220V 50–60Hz | 110/220V 50–60Hz | 110/220V 50–60Hz 800W | 110/220V 50–60Hz |
| Filling Range | 5–100ml / 10–300ml / 50–500ml / 100–1000ml / 500–3000ml / 1000–5000ml | |||
| Working Speed | 10–40 bottles/min | 20–50 bottles/min | 30–70 bottles/min | 40–80 bottles/min |
| Filling Accuracy | ±1% | ±1% | ±1% | ±1% |
| Conveyor Size | About 1990100mm (LW) for all models | |||
| Size of Air Compressor Connector | φ10mm | φ10mm | φ10mm | φ10mm |
| Package Weight | 220kg | 250kg | 300kg | 360kg |
| Package Size | 200120230cm | 200120230cm | 250130230cm | 250130230cm |
Machine Model ZS-XG440
Working Voltage AC220V / 110V 50–60Hz
Bottle Height 50–350mm
Bottle Caps Diameter 20–50mm
Working Speed 0–40 bottles/min (depending on bottle and caps)
Working Pressure 0.4–0.6 MPa
Conveyor Size 100mm(W) × 1950mm(L)
Package Size About 2000 × 820 × 1800mm
Package Weight About 380kg
