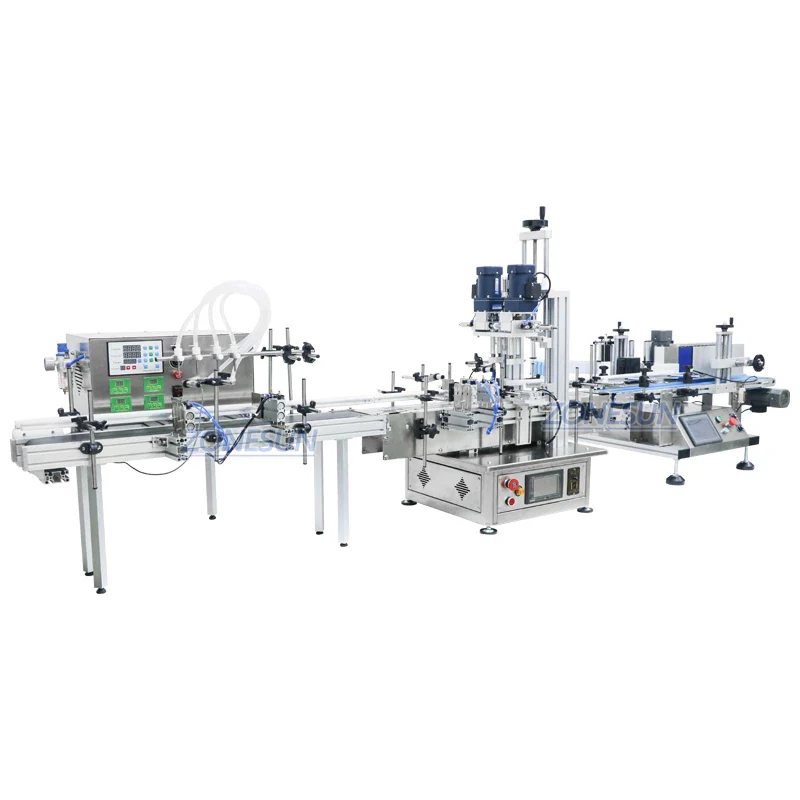

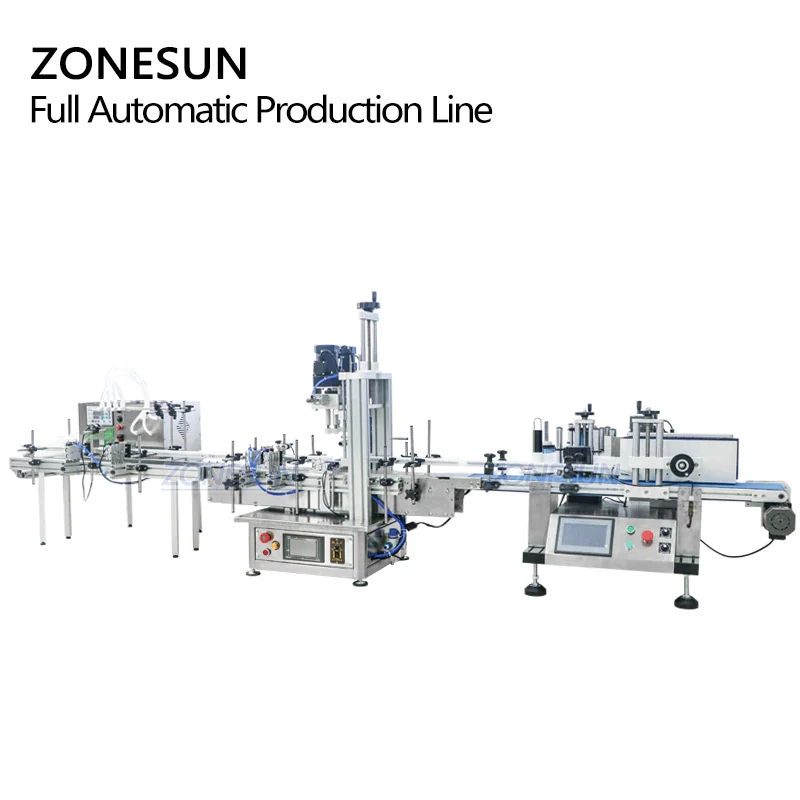

ZONESUN ZS-FAL180 Tabletop Liquid Filling Capping Labeling Line
The ZONESUN ZS-FAL180 is a compact, automated production line designed for small-scale liquid packaging. It integrates filling, capping, and labeling functions to streamline your workflow and boost efficiency. Ideal for food, beverage, cosmetics, daily chemical, and pharmaceutical industries, this desktop system saves valuable workspace while delivering professional results. Customizable to suit your bottle types, cap styles, and label formats, it’s the perfect solution for growing businesses seeking automation without sacrificing flexibility.
Parameter
Filling Machine
Power Supply Voltage 110/220V 50–60Hz
Power 250W
Maximum Flow Velocity 4000ml/min (per nozzle, based on water)
Working Speed 1500–3000 bottles/hour (depends on bottle size and liquid type)
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤ ±1% (for water)
Diameter of Filling Nozzle 6mm / 8mm
Delay Range 0.01–999.9 seconds
Count Range 1–99,999 times
Package Size 1110 × 650 × 420 mm
Gross Weight 46.5 kg
Filling Volume 3–1000ml (220V) / 3–500ml (110V recommended due to lower power capacity)
Air Compressor Connector Size Outer Diameter 8mm
Power Supply Voltage 110/220V 50–60Hz
Power 250W
Maximum Flow Velocity 4000ml/min (per nozzle, based on water)
Working Speed 1500–3000 bottles/hour (depends on bottle size and liquid type)
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤ ±1% (for water)
Diameter of Filling Nozzle 6mm / 8mm
Delay Range 0.01–999.9 seconds
Count Range 1–99,999 times
Package Size 1110 × 650 × 420 mm
Gross Weight 46.5 kg
Filling Volume 3–1000ml (220V) / 3–500ml (110V recommended due to lower power capacity)
Air Compressor Connector Size Outer Diameter 8mm
Capping Machine
Bottle Height 60–270 mm
Bottle Cap Diameter 18–70 mm
Working Speed 20–40 bottles/min (varies by bottle and cap type)
Working Voltage AC 220V / 110V, 50–60 Hz
Working Pressure 0.4–0.6 MPa
Machine Size 1120 × 580 × 1110 mm
Conveyor Length 1117 mm
Package Weight 97.5 kg
Package Size 1160 × 610 × 1140 mm
Air Compressor Connector Size Outer Diameter 8 mm
Bottle Height 60–270 mm
Bottle Cap Diameter 18–70 mm
Working Speed 20–40 bottles/min (varies by bottle and cap type)
Working Voltage AC 220V / 110V, 50–60 Hz
Working Pressure 0.4–0.6 MPa
Machine Size 1120 × 580 × 1110 mm
Conveyor Length 1117 mm
Package Weight 97.5 kg
Package Size 1160 × 610 × 1140 mm
Air Compressor Connector Size Outer Diameter 8 mm
Labeling Machine
Model ZS-TB150
Machine Size 127 × 100 × 78 cm (L × W × H)
Power 220V / 50Hz
Package Weight 120 kg / 125 kg (with date coder)
Packing Size 131 × 80.5 × 78 cm
Labeling Accuracy ±1 mm (excluding product and label errors)
Labeling Speed 25–50 pieces/min
Applicable Product Size Diameter: φ30–120 mm / Height: 25–350 mm
Applicable Label Size Length: 25–300 mm / Width: 15–140 mm
Model ZS-TB150
Machine Size 127 × 100 × 78 cm (L × W × H)
Power 220V / 50Hz
Package Weight 120 kg / 125 kg (with date coder)
Packing Size 131 × 80.5 × 78 cm
Labeling Accuracy ±1 mm (excluding product and label errors)
Labeling Speed 25–50 pieces/min
Applicable Product Size Diameter: φ30–120 mm / Height: 25–350 mm
Applicable Label Size Length: 25–300 mm / Width: 15–140 mm
Select Size
Select Voltage
From $2,099.98
Original: $6,999.93
-70%ZONESUN ZS-FAL180 Tabletop Liquid Filling Capping Labeling Line—
$6,999.93
$2,099.98Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The ZONESUN ZS-FAL180 is a compact, automated production line designed for small-scale liquid packaging. It integrates filling, capping, and labeling functions to streamline your workflow and boost efficiency. Ideal for food, beverage, cosmetics, daily chemical, and pharmaceutical industries, this desktop system saves valuable workspace while delivering professional results. Customizable to suit your bottle types, cap styles, and label formats, it’s the perfect solution for growing businesses seeking automation without sacrificing flexibility.
Parameter
Filling Machine
Power Supply Voltage 110/220V 50–60Hz
Power 250W
Maximum Flow Velocity 4000ml/min (per nozzle, based on water)
Working Speed 1500–3000 bottles/hour (depends on bottle size and liquid type)
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤ ±1% (for water)
Diameter of Filling Nozzle 6mm / 8mm
Delay Range 0.01–999.9 seconds
Count Range 1–99,999 times
Package Size 1110 × 650 × 420 mm
Gross Weight 46.5 kg
Filling Volume 3–1000ml (220V) / 3–500ml (110V recommended due to lower power capacity)
Air Compressor Connector Size Outer Diameter 8mm
Power Supply Voltage 110/220V 50–60Hz
Power 250W
Maximum Flow Velocity 4000ml/min (per nozzle, based on water)
Working Speed 1500–3000 bottles/hour (depends on bottle size and liquid type)
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤ ±1% (for water)
Diameter of Filling Nozzle 6mm / 8mm
Delay Range 0.01–999.9 seconds
Count Range 1–99,999 times
Package Size 1110 × 650 × 420 mm
Gross Weight 46.5 kg
Filling Volume 3–1000ml (220V) / 3–500ml (110V recommended due to lower power capacity)
Air Compressor Connector Size Outer Diameter 8mm
Capping Machine
Bottle Height 60–270 mm
Bottle Cap Diameter 18–70 mm
Working Speed 20–40 bottles/min (varies by bottle and cap type)
Working Voltage AC 220V / 110V, 50–60 Hz
Working Pressure 0.4–0.6 MPa
Machine Size 1120 × 580 × 1110 mm
Conveyor Length 1117 mm
Package Weight 97.5 kg
Package Size 1160 × 610 × 1140 mm
Air Compressor Connector Size Outer Diameter 8 mm
Bottle Height 60–270 mm
Bottle Cap Diameter 18–70 mm
Working Speed 20–40 bottles/min (varies by bottle and cap type)
Working Voltage AC 220V / 110V, 50–60 Hz
Working Pressure 0.4–0.6 MPa
Machine Size 1120 × 580 × 1110 mm
Conveyor Length 1117 mm
Package Weight 97.5 kg
Package Size 1160 × 610 × 1140 mm
Air Compressor Connector Size Outer Diameter 8 mm
Labeling Machine
Model ZS-TB150
Machine Size 127 × 100 × 78 cm (L × W × H)
Power 220V / 50Hz
Package Weight 120 kg / 125 kg (with date coder)
Packing Size 131 × 80.5 × 78 cm
Labeling Accuracy ±1 mm (excluding product and label errors)
Labeling Speed 25–50 pieces/min
Applicable Product Size Diameter: φ30–120 mm / Height: 25–350 mm
Applicable Label Size Length: 25–300 mm / Width: 15–140 mm
Model ZS-TB150
Machine Size 127 × 100 × 78 cm (L × W × H)
Power 220V / 50Hz
Package Weight 120 kg / 125 kg (with date coder)
Packing Size 131 × 80.5 × 78 cm
Labeling Accuracy ±1 mm (excluding product and label errors)
Labeling Speed 25–50 pieces/min
Applicable Product Size Diameter: φ30–120 mm / Height: 25–350 mm
Applicable Label Size Length: 25–300 mm / Width: 15–140 mm
