ZONESUN ZS-FAL180P2 Automatic Liquid Filling Capping Labeling Line

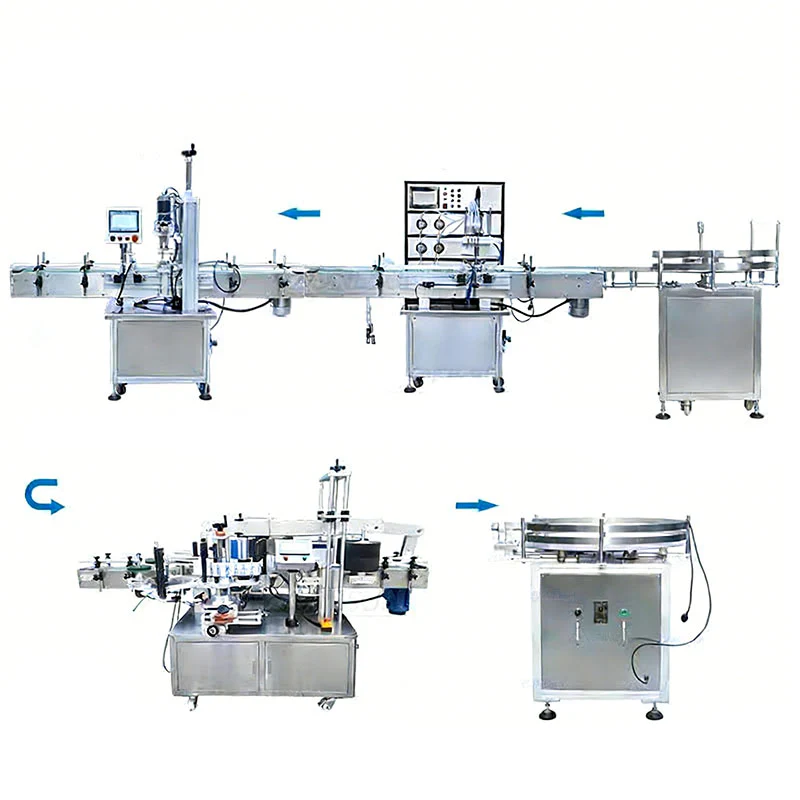

This fully automatic production line integrates bottle unscrambling, liquid filling, capping, and labeling into one streamlined system. Designed for high-efficiency operations, it reduces manual labor and boosts productivity across food, beverage, cosmetics, and pharmaceutical industries. Customizable to suit various container types and materials, this machine ensures precise filling, secure sealing, and professional labeling for round bottles. Ideal for businesses seeking scalable automation and consistent output quality.
Parameter

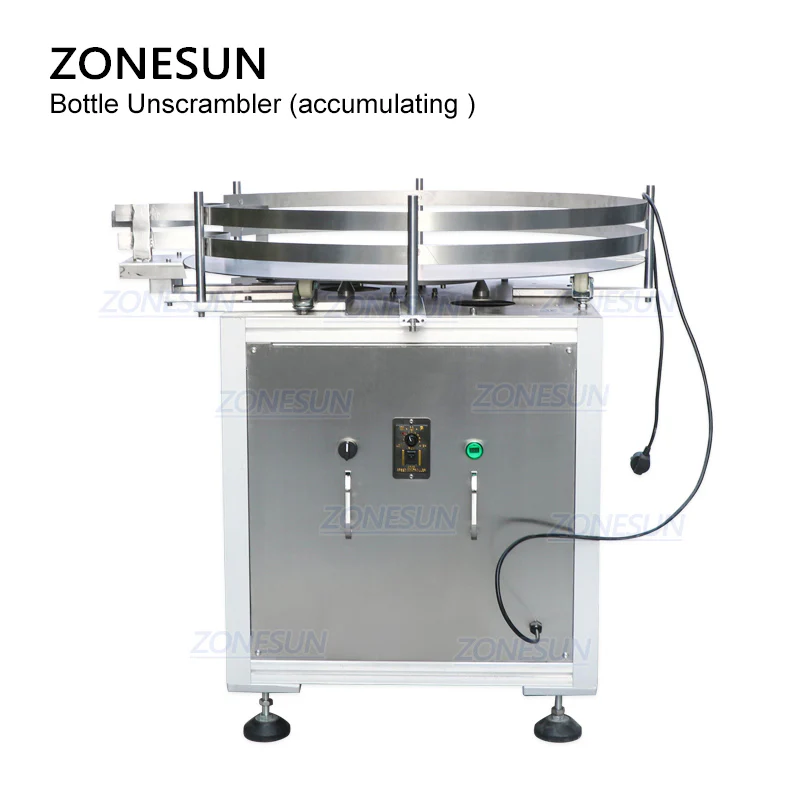

ZONESUN Bottle Unscrambler Specifications
Model 800 / 1000
Turntable Diameter 80 cm / 100 cm
Suitable Bottle Diameter 20–100 mm
Suitable Bottle Height 30–120 mm
Working Speed 40–60 bottles/min (depends on bottle size)
Motor Power 0.2 KW
Power Supply 220V / 50–60 Hz
Net Weight 109.5 kg / 135 kg
Package Size 115 × 100 × 132 cm / 135 × 131.5 × 123.5 cm
Gross Weight 155 kg / 180 kg

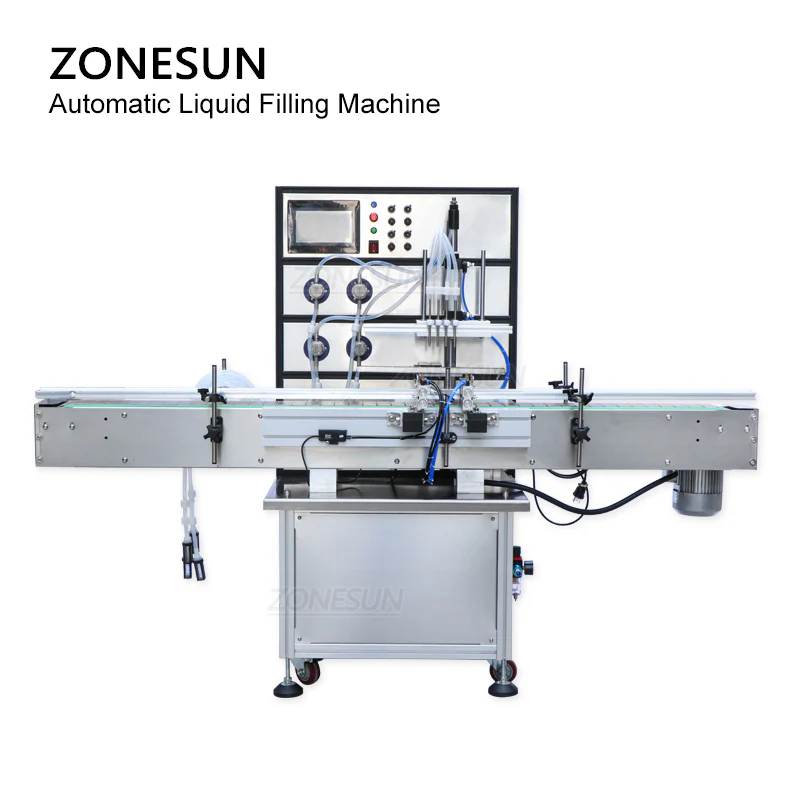

Full Automatic Filling Machine Specifications
Container Size Φ20–160 mm / Height 30–300 mm
Max Flow Rate 3000 ml/min, 5500 ml/min, 5500 ml/min, 7500 ml/min
Pump Material Plastic, 304 Stainless Steel, 316 Stainless Steel
Filling Accuracy ≤100 ml: ±1 ml / >100 ml: ≤ ±1% (based on water)
Filling Speed 20–40 pcs/min, 20–50 pcs/min, 25–60 pcs/min (depends on bottle & liquid)
Power Supply 220V–50Hz / 110V–60Hz
Total Machine Power 2 KW
Packing Weight 150 kg
Packing Size 2000 × 820 × 1580 mm
Air Compressor Connector Size Outer Diameter 8 mm

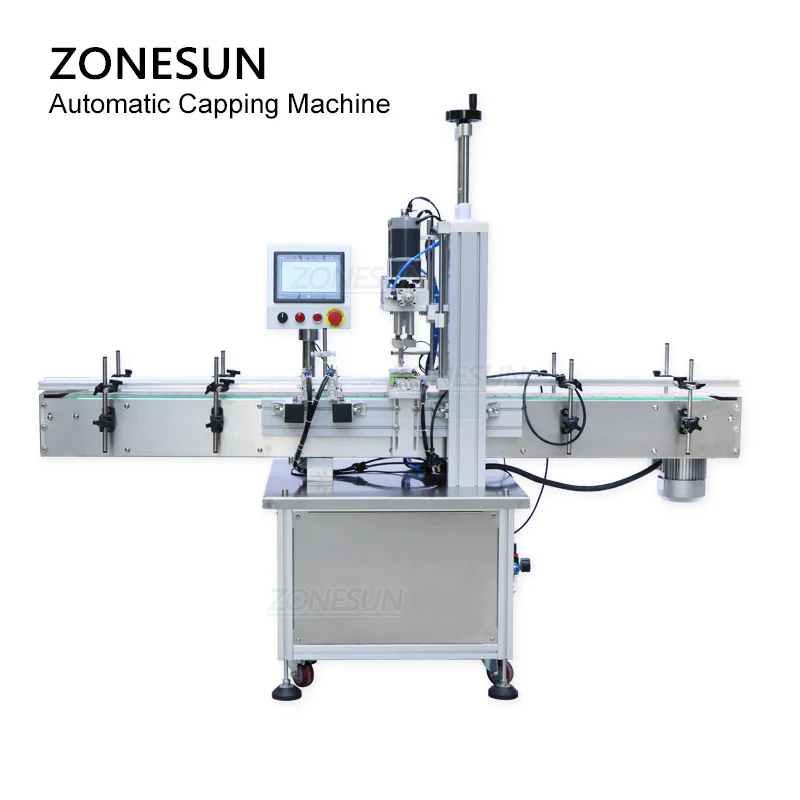

ZONESUN Full Automatic Capping Machine Specifications
Bottle Height 30–300 mm
Bottle Diameter 18–70 mm
Working Speed 20–60 bottles/min (depends on bottle and cap size/shape)
Working Voltage AC 220V / 110V, 50–60 Hz
Working Pressure 0.4–0.6 MPa
Machine Dimensions 1930 × 740 × 1600 mm
Package Size 2000 × 820 × 1760 mm
Net Weight 113 kg
Gross Weight 192.5 kg
Air Compressor Connector Size Outer Diameter 8 mm

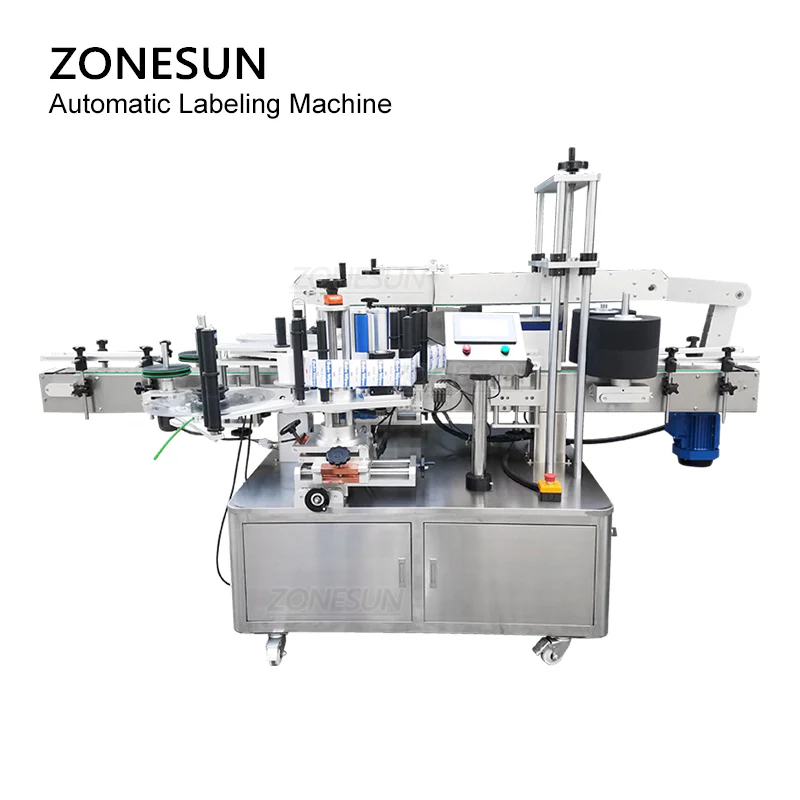

Full Automatic Labeling Machine Specifications
Labeling Capacity 60–350 pcs/min (depends on bottle size)
Labeling Material Thickness 20–120 mm
Labeling Material Height 30–350 mm
Label Size Length: 25–300 mm / Height: 15–200 mm
Roll Inner Diameter Φ76 mm
Roll Outer Diameter Φ350 mm
Machine Dimensions 2800 × 1650 × 1500 mm
Power Supply AC 220V, 50/60 Hz, 1500W
Packing Size 2850 × 1300 × 1900 mm
Machine Weight 650 kg
Original: $21,150.00
-70%$21,150.00
$6,345.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This fully automatic production line integrates bottle unscrambling, liquid filling, capping, and labeling into one streamlined system. Designed for high-efficiency operations, it reduces manual labor and boosts productivity across food, beverage, cosmetics, and pharmaceutical industries. Customizable to suit various container types and materials, this machine ensures precise filling, secure sealing, and professional labeling for round bottles. Ideal for businesses seeking scalable automation and consistent output quality.
Parameter
ZONESUN Bottle Unscrambler Specifications
Model 800 / 1000
Turntable Diameter 80 cm / 100 cm
Suitable Bottle Diameter 20–100 mm
Suitable Bottle Height 30–120 mm
Working Speed 40–60 bottles/min (depends on bottle size)
Motor Power 0.2 KW
Power Supply 220V / 50–60 Hz
Net Weight 109.5 kg / 135 kg
Package Size 115 × 100 × 132 cm / 135 × 131.5 × 123.5 cm
Gross Weight 155 kg / 180 kg
Full Automatic Filling Machine Specifications
Container Size Φ20–160 mm / Height 30–300 mm
Max Flow Rate 3000 ml/min, 5500 ml/min, 5500 ml/min, 7500 ml/min
Pump Material Plastic, 304 Stainless Steel, 316 Stainless Steel
Filling Accuracy ≤100 ml: ±1 ml / >100 ml: ≤ ±1% (based on water)
Filling Speed 20–40 pcs/min, 20–50 pcs/min, 25–60 pcs/min (depends on bottle & liquid)
Power Supply 220V–50Hz / 110V–60Hz
Total Machine Power 2 KW
Packing Weight 150 kg
Packing Size 2000 × 820 × 1580 mm
Air Compressor Connector Size Outer Diameter 8 mm
ZONESUN Full Automatic Capping Machine Specifications
Bottle Height 30–300 mm
Bottle Diameter 18–70 mm
Working Speed 20–60 bottles/min (depends on bottle and cap size/shape)
Working Voltage AC 220V / 110V, 50–60 Hz
Working Pressure 0.4–0.6 MPa
Machine Dimensions 1930 × 740 × 1600 mm
Package Size 2000 × 820 × 1760 mm
Net Weight 113 kg
Gross Weight 192.5 kg
Air Compressor Connector Size Outer Diameter 8 mm
Full Automatic Labeling Machine Specifications
Labeling Capacity 60–350 pcs/min (depends on bottle size)
Labeling Material Thickness 20–120 mm
Labeling Material Height 30–350 mm
Label Size Length: 25–300 mm / Height: 15–200 mm
Roll Inner Diameter Φ76 mm
Roll Outer Diameter Φ350 mm
Machine Dimensions 2800 × 1650 × 1500 mm
Power Supply AC 220V, 50/60 Hz, 1500W
Packing Size 2850 × 1300 × 1900 mm
Machine Weight 650 kg
