ZONESUN ZS-FAL180C Tabletop Liquid Filling Capping Labeling Machine

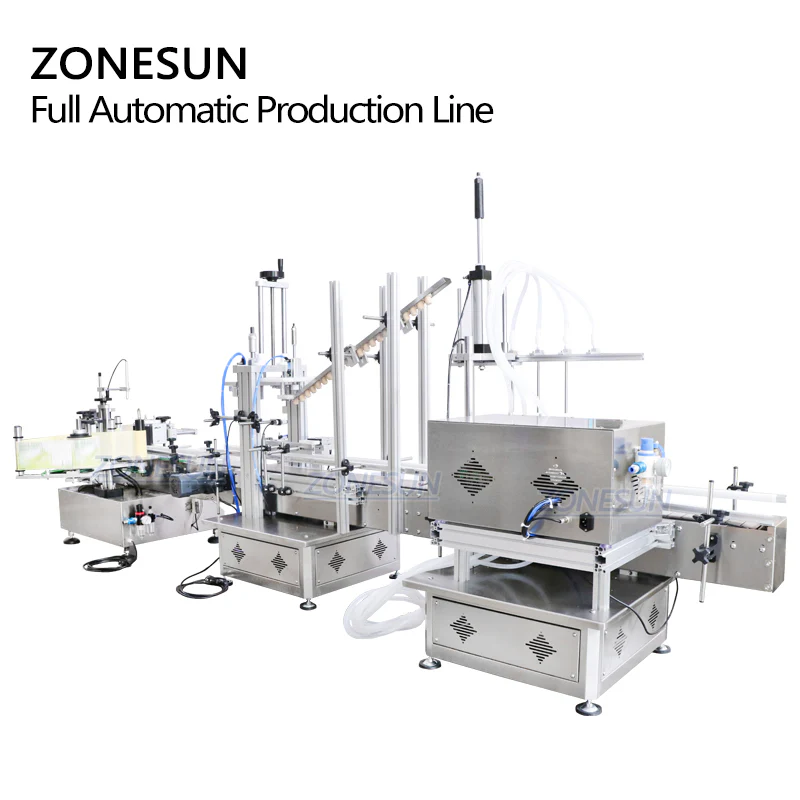

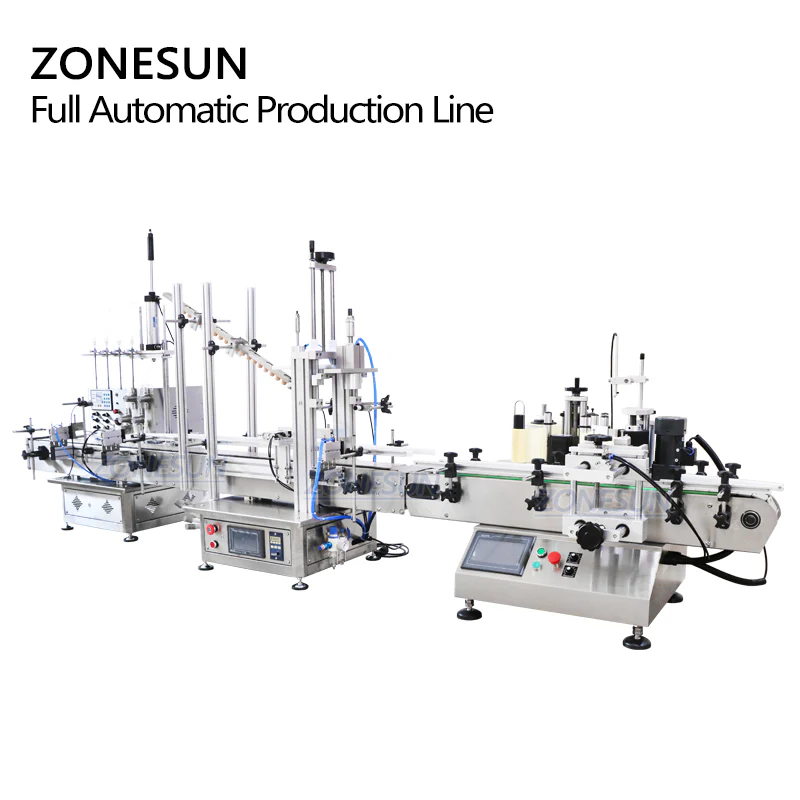

ZS-FAL180C is a compact tabletop automatic production line that integrates a magnetic pump liquid filling machine, cork feeder, cork pressing unit, and round bottle labeling machine. It supports precise filling of juice, essential oils, perfumes, wine, and other liquids. With adjustable parameters and high-speed operation, it’s ideal for small to medium-scale production in pharmaceutical, beverage, and cosmetic industries. The system ensures consistent performance, space efficiency, and easy customization for various bottle sizes and product types.
Parameter Value

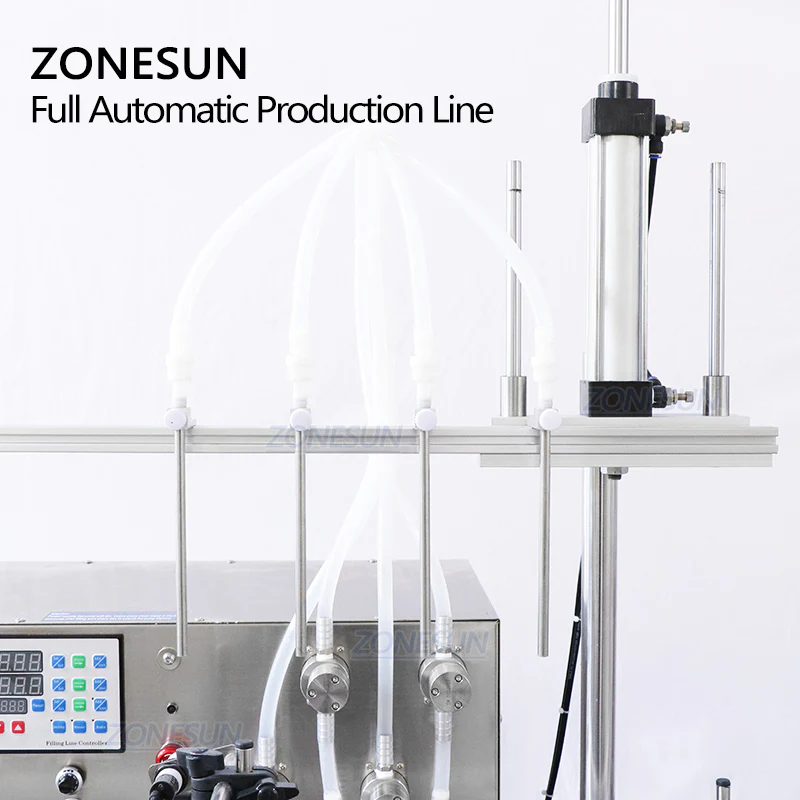

Machine model ZS-DTMP4AL Filling Machine
Power supply 110/220V 50-60HZ
Maximum flow velocity 5500ml/min (Each nozzle and base on water)
Working speed 20-30 bottles/min
Air pressure 0.3-0.4MPa
Filling accuracy ≤±1% (For water)
Diameter of filling nozzle 6/8mm
Delay range 0.01-999.9s
Count range 1-99999 Times
Filling volume 3-1000ml
Size of air compressor connector OD 8mm
Bottle height < 220mm (Can be customized, max height 300mm)
Model ZS-YG08 Capping Machine
Work height 60-200mm (adjustable)
Capping speed 800-1000 bph
Drive Compressed air only
Air pressure request 0.35-0.4MPa
Machine size 220*275*600mm
Package size 340*280*640mm
Net weight/Gross weight 13.5kg/15.5kg
Parameter

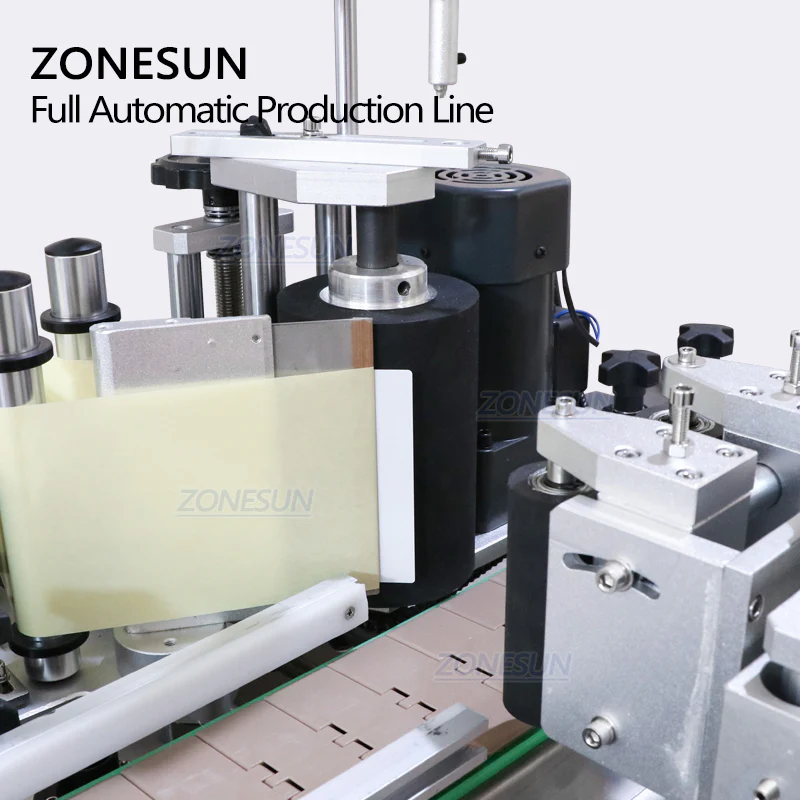

Machine Model ZS-TB500 Labeling Machine
Voltage 110V-60HZ / 220V-50HZ
Working speed About 20-50 bottles/min
Suitable labeling size 15-140mm (W) X 25-300mm (L)
Roll inside diameter (mm) φ76mm
Roll outside diameter (mm) φ350mm
Suitable bottle diameter ≤100mm
Package size About 1310*805*780mm
Package weight About 124kg
