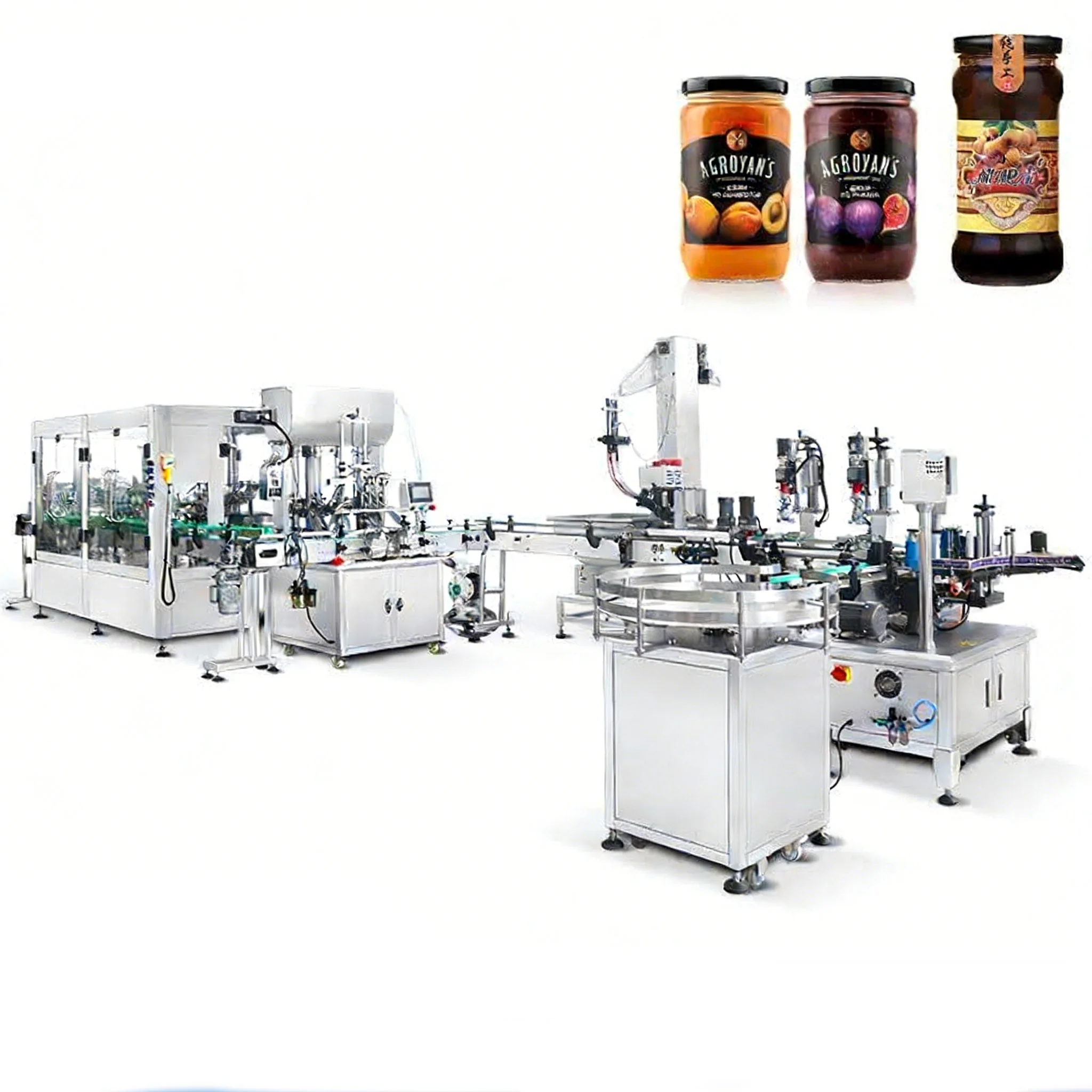

ZONESUN ZS-FALU3 Jam & Sauce Bottling Line with Filling, Capping, Labeling

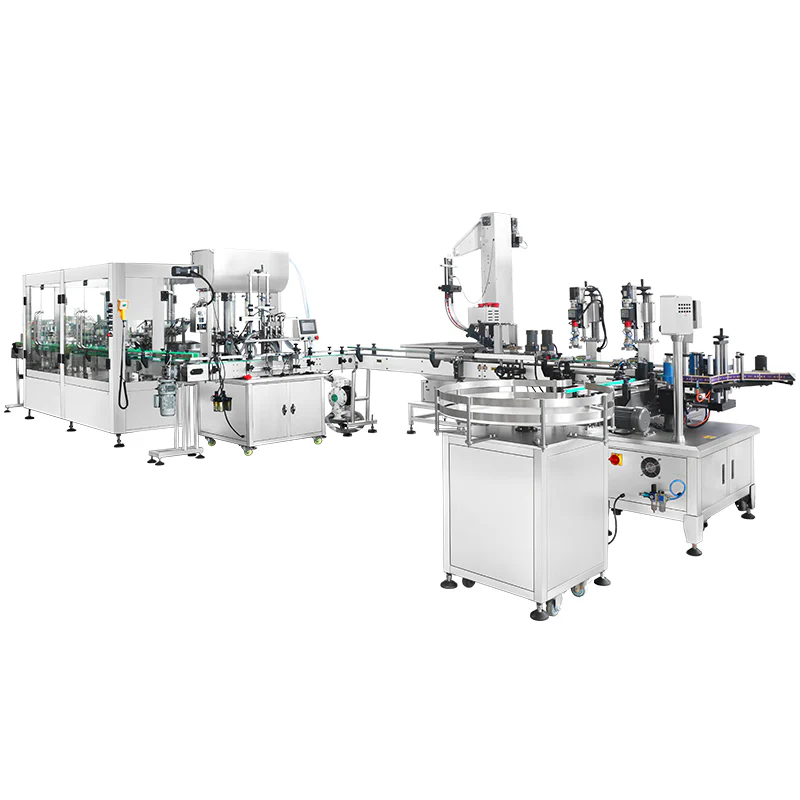

The ZS-FALU3 is a complete bottling solution for paste products like jams and sauces. It integrates unscrambling, rinsing, filling, capping, and labeling into one streamlined line, delivering consistent quality and high-speed performance. Ideal for food, cosmetic, and chemical industries, this system enhances productivity while maintaining precision and hygiene throughout the packaging process.
Technical Specifications

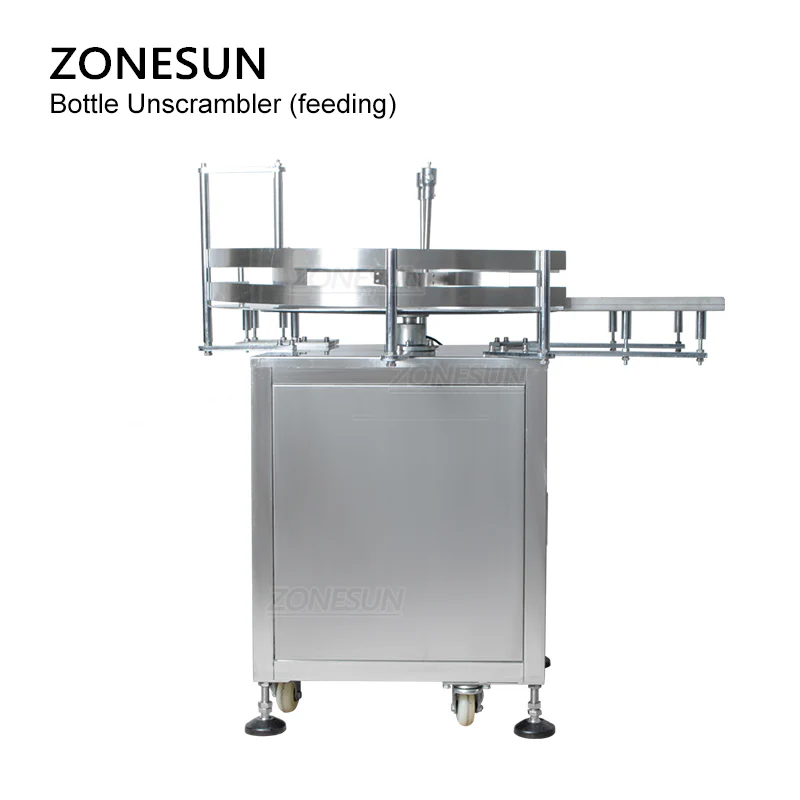

Item ZS-LP1000S bottle unscrambling machine
Turntable Diameter 1000mm
Suitable Bottle Diameter 20–100mm
Suitable Bottle Height 30–320mm
Working Speed 40–60 bottles/min (depends on bottle size)
Power Supply 220V / 110V, 50–60Hz, 200W
Package Size Approx. 1355 × 1315 × 1235mm
Net/Gross Weight Approx. 135kg / 180kg
Technical Specifications
Item ZS-WB12A bottle rinsing and drying machine
Voltage 110V / 220V
Nozzle Quantity 12 rinsing + 12 drying
Conveyor Size Approx. 5080mm × 90mm
Power 1.5kW
Working Speed Approx. 500–2000 bottles/hour
Machine Size Approx. 5080 × 1460 × 1930mm
Package Size Approx. 3410 × 1710 × 2100mm
Package Weight Approx. 650kg

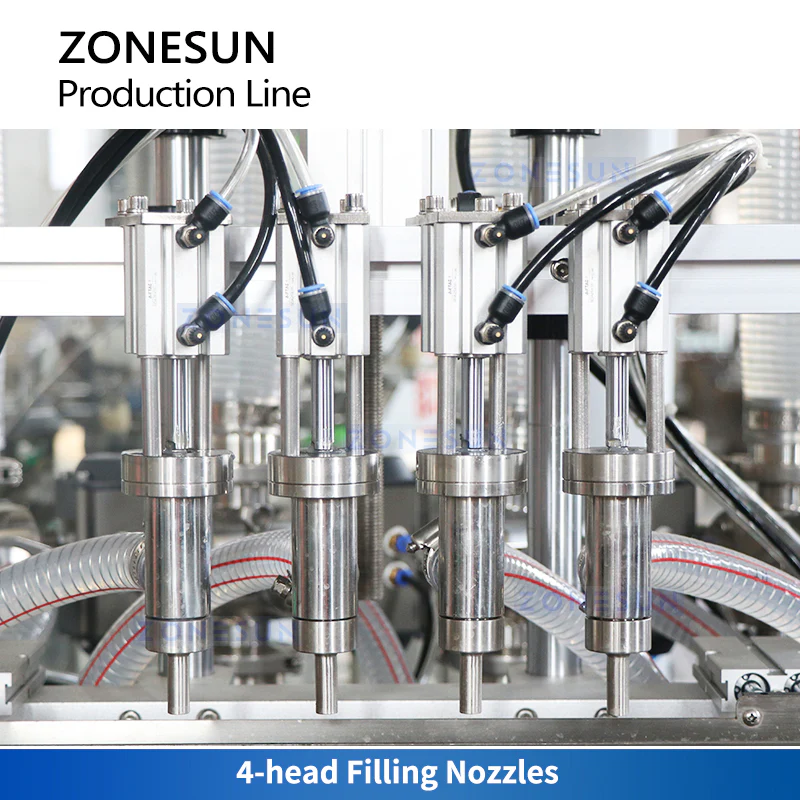

Item ZS-YT4T-4PM Filling Machine
Voltage 110V / 220V, 50–60Hz, 600W
Filling Range 5–100ml / 10–300ml / 50–500ml / 100–1000ml / 500–3000ml / 1000–5000ml
Working Speed 20–50 bottles/min (depends on bottle size)
Heating Temperature Approx. 0–300°C

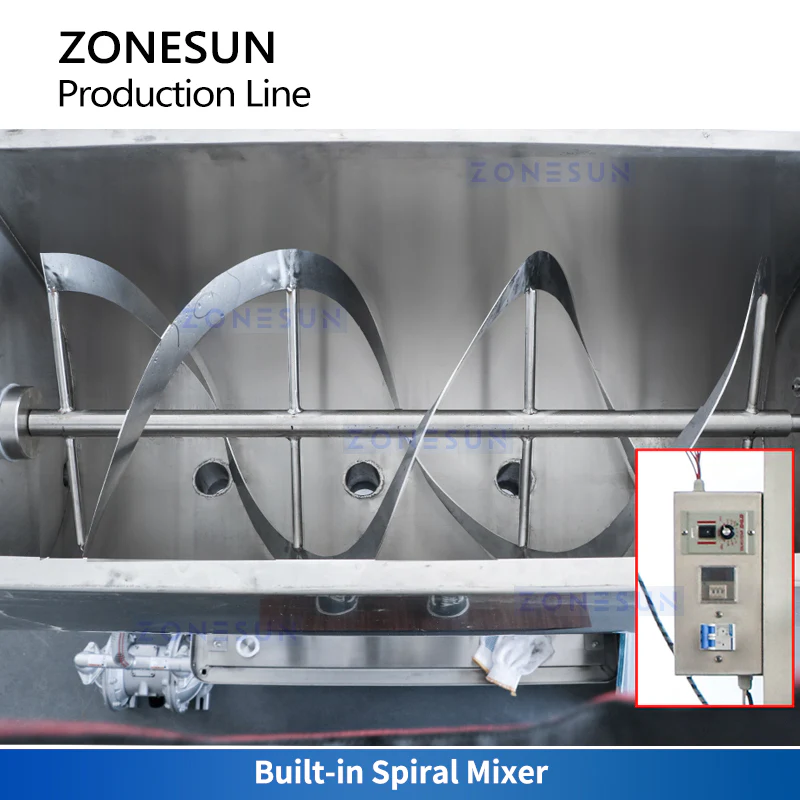

Mixing Speed Approx. 1200 rpm
Filling Accuracy ≤ ±1%
Air Pressure 0.5–0.7 MPa
Conveyor Size Approx. 2000 × 100mm (L × W)
Filling Nozzle Size φ10mm
Air Compressor Connector Size φ10mm
Machine Weight 329kg
Machine Dimensions 975 × 1020 × 2010mm
Package Weight 392kg
Package Dimensions 1660 × 1130 × 2130mm

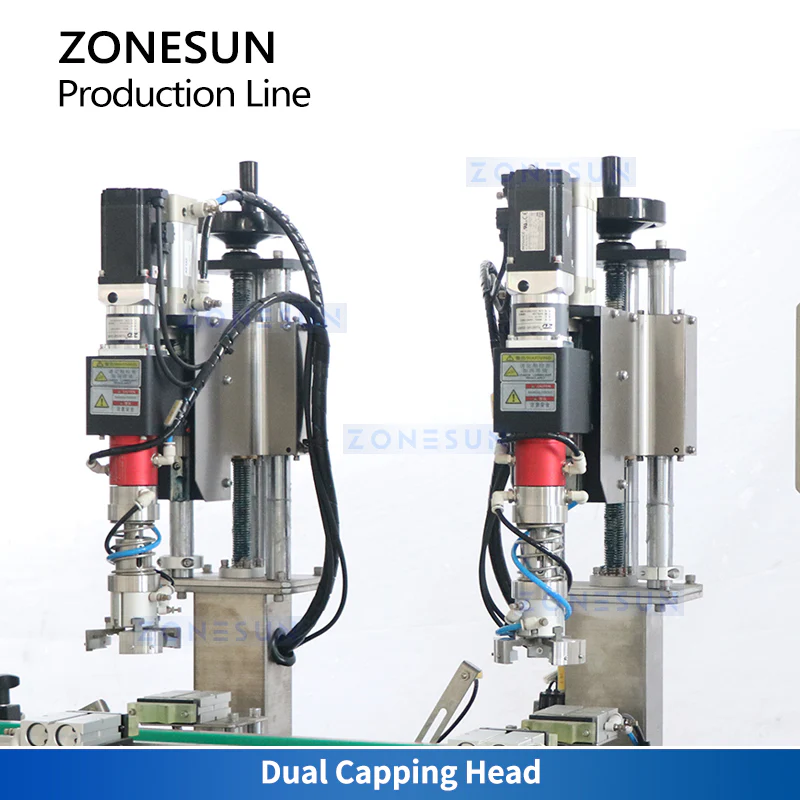

Item ZS-XG440T2 Capping Machine
Power Voltage 110V / 220V, 50–60Hz, 2kW
Suitable Cap Size Outer Diameter 30–80mm (customizable)
Air Pressure 0.7 MPa
Working Speed 30–40 bottles/min (depends on bottle & cap)
Package Size (Capping Unit) Approx. 2080 × 780 × 1730mm
Package Size (Feeding Unit) Approx. 2340 × 860 × 1380mm
Package Weight (Capping Unit) Approx. 355kg
Package Weight (Feeding Unit) Approx. 252kg

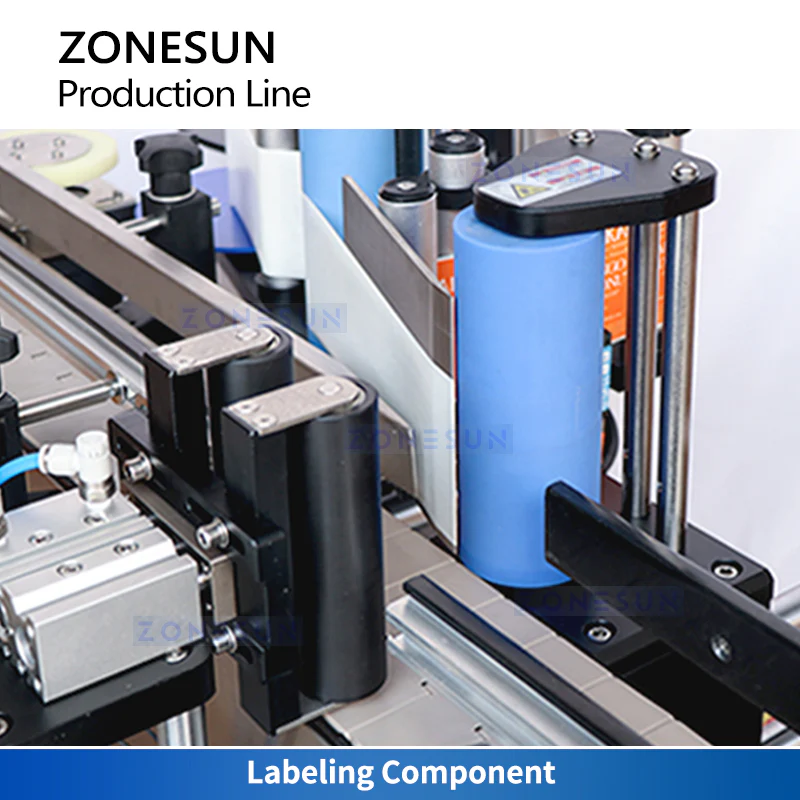

Item ZS-TB260R Labeling Machine
Power Supply AC 220V, 50/60Hz, 1000W
Labeling Capacity 25–50 bottles/min (depends on bottle size)
Labeling Accuracy ±1.0mm
Suitable Bottle Diameter Φ12–100mm
Label Size Length: 20–300mm, Height: 15–150mm (customizable)
Roll Inside Diameter Φ76mm
Roll Outside Diameter Φ350mm
Conveyor Size 112 × 2000mm
Machine Dimensions Approx. 2000 × 820 × 1380mm
Machine Weight Approx. 180kg
Packing Dimensions Approx. 2100 × 890 × 1520mm
Package Weight Approx. 250kg
